WAGO: Controller MODBUS TCP; Generation 4; 2 x ETHERNET (750-891)
WAGO: Controller MODBUS TCP; Generation 4; 2 x ETHERNET (750-891)




Controller Modbus TCP; Generation 4; 2 x ETHERNET; ECO,1.7 A, 24 VDC, DIN Rail, IP20
Price : $1,344.54

Quantity in Stock:4

Availability: Usually Ships in 3 to 5 Business Days
Order #: 750-891
Qty:

Description Specifications and Drawings


Controller MODBUS TCP; Generation 4; 2 x ETHERNET (750-891)

The WAGO 750-891 programmable Fieldbus Controller (PFC) combines the functionality of Modbus TCP-based Fieldbus Coupler, as the head station of the node assembly, with the functionality of a Programmable Logic Controller (PLC).

The 750-891 can be used for applications in machine and plant construction as well as in the process industry and building technology.

The two ETHERNET interfaces with the integrated switch enable a line topology to be set up without additional infrastructure elements, such as switches or hubs.

With the DIP switch the last byte of the IP address, as well as the assignment of the IP address (DHCP, BootP, firm setting) can be given.

In the controller, all input signals from the sensors are combined. After connecting the controller, the controller determines which I/O modules are on the node and creates a local process image from these. Analog and specialty module data is sent via words and/or bytes; digital data is grouped bit-by-bit.

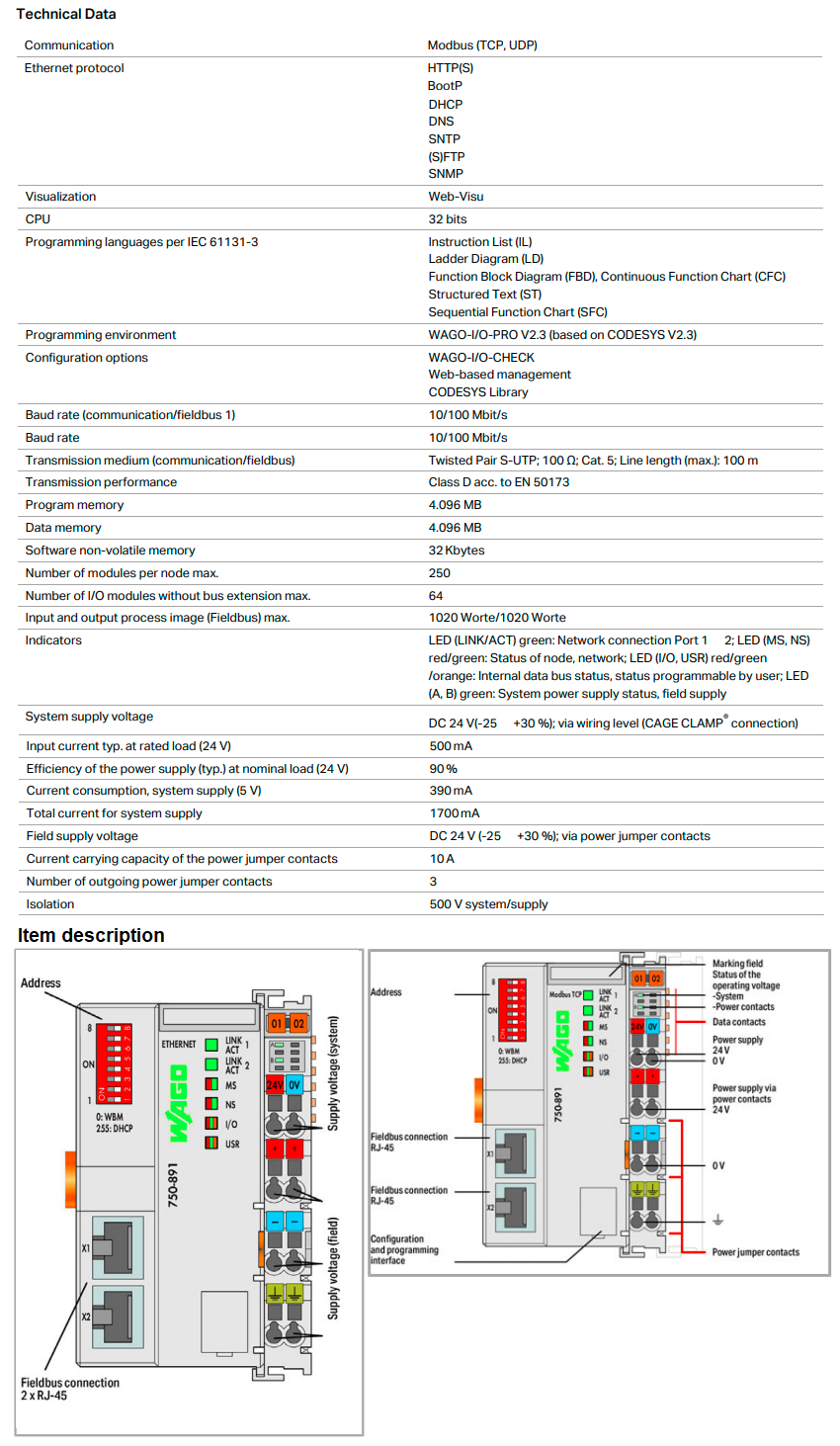

Technical data

Communication

Modbus (TCP, UDP)

ETHERNET protocols

HTTP(S),BootP, DHCP,DNS,SNTP,FTP(S),SNMP

Visualization

Web-Visu

CPU

32 bits

Programming languages per IEC 61131-3

Instruction List (IL),Ladder Diagram (LD)
Function Block Diagram (FBD)
Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)

Programming environment

WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

Configuration options

WAGO-I/O-CHECK, Web-Based Management
CODESYS Library

Baud rate (communication/fieldbus 1)

10/100 Mbit/s

Baud rate

10/100 Mbit/s

Transmission medium (communication/fieldbus)

Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length

Transmission performance

Class D per EN 50173

Program memory

4 MB

Data memory

4 MB

Non-volatile software memory

32kbyte

Number of modules per node (max.)

250

Number of modules without a bus extension (max.)

64

Input and output process image (fieldbus) max.

1020 words/1020 words

Indicators

LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply

Supply voltage (system)

24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)

Input current (typ.) at nominal load (24 V)

500mA

Power supply efficiency (typ.) at nominal load (24 V)

90%

Current consumption (5 V system supply)

390mA

Total current (system supply)

1,700mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts

Current carrying capacity (power jumper contacts)

10A

Number of outgoing power jumper contacts

3

Isolation

500 V system/field


Share your knowledge of this product. Be the first to write a review »
