WAGO: 8-channel digital output module,24 VDC,0.5 A (750-536)
WAGO: 8-channel digital output module,24 VDC,0.5 A (750-536)




8-channel digital output; 24 VDC; 0.5 A; Low-side switching
Price : $220.09

Quantity in Stock:49

Availability: Usually Ships in 3 to 5 Business Days
Order #: 750-536
Qty:

Description Specifications and Drawings


8-channel digital output module,24 VDC,0.5 A (750-536)
This digital output module features eight channels in a width of just 12 mm (0.47 inch).The module transmits control signals from an automation device to connected actuators. All outputs are short-circuit-protected. Field and system levels are electrically isolated.

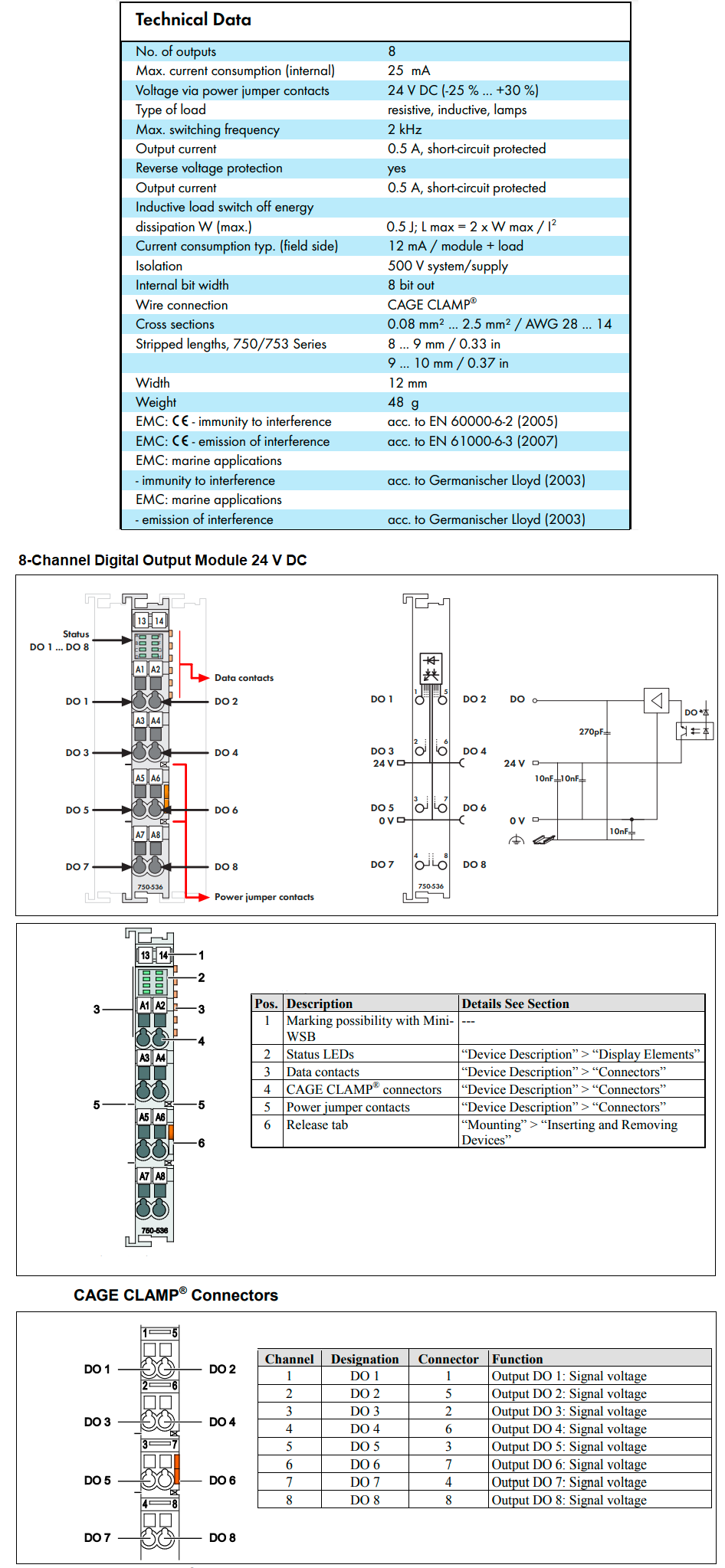

Technical data

Number of digital outputs

8

Total number of channels (module)

8

Signal type

Digital

Signal type (voltage)

24 VDC

Actuator connection

8 x (1-wire)

Output characteristic

Low-side switching

Output current per channel

0.5A

Output current

short-circuit-protected

Switching frequency (max.)

2 kHz

Load type

Resistive, inductive, lamp load

Reverse voltage protection

yes

Inductive load switch-off energy dissipation (max.)

0.5J

Output data width (internal) max.

8Bit

Supply voltage (system)

5 VDC; via data contacts

Current consumption (5 V system supply)

25mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)

Current consumption, field supply (module with no external load)

12mA

Isolation

500 V system/field

Indicators

LED (A-H) green: Status DO 1 … DO 8

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

WAGO IO SYSTEM
