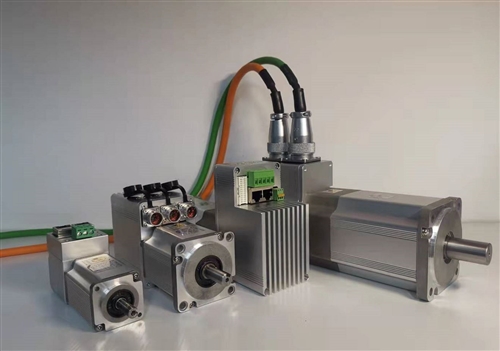

Integrated DC Brushless Servo Motor

Home > AMC China > Integrated DC Brushless Servo Motor

Golden Ding Line Series Integrated Motor Model and Data List

	Rated Power W	Rated Torque Nm	Rated Speed @48VDC input RPM	Flange Size mm	Power Supply Range	20-60VDC,with Hall and 4096 incremental magnet encoder					Shaft
					Operation Temperature	-25-75℃			-40-65℃
					IP Level	IP20		IP65	IP20	IP65
						Without STO	With STO
CANopen	100	0.32	3000	40	Without Brake	JDC-010N	JDC-S010N	JDC-010NIP65	JDCX-010N	JDCX-010NIP65	Round
					With Brake	JDC-010B	JDC-S010B	JDC-010BIP65	JDCX-010B	JDCX-010BIP65
	200	0.64		60	Without Brake	JDC-020N	JDC-S020N	JDC-020NIP65	JDCX-020N	JDCX-020NIP65	With Key
					With Brake	JDC-020B	JDC-S020B	JDC-020BIP65	JDCX-020B	JDCX-020BIP65
	400	1.30		60	Without Brake	JDC-040N	JDC-S040N	JDC-040NIP65	JDCX-040N	JDCX-040NIP65
					With Brake	JDC-040B	JDC-S040B	JDC-040BIP65	JDCX-040B	JDCX-040BIP65
	600	1.90		80	Without Brake	JDC-060N	JDC-S060N	JDC-060NIP65	JDCX-060N	JDCX-060NIP65
					With Brake	JDC-060B	JDC-S060B	JDC-060BIP65	JDCX-060B	JDCX-060BIP65
	750	2.40		80	Without Brake	JDC-075N	JDC-S075N	JDC-075NIP65	JDCX-075N	JDCX-075NIP65
					With Brake	JDC-075B	JDC-S075B	JDC-075BIP65	JDCX-075B	JDCX-075BIP65
RS485	100	0.32		40	Without Brake	JDR-010N		JDR-010NIP65	JDRX-010N	JDRX-010NIP65	Round
					With Brake	JDR-010B		JDR-010BIP65	JDRX-010B	JDRX-010BIP65
	200	0.64		60	Without Brake	JDR-020N		JDR-020NIP65	JDRX-020N	JDRX-020NIP65	With Key
					With Brake	JDR-020B		JDR-020BIP65	JDRX-020B	JDRX-020BIP65
	400	1.30		60	Without Brake	JDR-040N		JDR-040NIP65	JDRX-040N	JDRX-040NIP65
					With Brake	JDR-040B		JDR-040BIP65	JDRX-040B	JDRX-040BIP65
	600	1.90		80	Without Brake	JDR-060N		JDR-060NIP65	JDRX-060N	JDRX-060NIP65
					With Brake	JDR-060B		JDR-060BIP65	JDRX-060B	JDRX-060BIP65
	750	2.40		80	Without Brake	JDR-075N		JDR-075NIP65	JDRX-075N	JDRX-075NIP65
					With Brake	JDR-075B		JDR-075BIP65	JDRX-075B	JDRX-075BIP65
