WAGO: I/O MODULE 4 DIGITAL 0-5V (WAGO 750-515)
WAGO: I/O MODULE 4 DIGITAL 0-5V (WAGO 750-515)




4-channel relay output; AC 250 V; 2.0 A; Potential-free; 4 make contacts
Price : $271.64

Quantity in Stock:104

Availability: Usually Ships in 3 to 5 Business Days
Order #: 750-515
Qty:

Description Specifications and Drawings


I/O MODULE 4 DIGITAL 0-5V (WAGO 750-515)

WAGO 750-515 digital output module transmits control signals from the automation device to the connected actuators. The internal system voltage triggers the relay. The NO contacts are electrically isolated. The state of the relay is shown via LEDs.
The 750-515 Digital Output Module transmits binary control signals from the automation device to the connected actuators (e.g., solenoid valves, contactors, transmitters, relays or other electrical loads).The I/O module has 4 output channels, providing for direct connection of actuators equipment with protection classes II and III. The actuators can be wired to the CAGE CLAMP® connectors directly. An external potential of 250 VAC can be applied to relay contacts 13, 23, 33 and 43.The I/O module 750-515 can be used with all fieldbus couplers/controllers of the WAGO-I/O-SYSTEM 750.

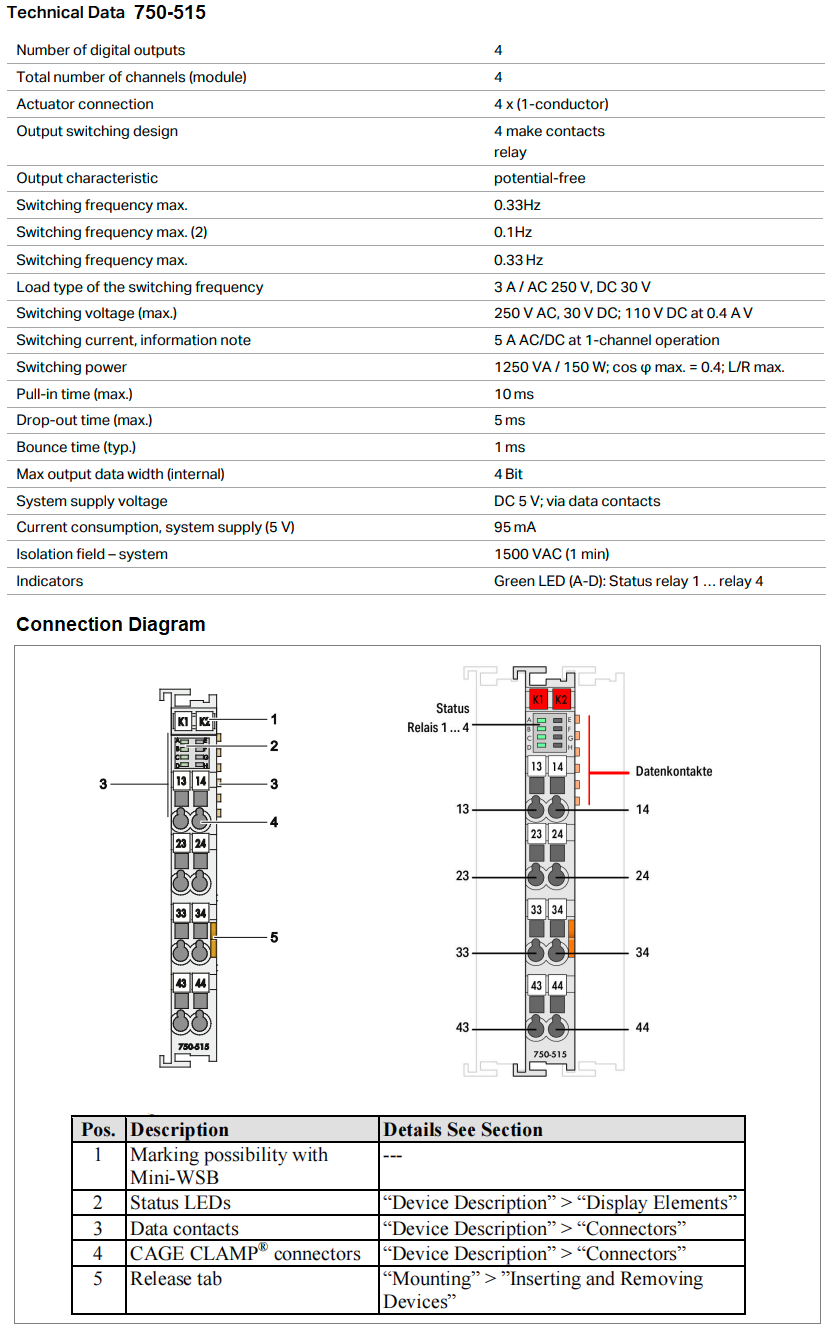

Technical data

Number of digital outputs

4

Total number of channels (module)

4

Signal type

Digital

Actuator connection

4 x (1-wire)

Output circuit design

4 make contacts
Relay

Output characteristic

potential-free

Switching frequency (max.)

0.33 Hz; 3 A / 250 VAC, 30 VDC

Switching frequency (max.) (2)

0.1 Hz; 5 A / 250 VAC, 30 VDC

Switching voltage (max.)

250 VAC; 30 VDC; 110 VDC at 0.4 A

Switching current (max.)

2A

Switching current (note)

5 A for single-channel use

Switching power

1250 VA / 150 W; cos ϕ max. = 0.4; L/R max. = 7 ms

Pull-in time (max.)

10ms

Drop-out time (max.)

5ms

Bounce time (typ.)

1ms

Electrical switching operations (min.) (at max. resistive load)

100 x 10³ switching operations

Mechanical switching operations (min.) (at max. resistive load)

20 x 10⁶ switching operations

Output data width (internal) max.

4Bit

Supply voltage (system)

5 VDC; via data contacts

Current consumption (5 V system supply)

95mA

Isolation

1500 V (system/field)

Indicators

LED (A-D) green: Status relay 1 … relay 4

WAGO IO SYSTEM
