WAGO: 8-channel digital input/output; 24 VDC; 0.5 A (750-1506)
WAGO: 8-channel digital input/output; 24 VDC; 0.5 A (750-1506)




8-Channel Digital Input and 8-Channel Digital Output Module 24 VDC, 0.5A High-side Switching
Price : $356.52

Quantity in Stock:28

Availability: Usually Ships in 3 to 5 Business Days
Order #: 750-1506
Qty:

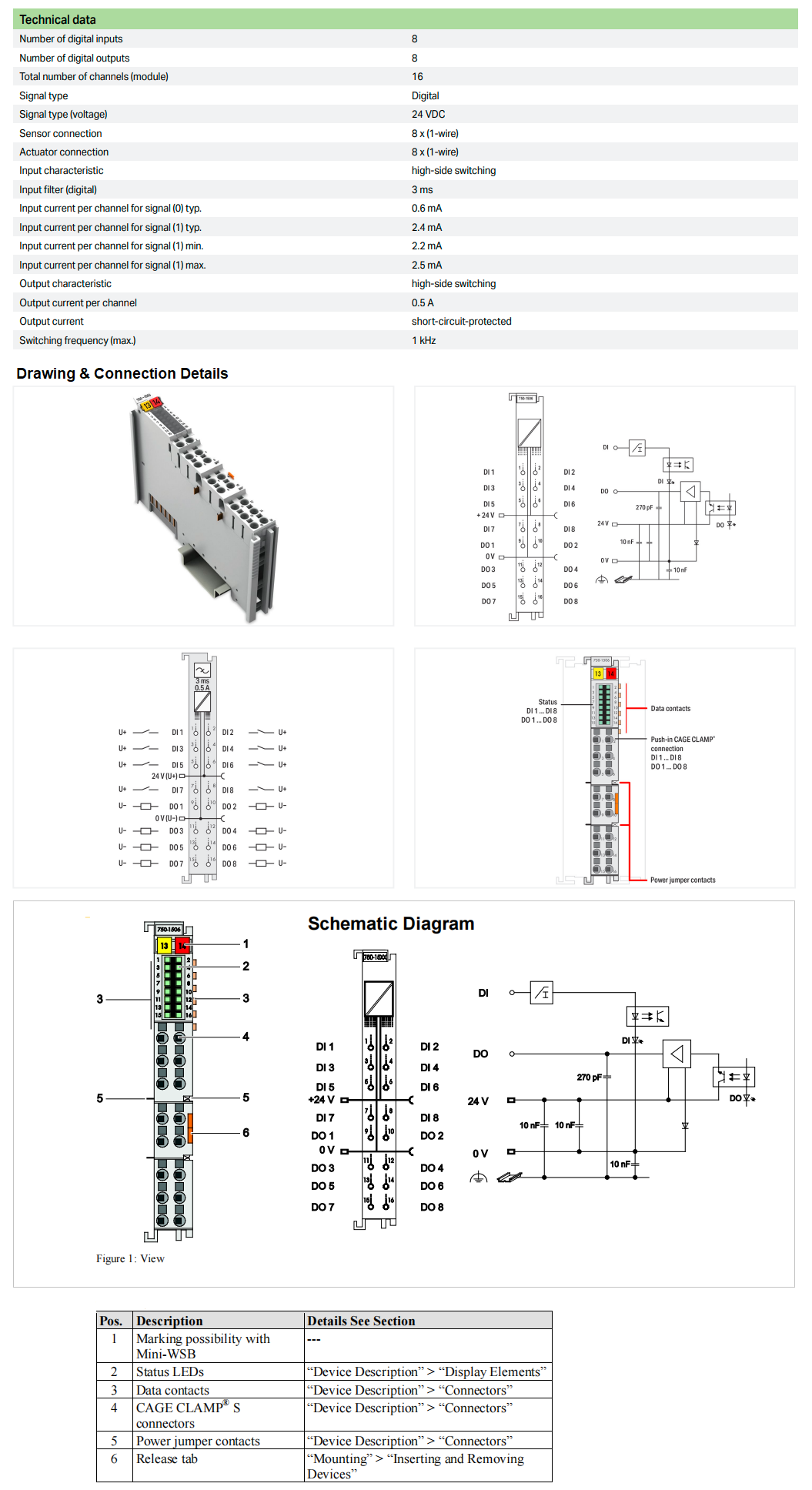

Description Specifications and Drawings


8-channel digital input/output; 24 VDC; 0.5 A (750-1506)

This digital input/output module features eight inputs and eight outputs in a width of just 12 mm (0.47 inch). It receives binary control signals from digital field devices and transmits them to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads).The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Technical data

Number of digital inputs

8

Number of digital outputs

8

Total number of channels (module)

16

Signal type

Digital
Voltage

Signal type (voltage)

24 VDC

Sensor connection

8 x (1-wire)

Actuator connection

8 x (1-wire)

Input characteristic

high-side switching

Input filter (digital)

3ms
3ms

Input current per channel for signal (0) typ.

0.6mA

Input current per channel for signal (1) typ.

2.4mA

Input current per channel for signal (1) min.

2.2mA

Input current per channel for signal (1) max.

2.5mA

Output characteristic

high-side switching

Output current per channel

0.5A

Output current

short-circuit-protected

Switching frequency (max.)

1 kHz

Load type

Resistive, inductive, lamp load

Voltage range for signal (0)

−3 … +5 VDC

Voltage range for signal (1)

15 … 30 VDC

Input data width (internal) max.

8Bit

Output data width (internal) max.

8Bit

Supply voltage (system)

5 VDC; via data contacts

Current consumption (5 V system supply)

30mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)

Current consumption, field supply (module with no external load)

16mA

Isolation

500 V system/field

WAGO IO SYSTEM
