WAGO: 2-channel analog input module, 0 - 10 VDC, Single-ended, 16 bits. (753-478)
WAGO: I/O MODULE 2 ANALOG 0-10V (753-478)




2-channel analog input, 0 - 10 VDC, Single-ended, 16 bits.
Price : $590.83

Quantity in Stock:50

Availability: Usually Ships in 3 to 5 Business Days
Order #: 753-478
Qty:

Description Specifications and Drawings


2-channel analog input module,0 - 10 VDC,Single-ended,16 bits.(753-478)

This analog input module processes standard 0–10 V signals. The input signal is electrically isolated and is transmitted with a resolution of 16 bits. The internal system supply powers the module. The input channels of the module have a common ground potential. The 24 V supply is derived from the power jumper contacts.
The analog input module receives signals with the standardized values 0-10V or ± 10V. The input signal is electrically isolated and will be transmitted with a resolution of 16 bits. The internal system voltage supply is used for the power supply of the module. The input channels of a module have one common ground potential. The 24V supply is derived from the power jumper contacts. The shield (screen) is directly connected to the DIN rail.

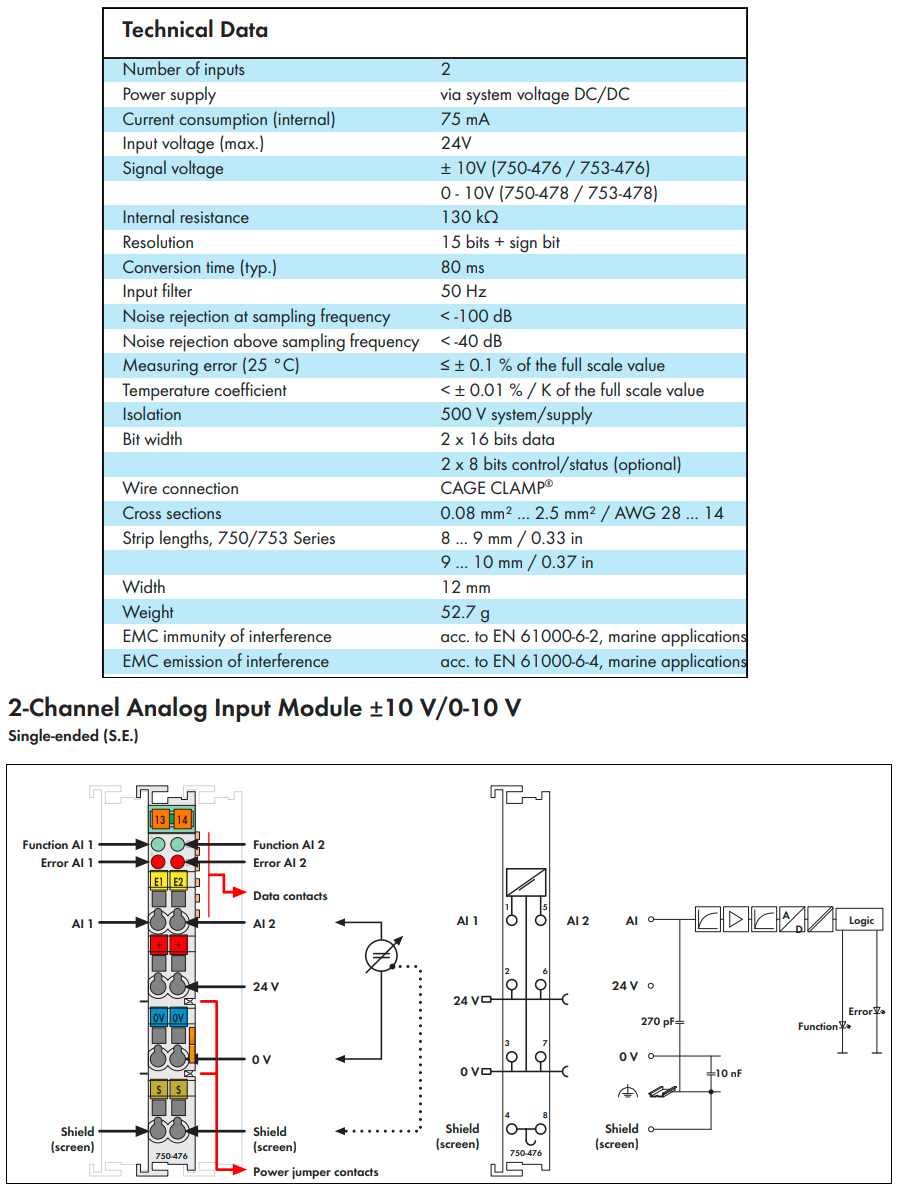

Technical data

Number of analog inputs

2

Total number of channels (module)

2

Signal type

Voltage

Signal type (voltage)

0 … 10 VDC

Sensor connection

2 x (2-wire)

Input filter frequency (analog)

50Hz

Input voltage (max.)

24 V

Signal characteristics

Single-ended

Resolution [bit]

16Bit

Data width

2 x 16-bit data; 2 x 8-bit control/status (optional)

Noise rejection at sampling frequency

-100dB

Noise rejection above sampling frequency

-40dB

Internal resistance

130kΩ

Conversion time (typ.)

80ms

Measurement error (reference temperature)

25°C

Measurement error, deviation (max.) from the upper-range value

0.1%

Temperature error (max.) of the upper-range value

0.01%/K

Supply voltage (system)

5 VDC; via data contacts

Current consumption (5 V system supply)

75mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)

Isolation

500 V system/field

Indicators

LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

Support Links
753-478 Data Sheet
