8-channel digital output module,24 VDC,(750-430)

This digital input module features eight channels in a width of just 12 mm (0.47 inch). It receives control signals from digital field devices (e.g., sensors).Each input module has a noise-rejection filter. Field and system levels are electrically isolated.

The device is ideal for operation in extreme environments

An extended temperature range

Greater immunity to impulse voltages and electromagnetic interference

Higher vibration and shock resistance
The digital input modules receive the control signal from digital field devices (sensors, etc.) and provides them to the WAGO System 750 data bus

Catalog Description: 8-channel digital input; 24 VDC; 03 ms

Item Features

The digital output module provides 8 channels in a width of just 12 mm

It receives control signals from digital field devices

Each input module has a noise-rejection filter

Field and system levels are electrically isolated

Eight no of channels

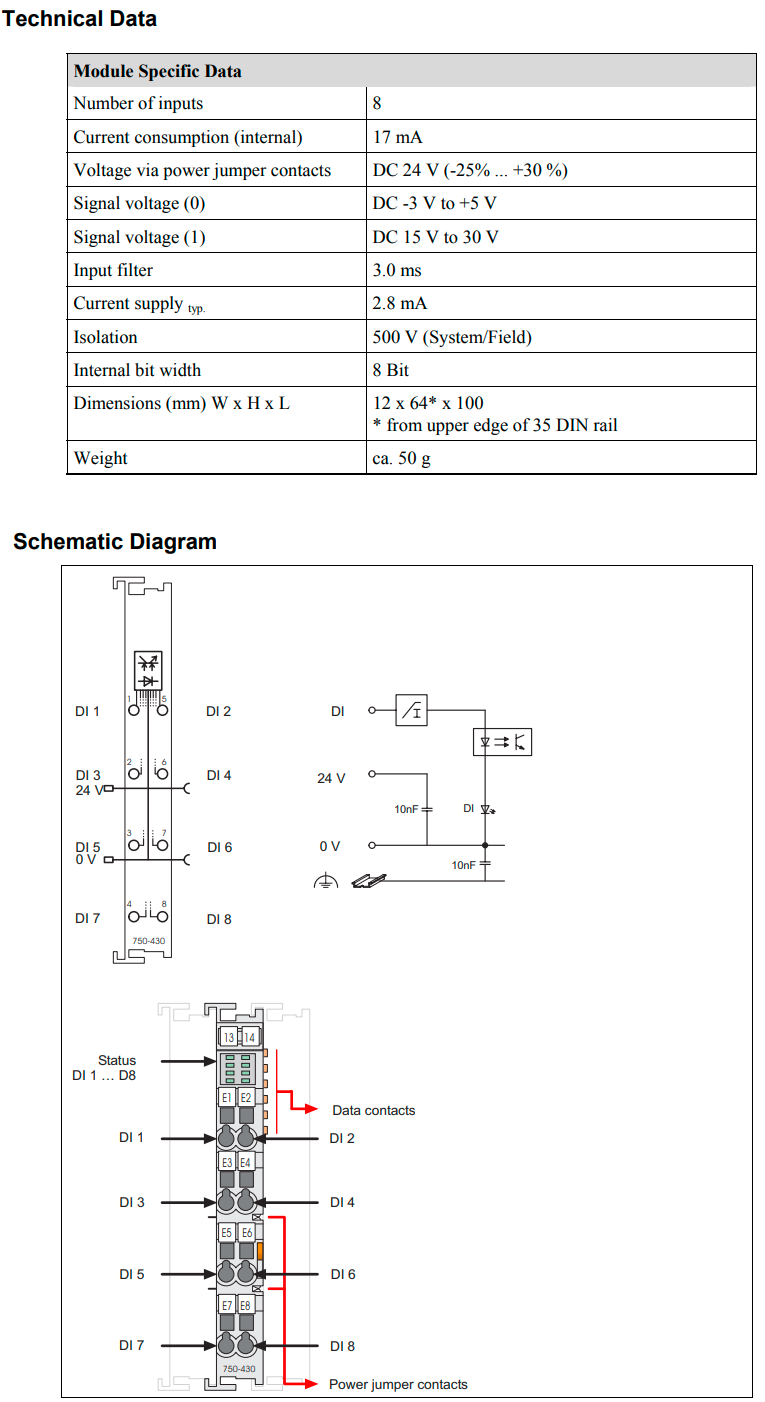

General Data:
