Motion Control Module 100-240V AC/24V DC(DVP01PU-S)
Model Description and Peripherals
DVP01PU-S is mainly applicable to the speed or position control of step or servo drive systems. With a PLC, 8 axes can be connected at the same time with maximum 200kPPS pulse output and many built-in control modes. The user can read or write the data in DVP01PU-S by FROM/TO instruction by using the program in DVP-SS/SA/SX/SC series PLC main processing unit for conducting a position control.
DVP01PU-S is suitable for equipment requiring higher motion reaction. There are 49 CRs (Control Register) with 16-bit for each register in 01PU. The 32-bits data is composed of 2 continuous CR number
DVP01PU-S Single-axis positioning module is mainly applied to the speed/position control of step/servo driven system. The maximum output pulse can be up to 200 kPPS. Support FP/RP mode: CW pulse output CCW pulse output; I/O mode: direction output AB-phase mode: B-phase output

Product Description
High-speed pulse output: Supports 2-point (Y0, Y1) independent high-speed pulse output of up to 10KHz.
Built-in high-speed counter.
Power Supply voltage: MPU: 24VDC (-15% - 20%) (With DC input reverse polarity protection).
Fuse: 2A / 250VAC.

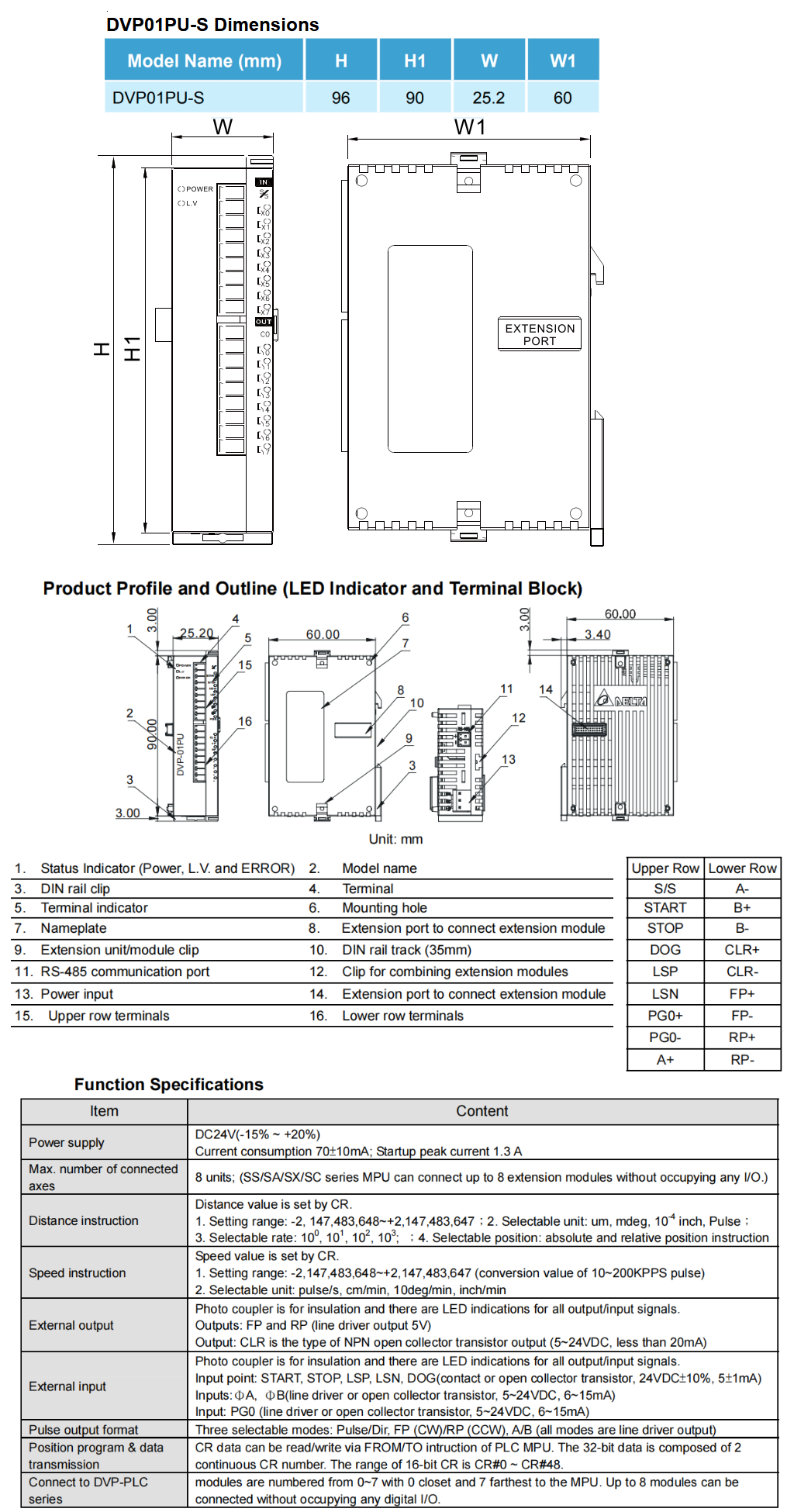

General Specifications
