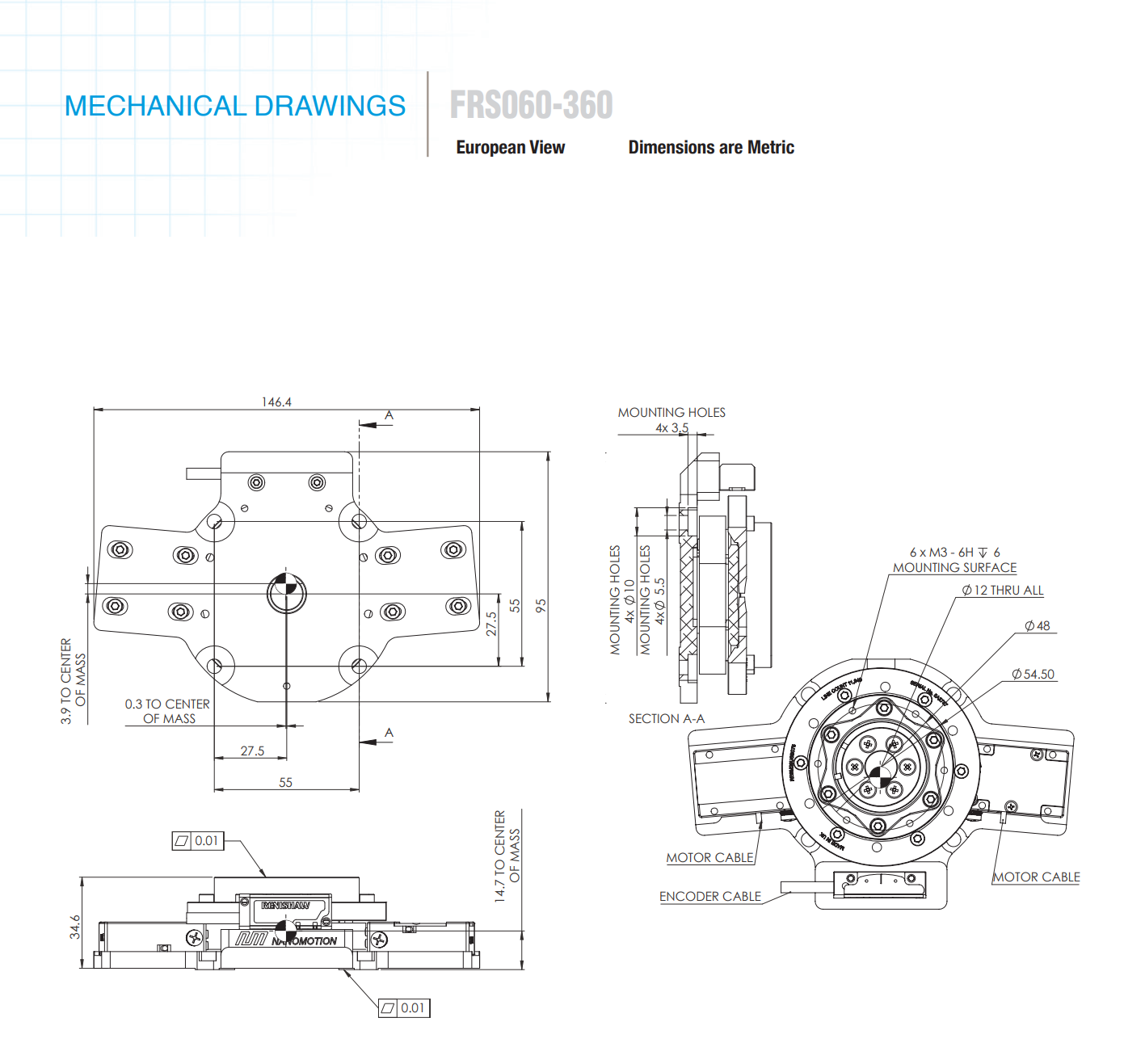

Specifications and Drawings

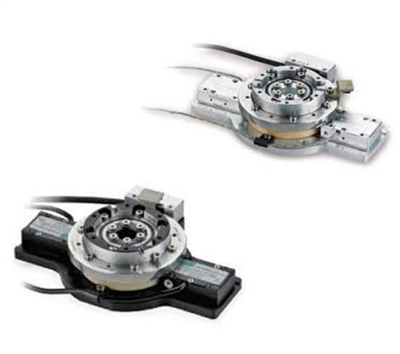

Nanomotion: Rotary Stage FRS060-360

The Nanomotion FRS060-360 Rotary Stage is a compact, high-precision rotary positioning stage designed for continuous 360° motion. Utilizing Nanomotion's ultrasonic piezoelectric motor technology and a precision crossed-roller bearing, the FRS060-360 delivers smooth, backlash-free rotation with exceptional positioning accuracy and repeatability for demanding photonics, semiconductor, biomedical, and metrology applications.

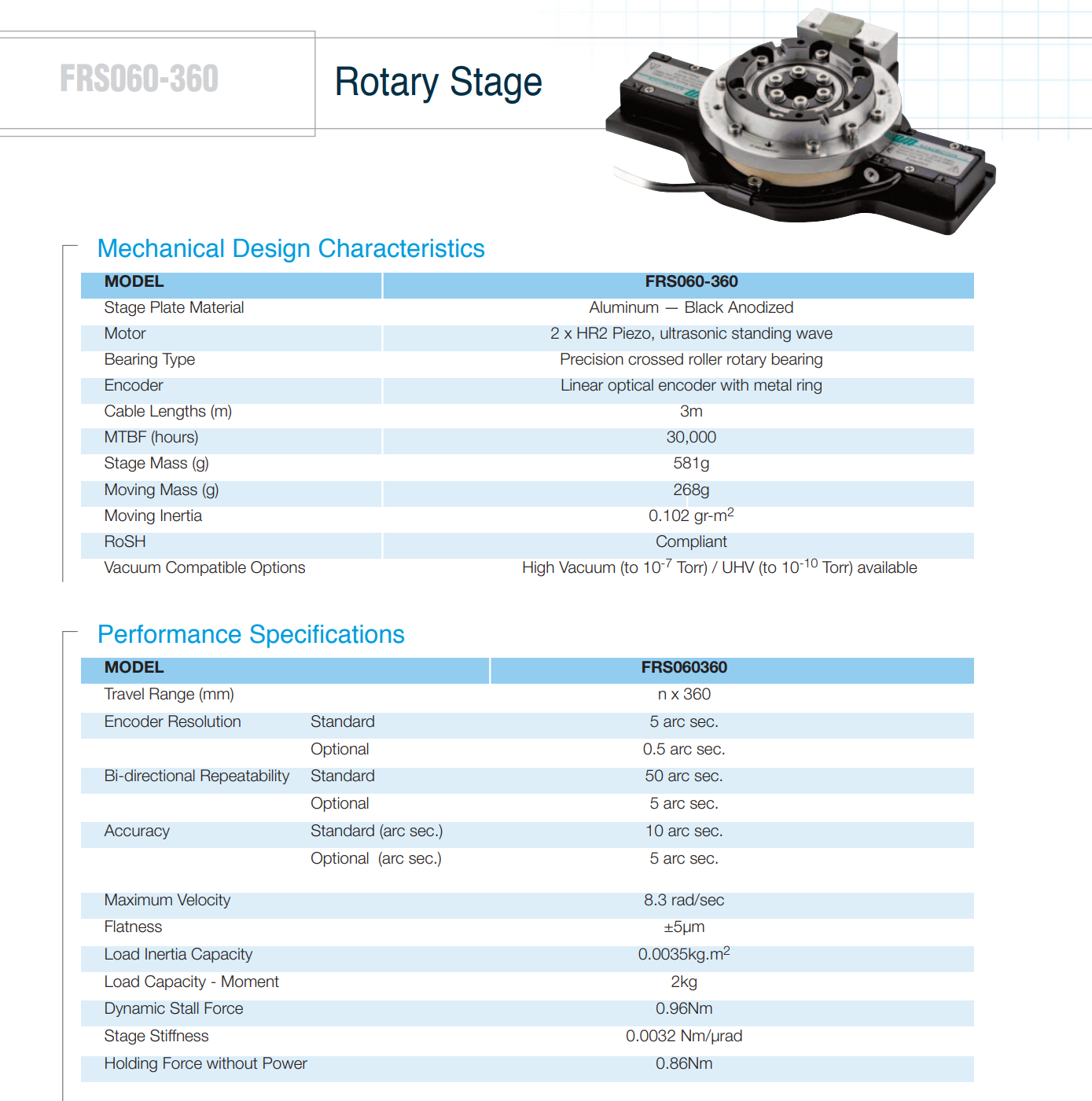

Mechanical Characteristics

Model	FRS060-360
Stage Plate Material	Aluminum- Black Anodized
Motor	2 x HR2 Piezo, ultrasonic standing wave
Bearing Type	Precision crossed roller rotary bearing
Encoder	Linear optical encoder with metal ring
Cable lengths (m)	3m
MTBF (hours)	30,000
Stage Mass	581g
Moving Mass	268g
Moving Inertia	0.102 gr-m²
RoSH	Complaint
Vacuum Compatible Options	High Vacuum (to 10-7 Torr) / UHV (to 10-10 Torr) available

Performance Specs

Model		FRS060360
Travel Range (mm)		n x 360
Encoder Resolution	Standard	5 arc sec
	Optional	0.5 arc sec
Bi-directional Repeatability	Standard	50 arc sec
	Optional	5 arc sec
Accuracy	Standard (arc sec)	10 arc sec
	Optional (arc sec)	5 arc sec
Maximum Velocity		8.3 rad/sec
Flatness		±5µm
Load Inertia Capacity		0.0035 kg.m²
Load Capacity (moment)		2kg
Dynamic Stall Force		0.96Nm
Stage Stiffness		0.0032 Nm/µrad
Holding force without power		0.86Nm
