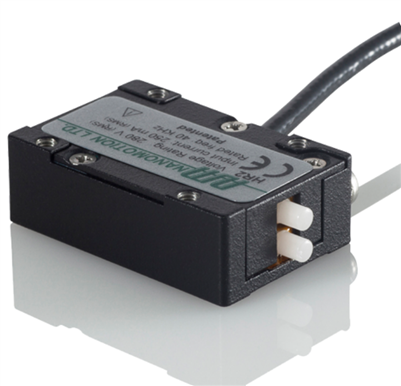

Nanomotion: High Precision Ceramic Motor (HR2 Series)

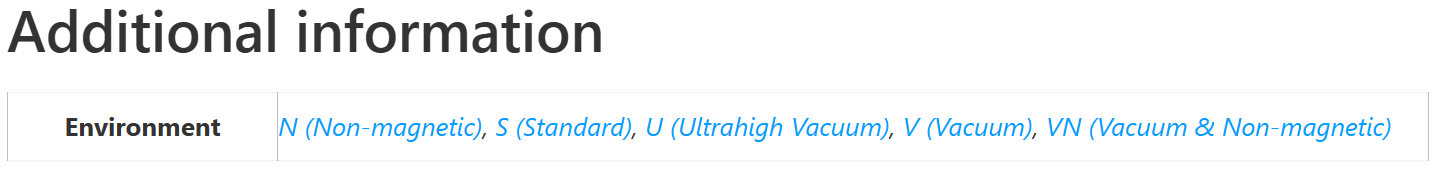

The HR motors are high precision ceramic motors. Designed and manufactured by Nanomotion, Ltd., the HR motors, combine unlimited stroke with high resolution in compact dimensions. Among its applications are microscopy, precision motion, robotics, etc. The motors provide a linear response to the input voltage. The operation of the motor and driver resembles that of a DC-motor driven by a voltage amplifier. The HR-V and HR-U motors are constructed of materials that have been selected and designed for high vacuum compatibility.
