Nanomotion: The XCD Series Drive/Control (for Edge & Edge-4X Motors)

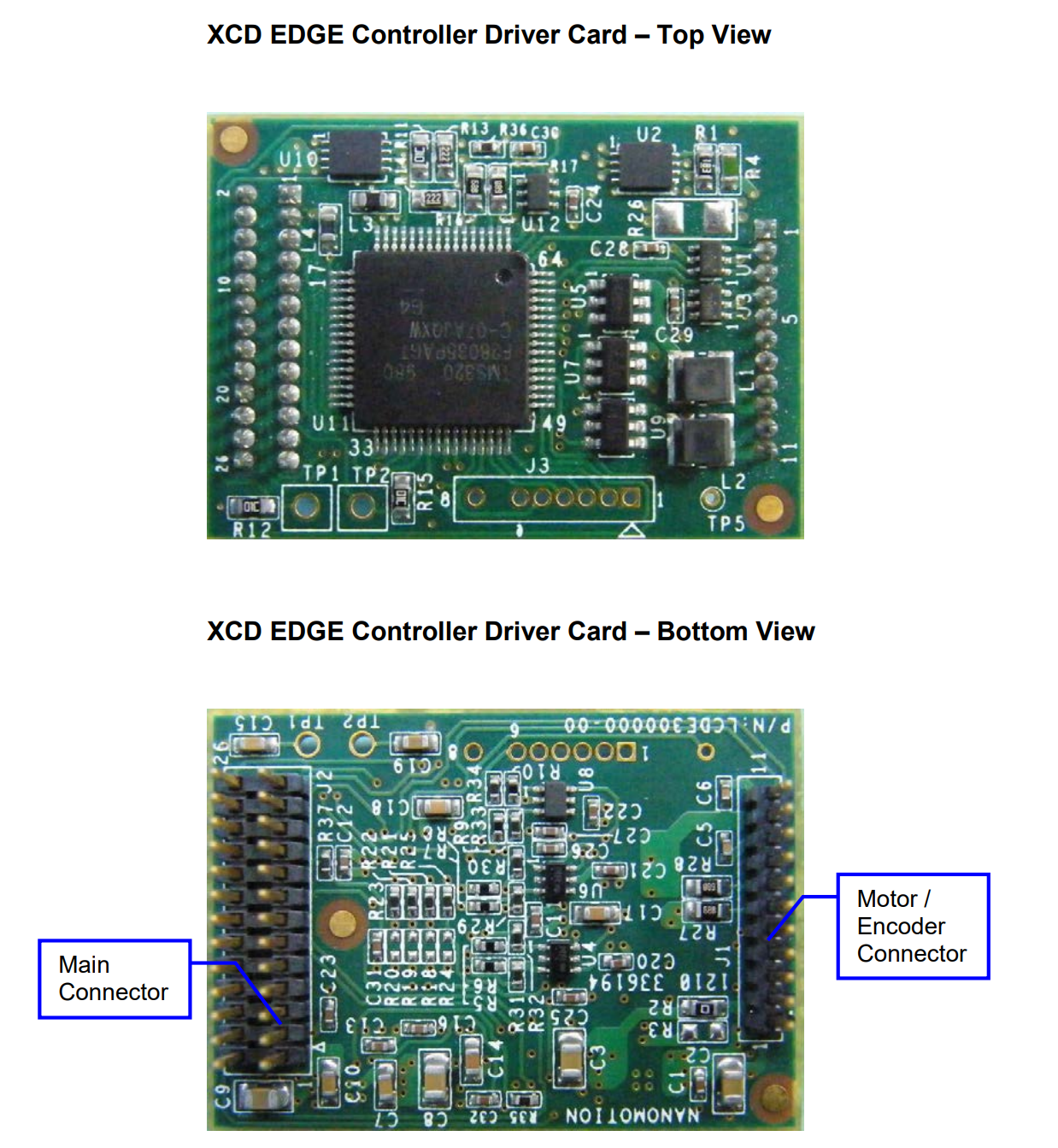

Nanomotion’s XCD board is an OEM amplifier & control board designed for applications using the Edge and Edge-4X motors. The board level product replaces traditional amplifiers with a separate motion controller, as the XCD closes the loop and functions as a stand-alone drive and control. XCD-Edge is a single axis configuration designed to support Nanomotion’s low voltage motors with up to (4) Edge motors or (1) Edge-4X motor on an axis. The XCD is programmed via IIC communication, and can interface with Nanomotion’s nanocommander firmware, accepting quadrature encoder inputs.
