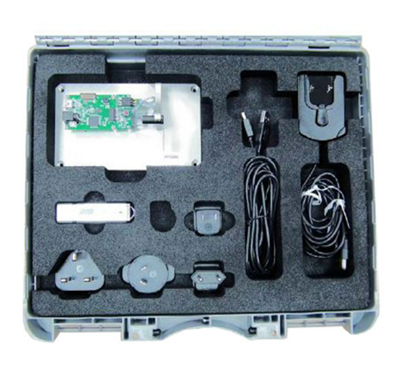

Nanomotion: RS08 Rotary Shutter Evaluation Kit (RS08-EK)

.

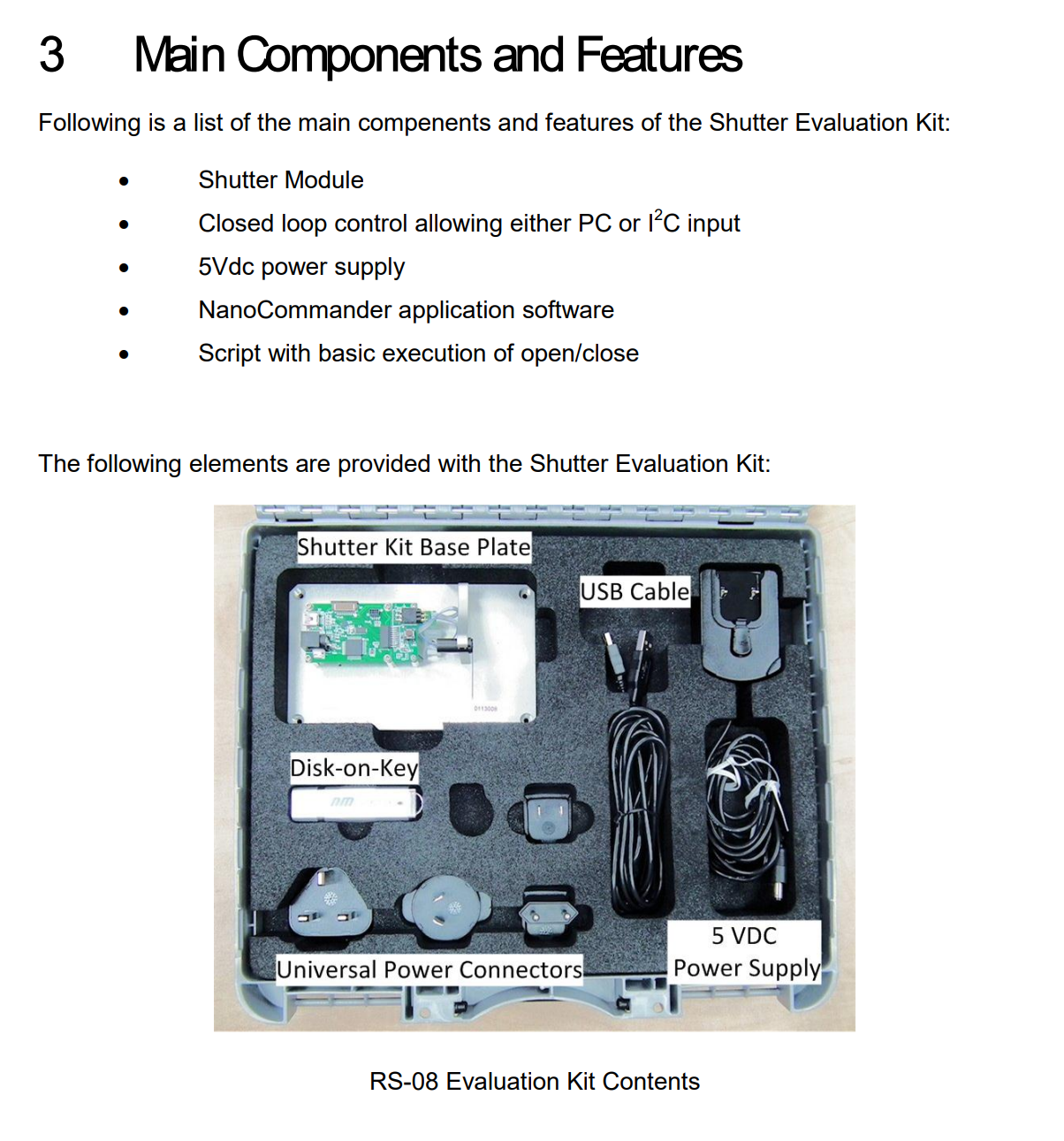

Nanomotion offers a variety of Evaluation Kits that include a single operating axis with a drive and control and the Nanocommander control interface. These kits support an easy start up, to command the axis via IIC, with all necessary cables and power supplies.

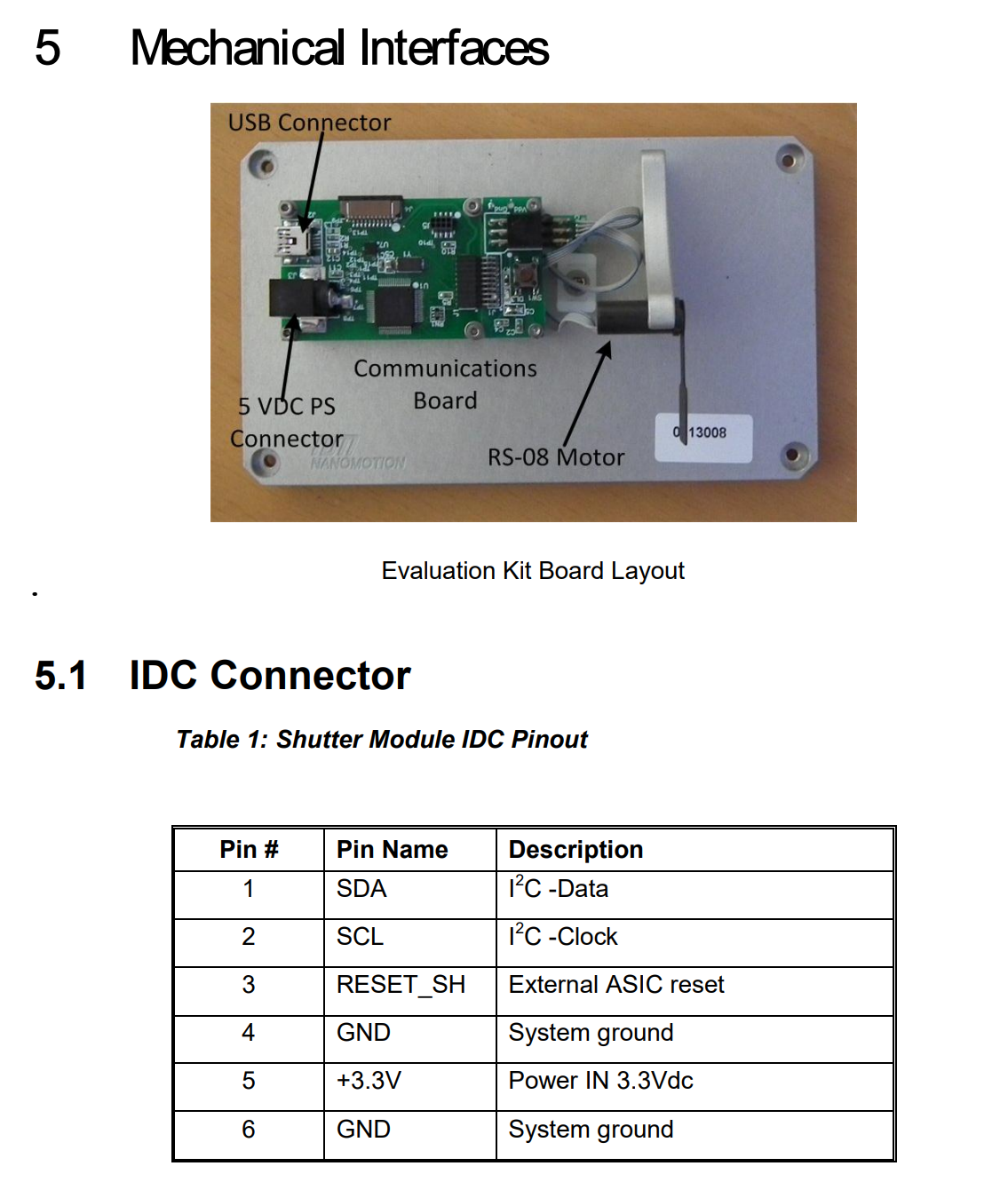

The Shutter Evaluation Kit is provided as an autonomous unit, based on the RS08 NUC (Non-Uniformity Correction) Shutter series solution, allowing a simple interface to customer FPGA/PC. The kit supports two modes of operation: the GUI Mode, and the FPGA Mode. The GUI Mode, enables the user controlling the kit using the NanoCommander application, installed on user’s PC. The FPGA Mode enables the user control the kit using the I2C communication.
