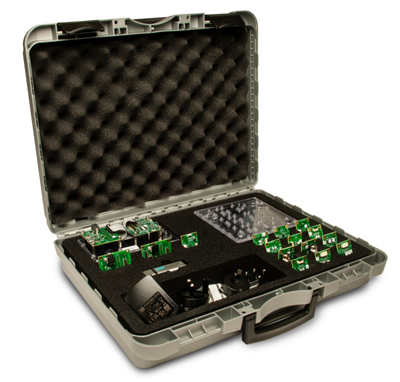

Nanomotion: XCD-Edge Controller Evaluation Kit (XCD-Edge-EK)

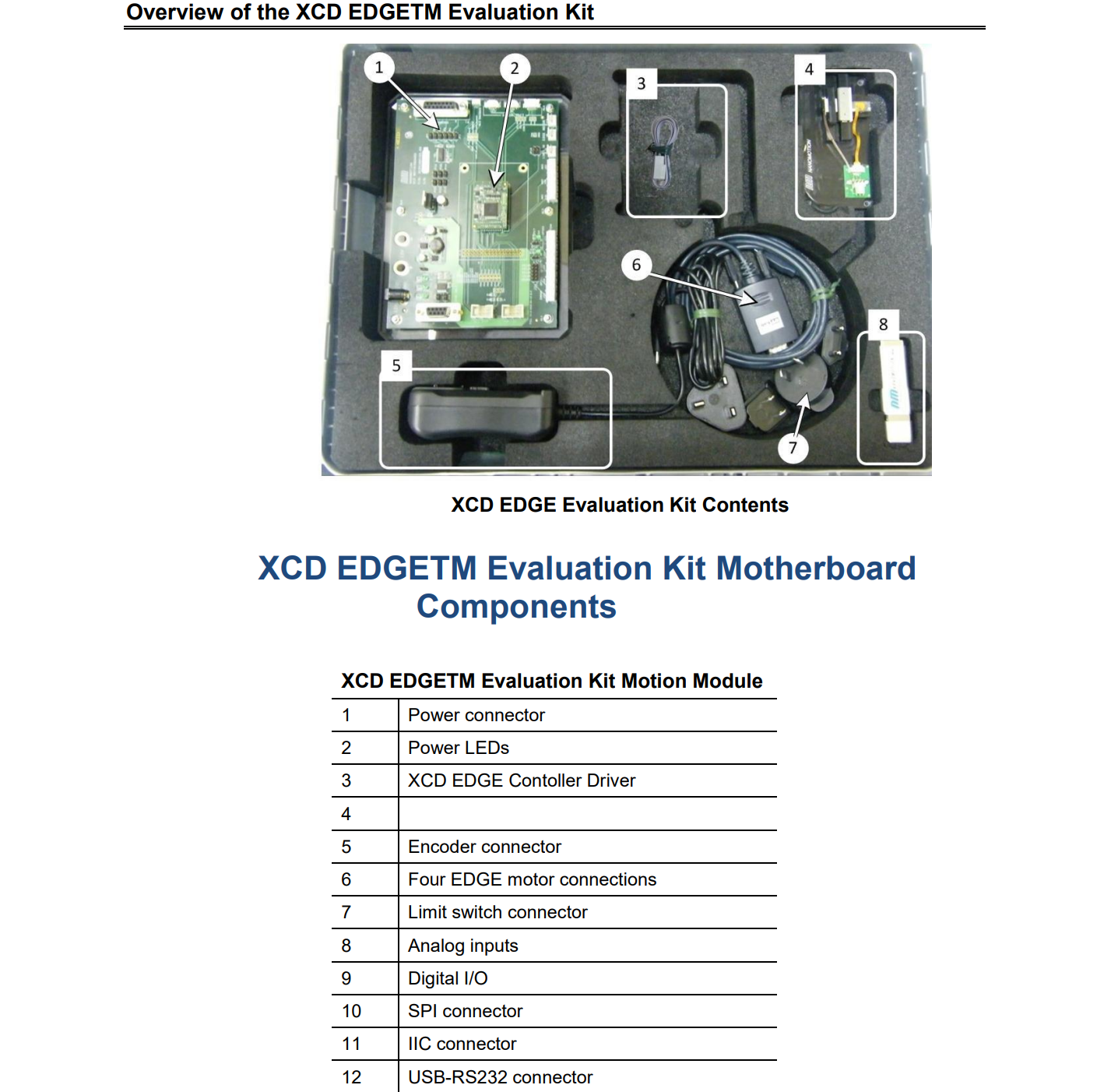

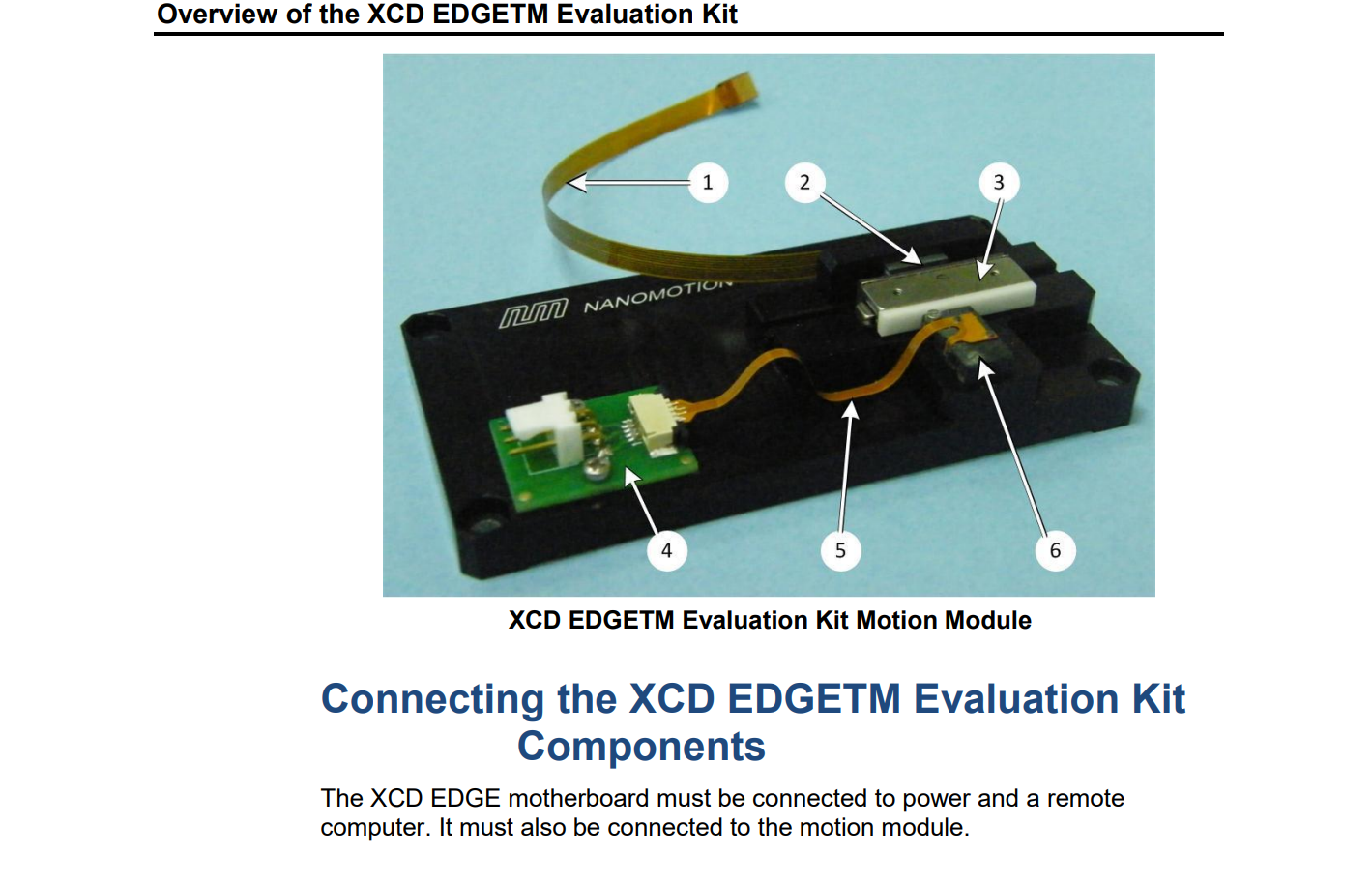

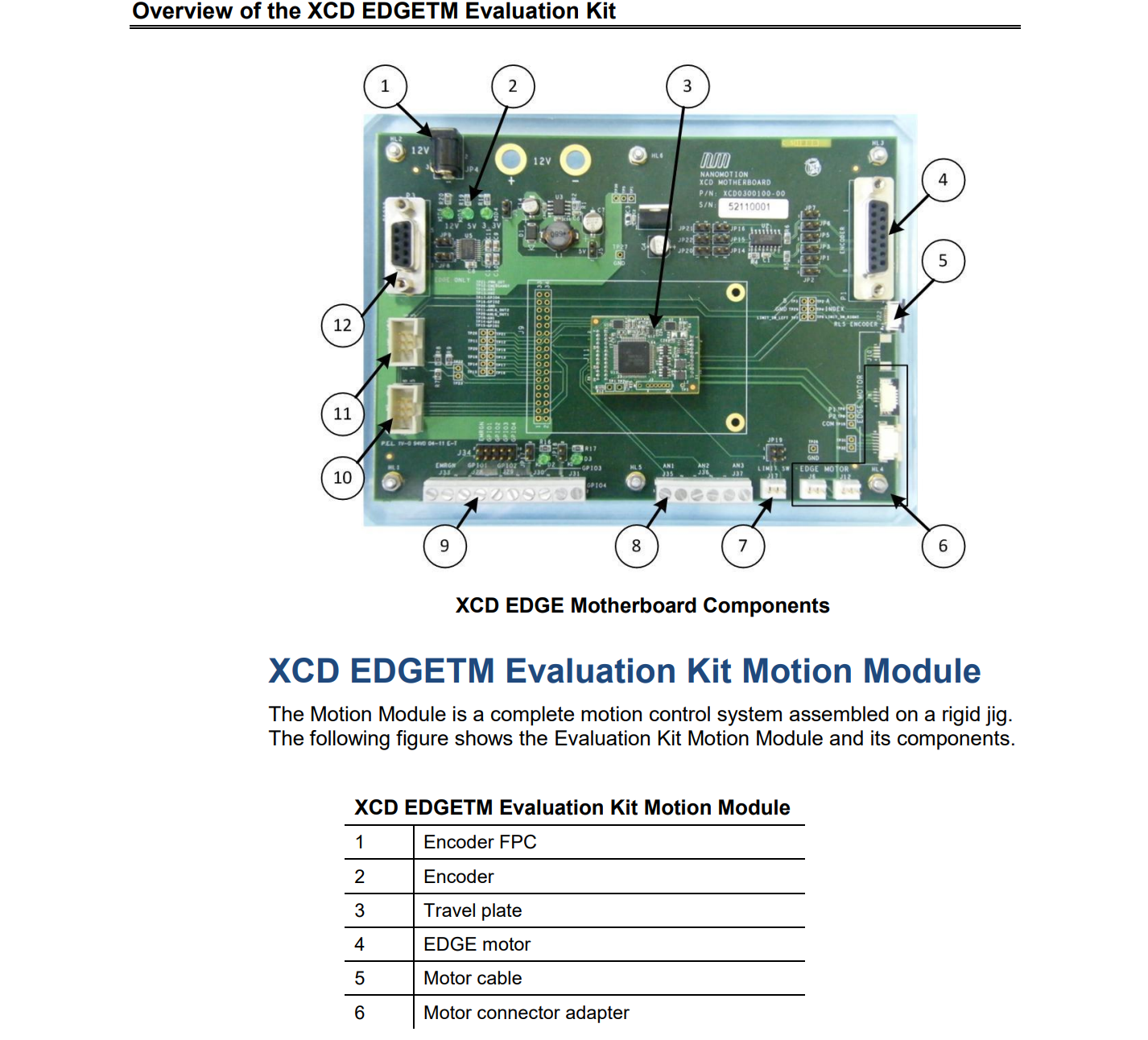

The XCD EDGE Evaluation Kit is a closed loop positioning system. The kit’s purpose is to allow the user to evaluate the XCD EDGE controller driver and the Nanomotion EDGE motor. The controller driver drives the EDGE motor in linear mode. The controller driver provides positioning control for one axis, with configurable motion profile and servo parameters.

The controller driver supports user programming, using a Nanomotion proprietary XCD Motion Script (XMS). With the XMS, the user can define a complex sequence of motions along with sophisticated calculations and execution control. The user can store a preprogrammed XMS program in the controller’s flash memory, and execute it at power up.
