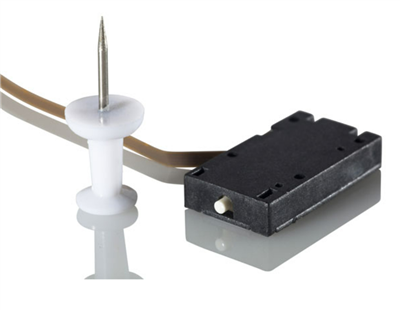

Nanomotion: Edge-4X Motor with standard FPC (EM4X Series)

The EDGE-4X motor offers a small footprint for unlimited linear and rotary motion. The EDGE-4X provides 1.3N max force and is capable of achieving 200mm/sec maximum velocity. The EDGE-4X can easily adapt to numerous bearing structures to provide high resolution motion control for a wide range of applications in defense optronics, medical and semiconductor markets.

Nanomotion’s EDGE motor & EDGE-4X are the smallest industrial motors of its kind available in the marketplace today. Providing unlimited linear or rotary motion, the EDGE Series offers extensive opportunities in applications that suit a wide range of industries. The EDGE motor works with a uniquely designed, compact XCD drive/control on a board or chip level. The EDGE motor can be easily integrated into most bearing structures, and is ideal for mass production opportunities.

EDGE-4X Moto Features:

Application Recommendations:

The EDGE-4X motor expands the Nanomotion’s product line of low voltage piezo motors, bringing 4 times the force of the Edge motor. The EDGE-4X provides up to 1.3N force with unlimited travel for linear or rotary applications. continuing to optimize size, weight and power, the EDGE-4X is well suited to:
