Daincube: Junction Box (DTPH-CUE-JB)

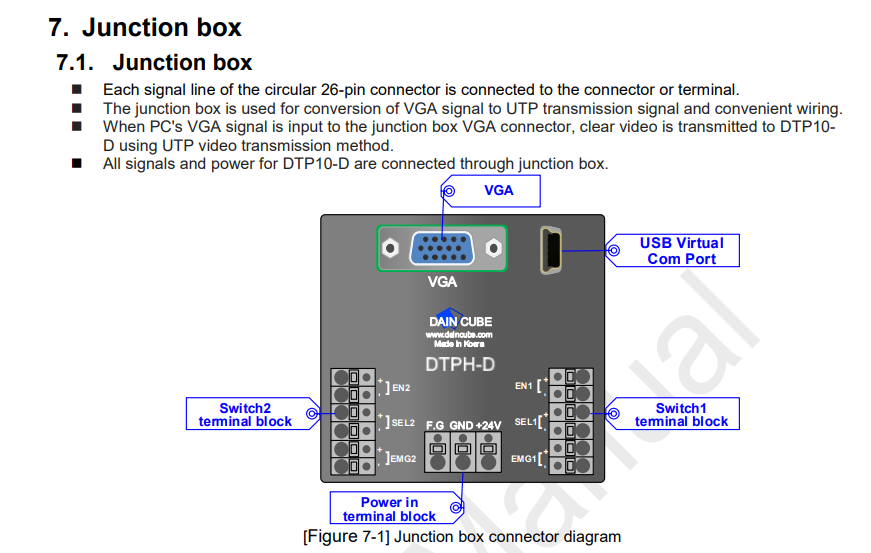

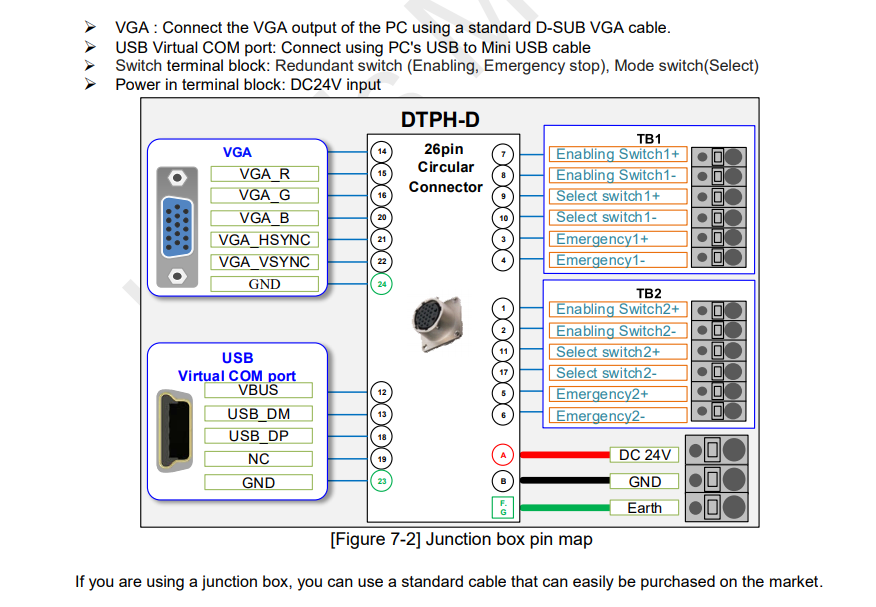

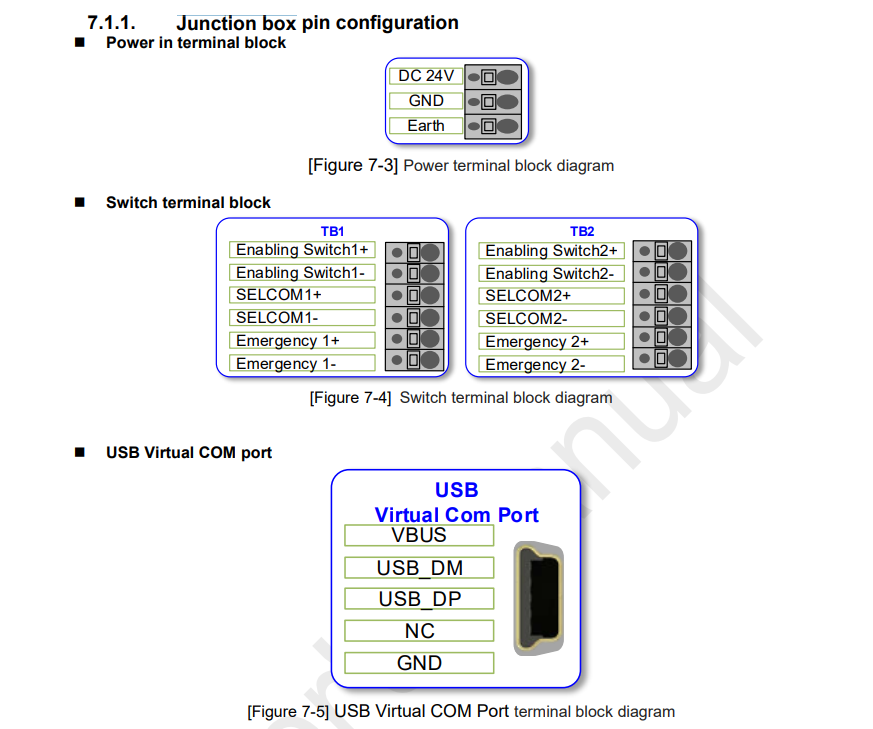

The junction box is used for conversion of VGA signal to UTP transmission signal and convenient wiring. Each signal line of the circular 26-pin connector is connected to the connector or terminal. All signals and power for DTP10-D are connected through junction box.

Support Links

1) Daincube_DTP10-D_HW_Manual
2) Daincube_DTP10-D_User's_Manual
3) Daincube_DTP10-D_API_Manual
4) Daincube_DTP10-L_HW_Manual
5) Daincube_DTP10-L_SW_Manual
6) Daincube_DTP10-L_API_Manual
7) Daincube_DTP10-P_HW_Manual
8) Daincube_DTP10-P_UWF_Guide_Manual
9) Daincube_DTP10-PD_SW_API_Manual
10) Daincube_DTP10-W_HW_Manual
