Daincube: Teach Pendant (DTP3)
Daincube: Teach Pendant (DTP3)



Alternate View


833-9MOTION inquiry@e-motionsupply.com.
Price : $980.00


Availability: Lead Time is 2-4 weeks.
Order #: DTP3
Qty:

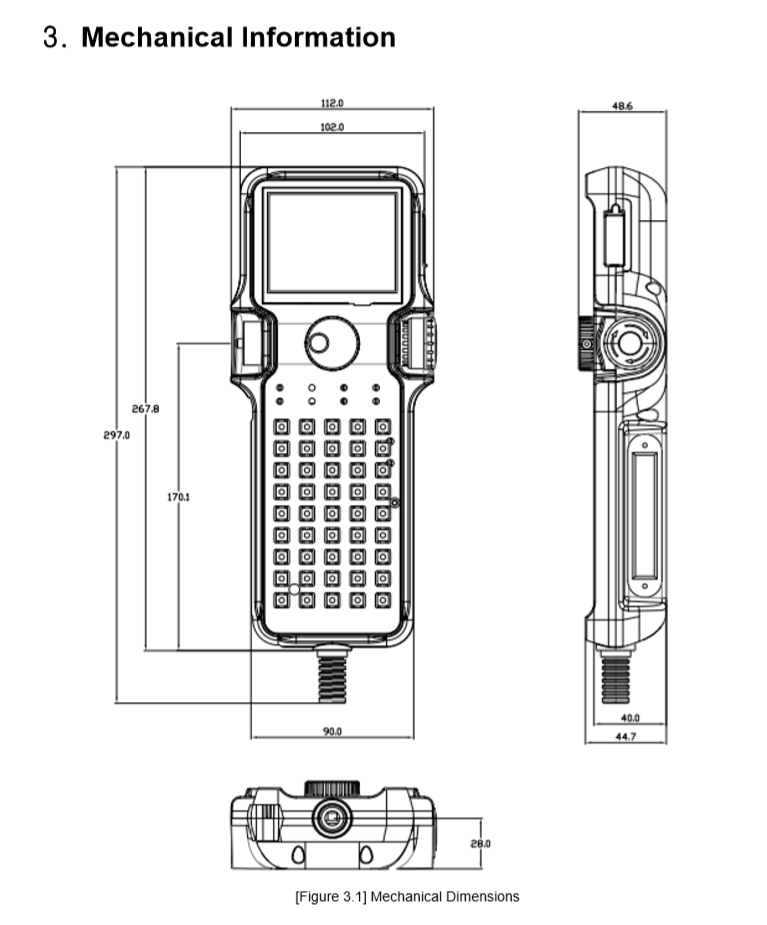

Description Specifications and Drawings


Daincube: Teach Pendant (DTP3)

Compact size, lower-priced Teach Pendant

  • Light compact size (under 300g weight)
  • More cost-effective price than in-house Teach Pendant. (discounts are offered for annual purchases of 100 units or more)
  • GUI implementation without developing extra programs in the Teach Pendant only with the controller program.
  • Allows the development of programs for the Teach Pendants under the environment of STMicro STM32.
  • Supports various languages.
  • Allows the use of USB devices.

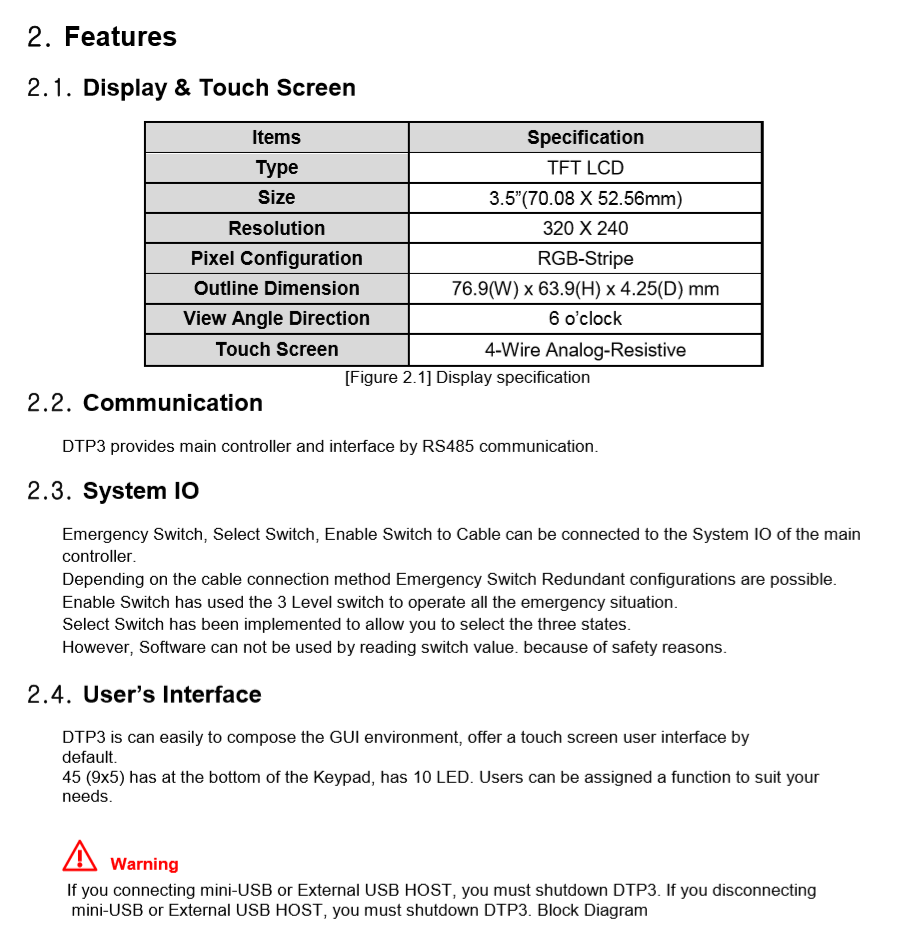

Technical info

  • 3.5″ 320 x 240 resolution
  • ARM Cortex-M4 – 180MHz
  • SRAM 256KB / USB storage

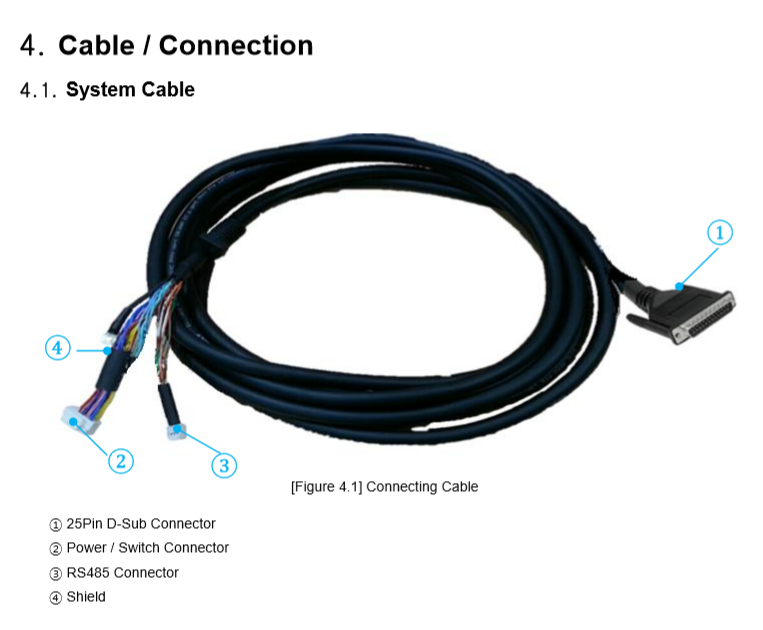

  • Communicates with controller: RS-485
  • Emergency stop switch, 3 level Enabling switch, Select switch
  • Jog dial, 45 keys

[Robot Teach Pendant] DTP3 Serial User interface
