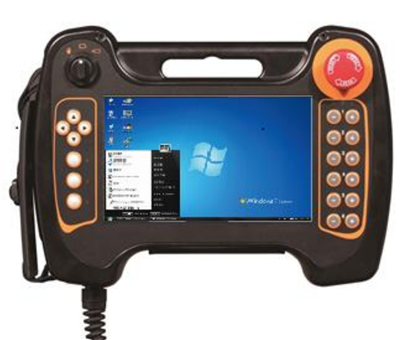

Daincube: Teach Pendant DTP7H-PQE405 [DTP7H-P_Ubuntu-based]
Daincube: Teach Pendant DTP7H-PQE405

833-9MOTION [email protected].
Price : $1,795.00


Availability: 6-8 weeks
Order #: DTP7H-PQE405
Qty:

Description Ordering Information Specifications and Drawings


Daincube: Teach Pendant DTP7H-PQE405 [DTP7H-P_Ubuntu-based]

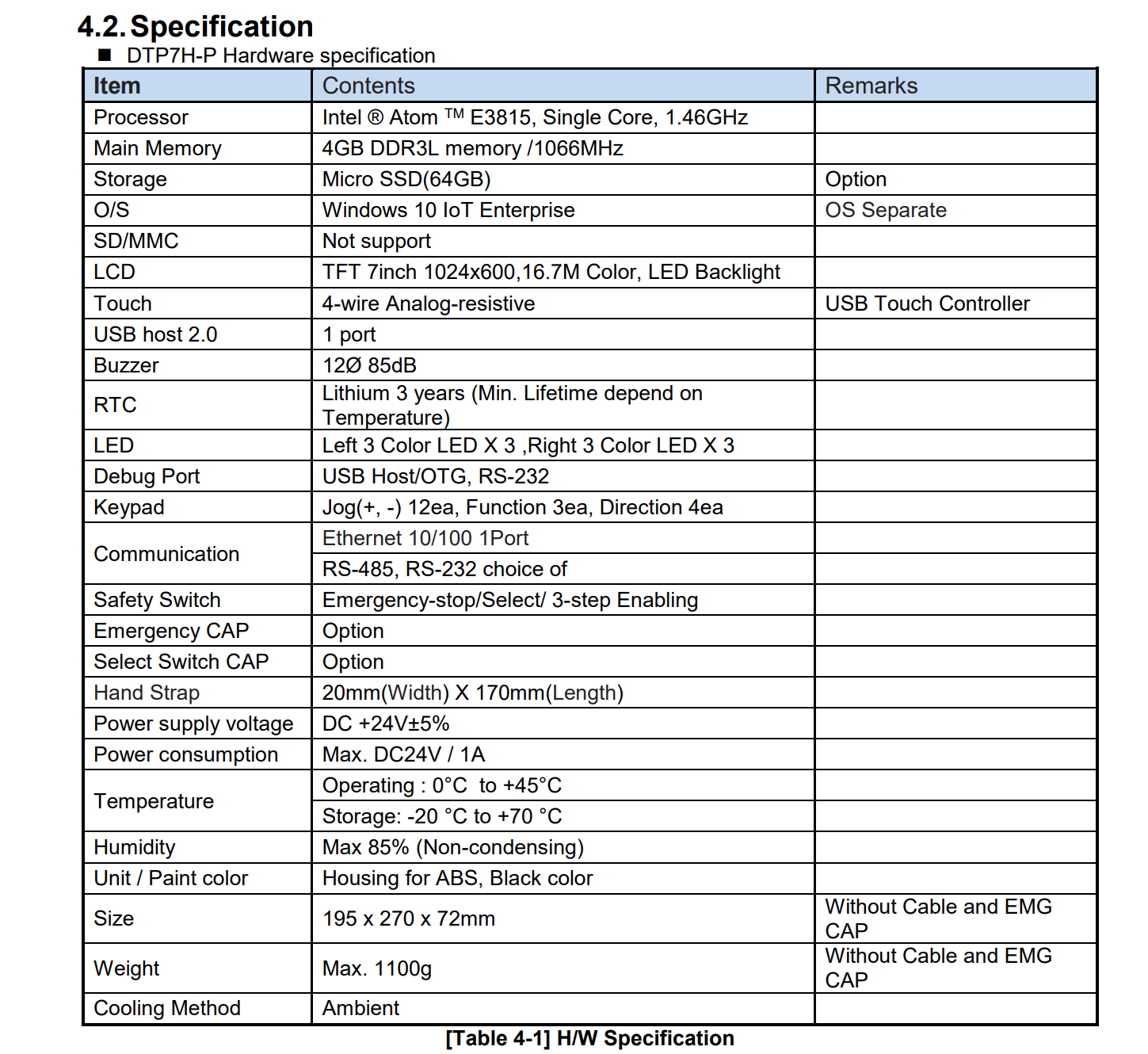

DTP7H-P is a PC type Teaching Pendant with high performance ATOM processor. It supports standard communication in various ways for various applications in various industries, and OS is easy and convenient to use in a familiar Windows environment. The Windows environment is user-friendly and allows you to develop applications quickly and easily. You can use various tools used in PC environment as well as Microsoft's Visual Studio. In addition, Daincube provides driver programs and sample programs for all devices included in the product.
.
Features:

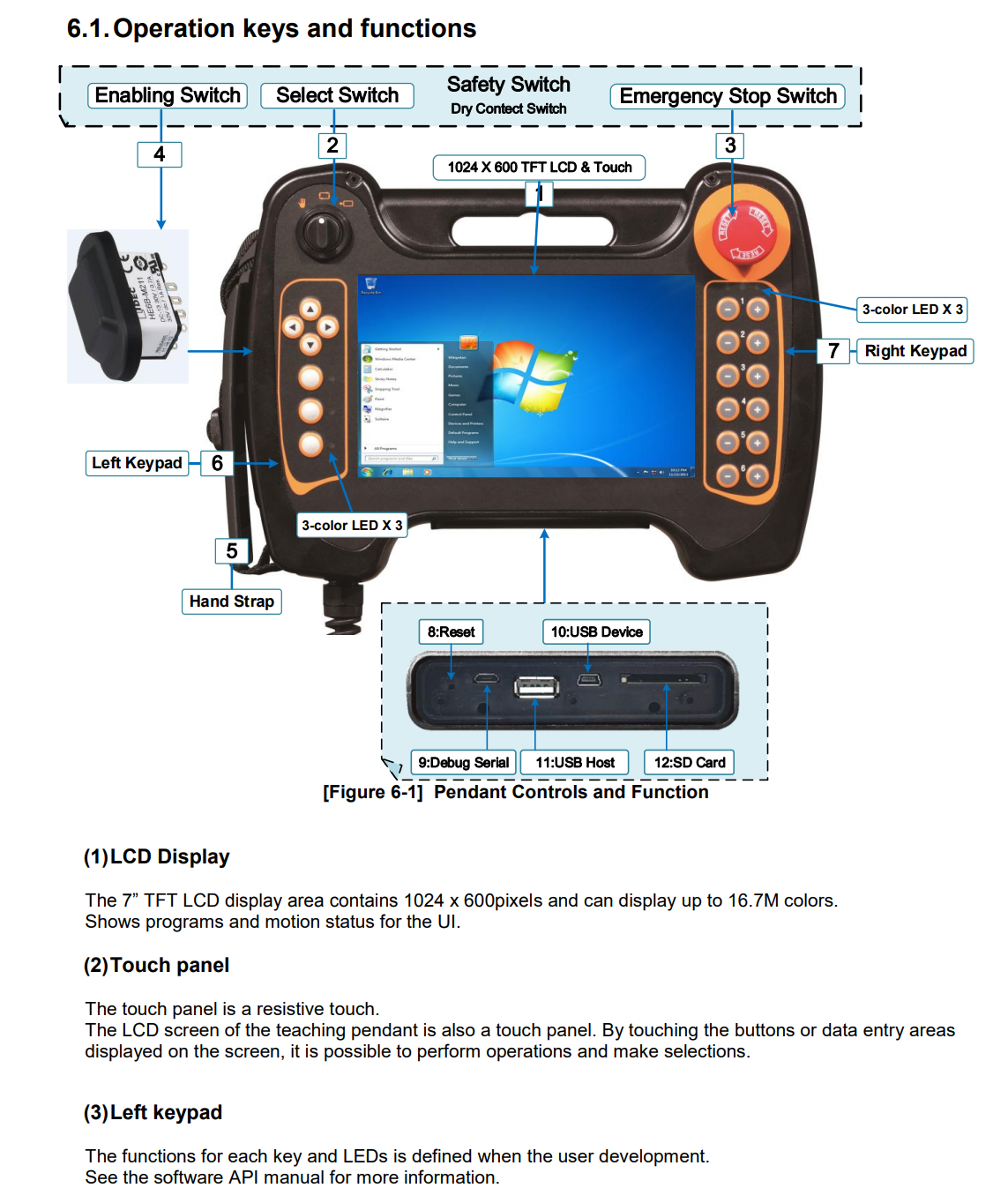

  • Teaching pendants optimized for industrial robots.
  • Round type ergonomic design products.
  • Gorgeous graphical user interface and fast and easy button operation configuration.
  • Real time clock and Lithium Coin battery
  • Buzzer for alarm
  • USB, SD Card (SD card is Not support)

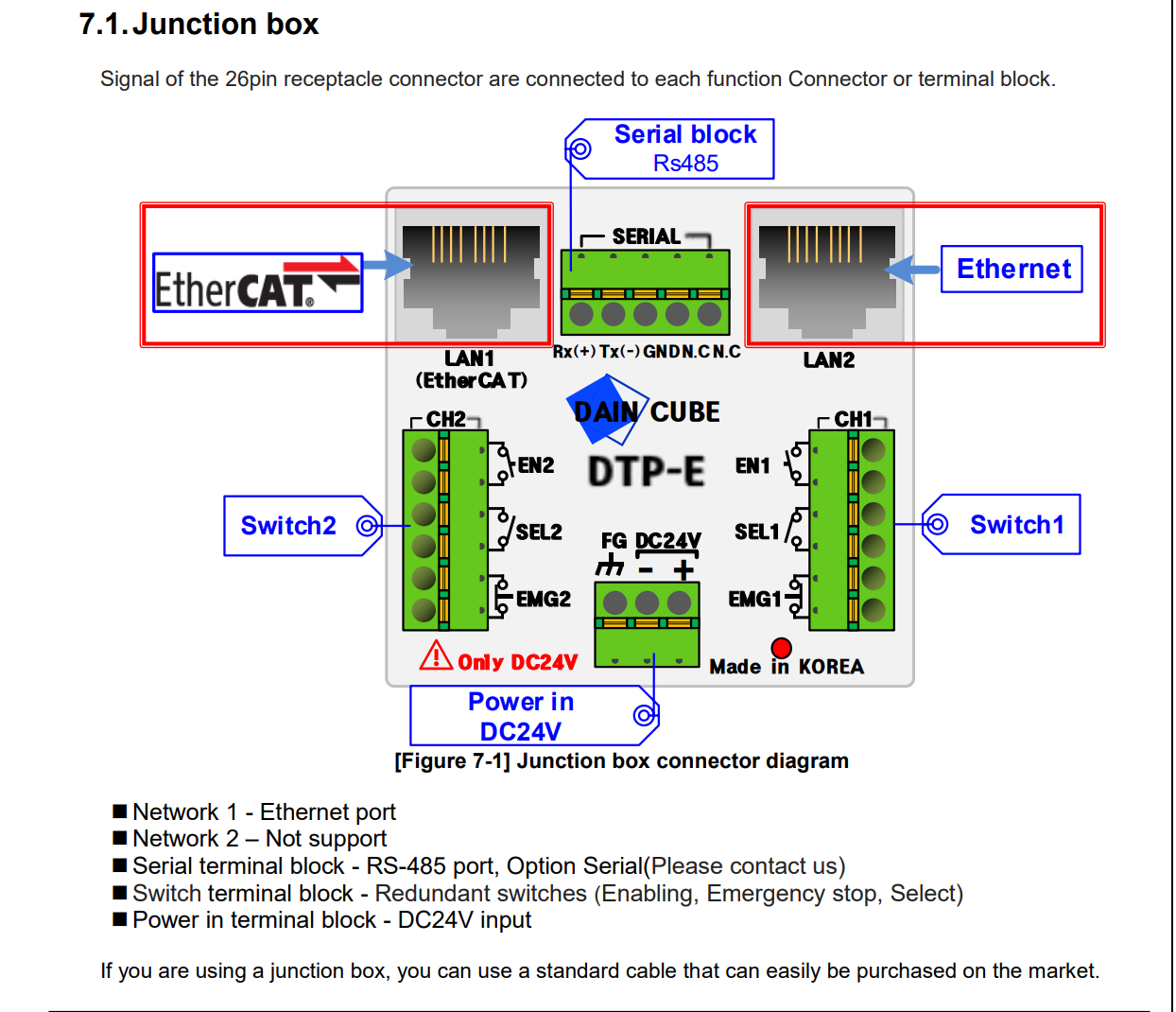

  • Communication : Ethernet 1 Port, RS-485

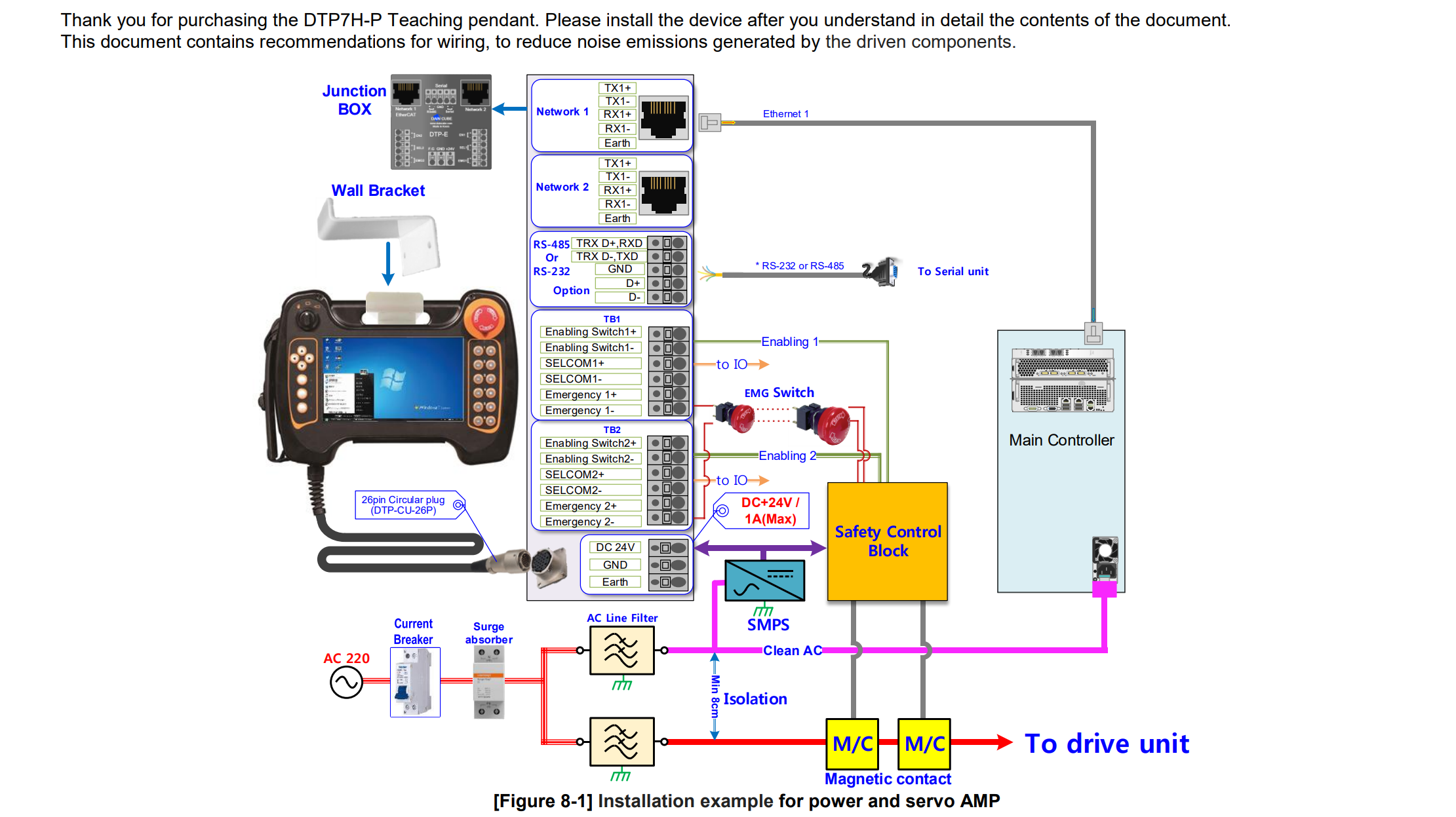

  • Safety(Emergency, Enabling) switch: Redundant switches

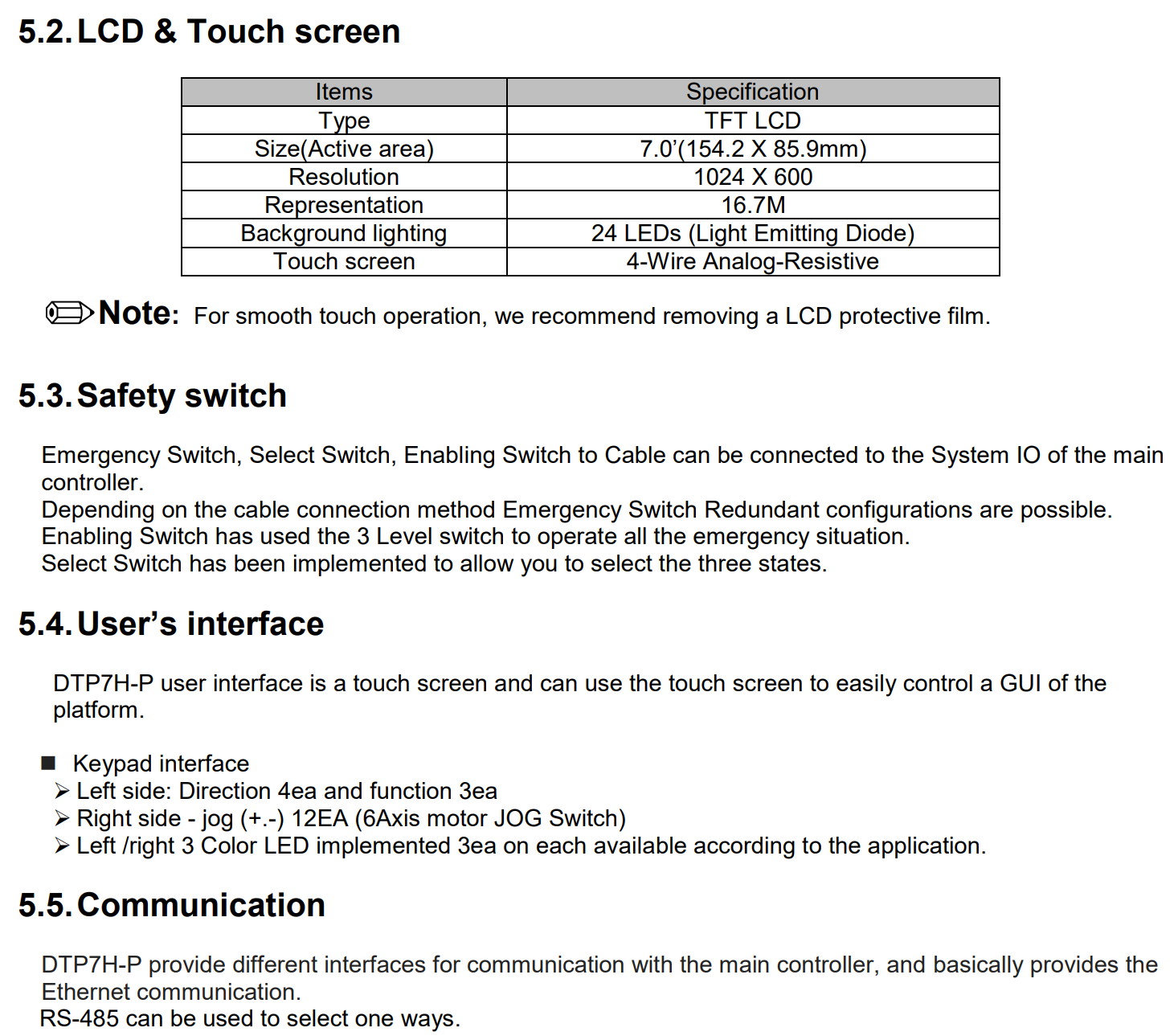

  • Mobile 7inch 1024x600 16.7M Color TFT LCD with LED Backlight
  • 4-wire resistive touch
  • Membrane keys with tactile
  • 3-Color 6 status LEDs
  • Desk top operation

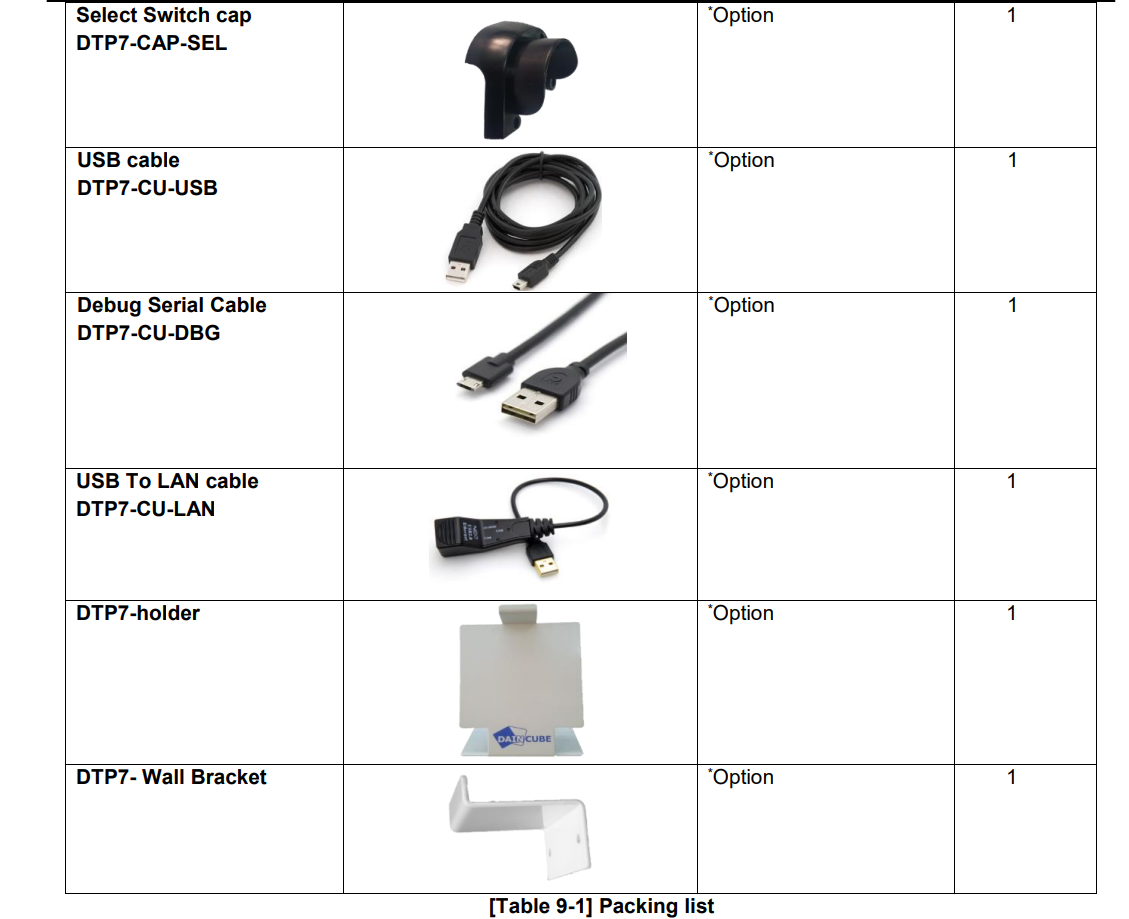

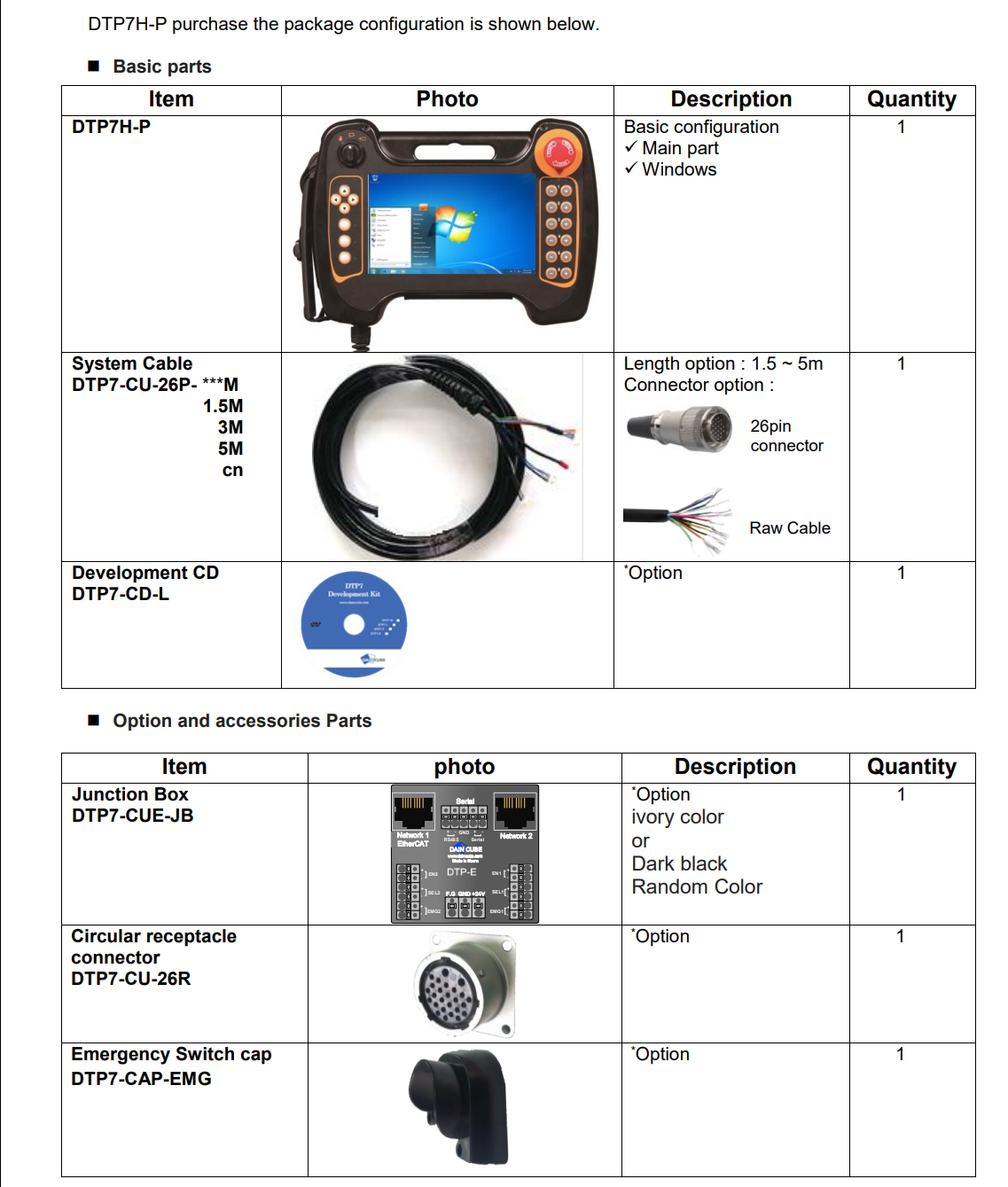

  • Accessories such as wall brackets and desktop holders for mounting
 .
