Elmo Motion Control: Platinum Line Servo Drives (Platinum Harmonica)
New Era in Servo Control, High Power, Ultra Compact, Certified Functional Safety

Composer2, Software in the Loop Powerful Drive’s Capability, Up to 50A (100 peak)/100V, R35A/200V

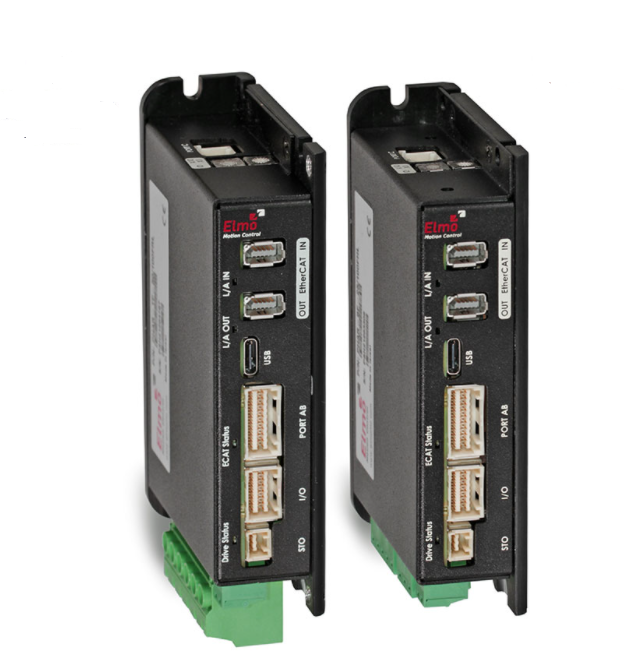

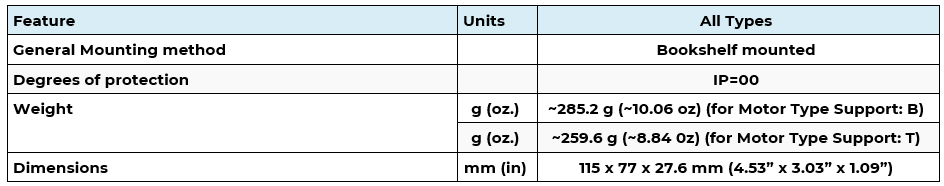

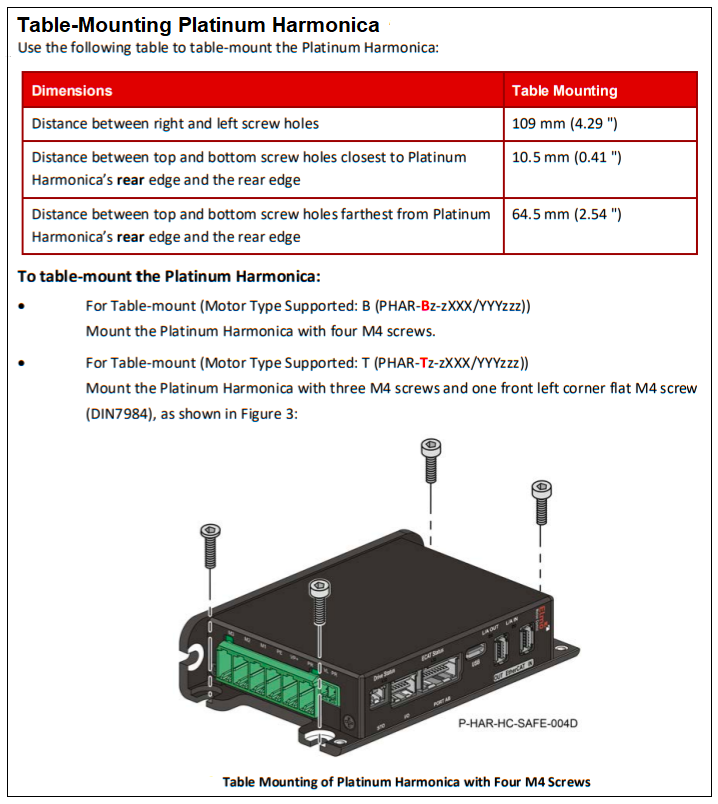

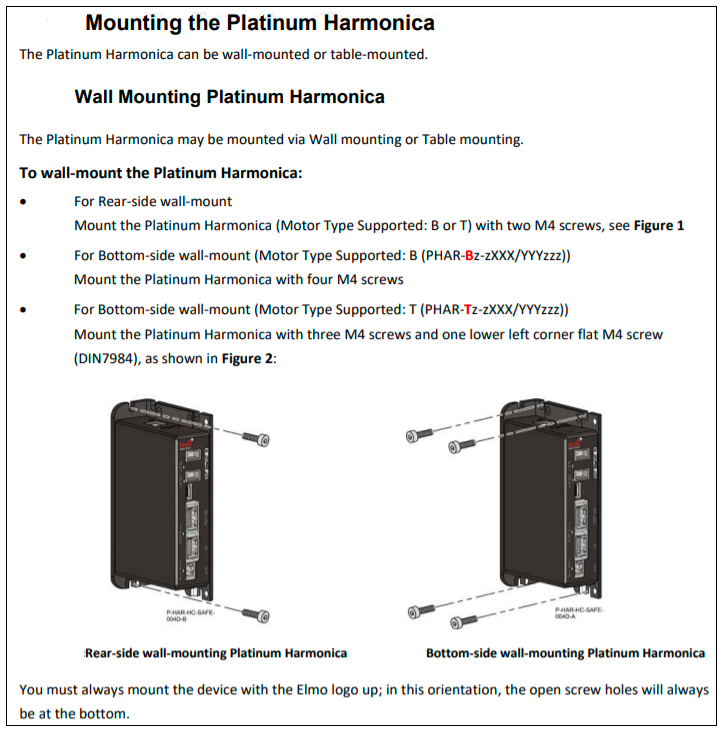

The Platinum Harmonica is a Powerful ultra-compact, bookshelf mounting servo drive with up to 50A/100V, 35A/200V in only 115 x 77 x 27.6 mm ( 4.53 ” x 3.03 ” x 1.09″)package. This advanced, high power density, high intelligence servo drive provides top servo performance, functional safety, advanced Ethercat networking, as well as a fully featured motion control capabilities..

The Platinum Harmonica has two basic power configurations, T for high current capability to run 3 Phases AC Servo motors, and B to run “any-motor”, 3 phases AC Servo , Stepper, 2X Voicecoils, or 2X DC motors . The only difference between B to T is the power connector.

The Platinum Harmonica series was designed to meet the evolving needs of OEM designers for safer, smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Harmonica Highlights

Best In Class Servo & Motion Control

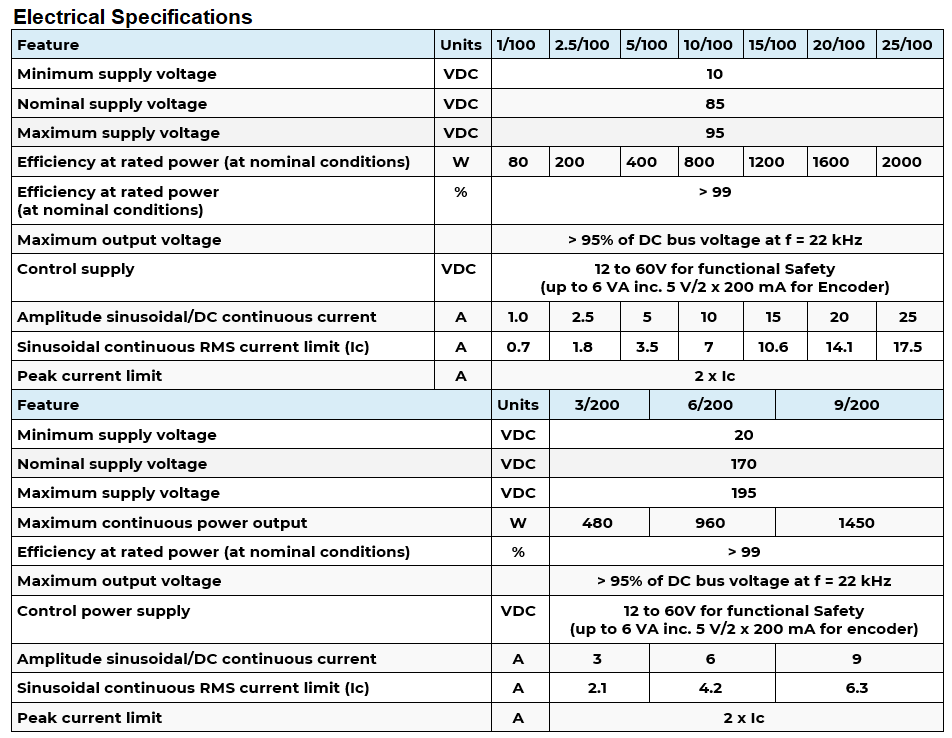

Type B, Any Motor Up to 25A (50A peak) /100V, 9A (18A peak) /200V

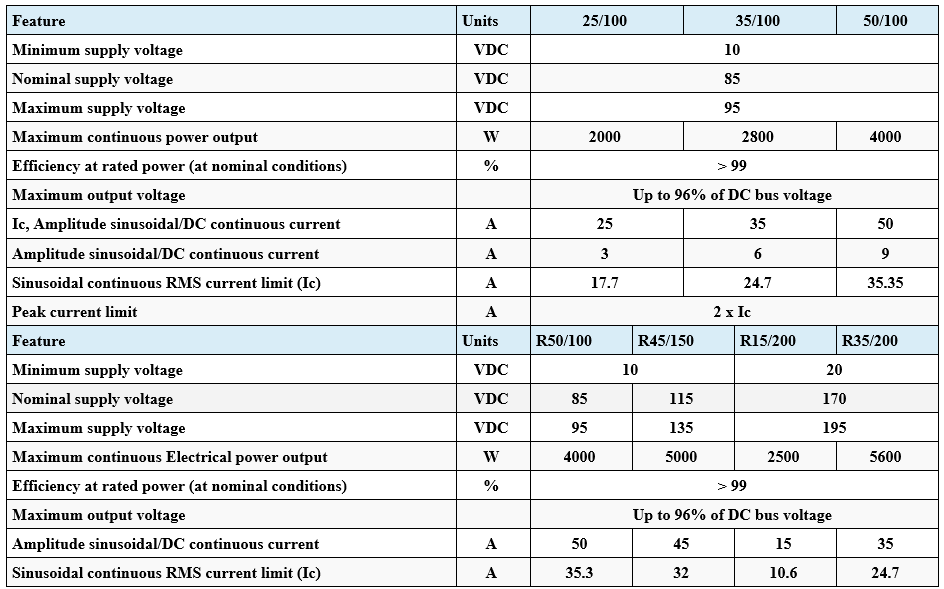

Type T, High Current: Up to 50A (100A peak)/ 100V, 35A/200V

Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

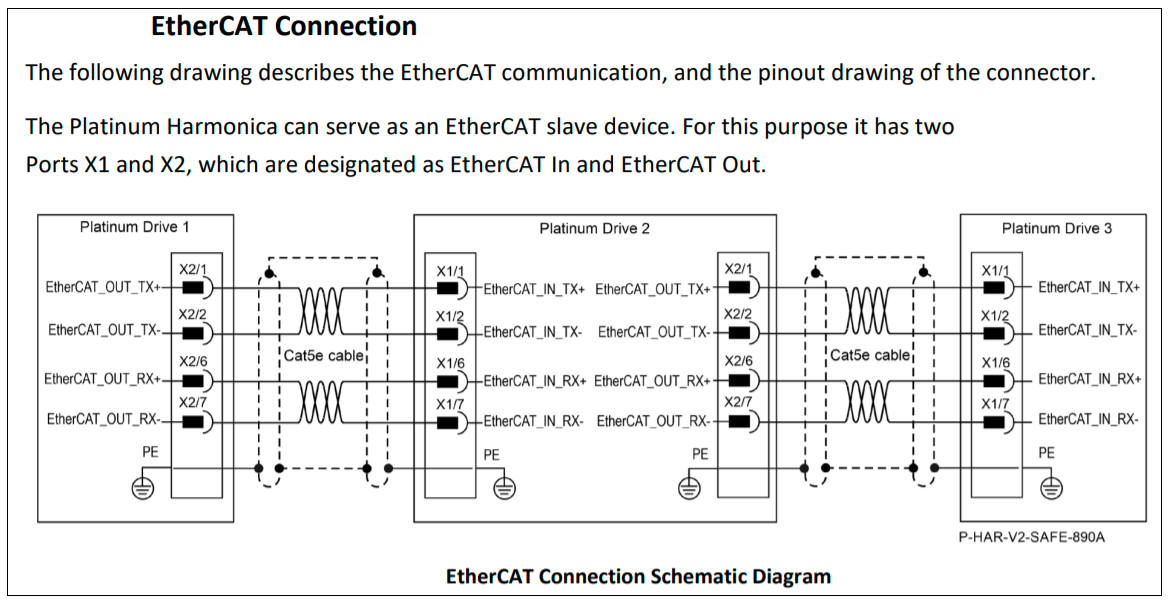

EtherCAT Field bus with high precision synchronization with the Servo Loops

Integrated Safe I/Os (2 X SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs)

Platinum Series Highlights

Safer, Smarter, Smaller, Simpler

A New Era of Servo Control

Composer2

World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control dynamic ranges and resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording

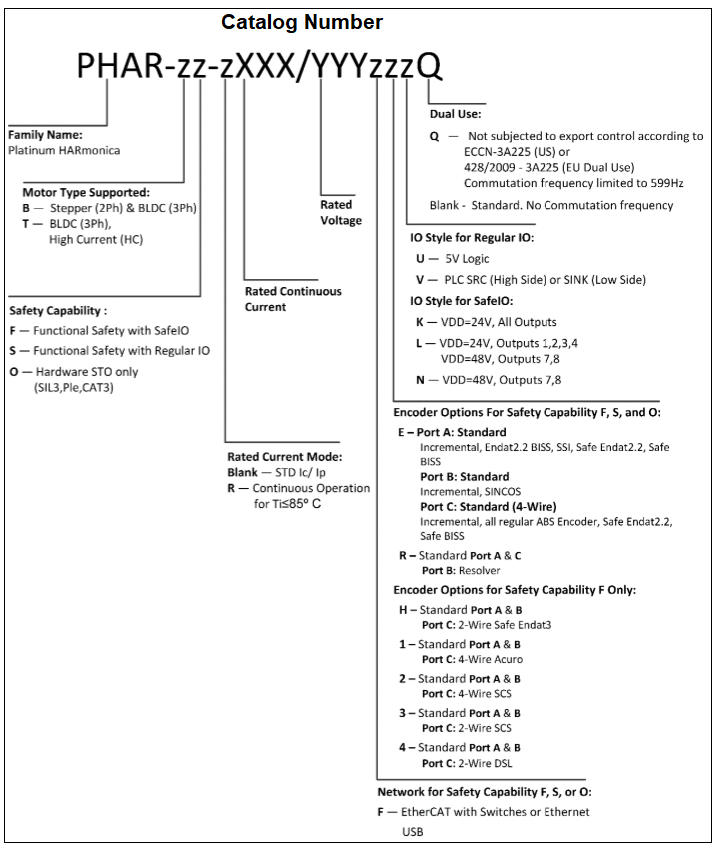

Catalog Number:PHAR-BF-1/100FEU, PHAR-BF-2.5/100FEU, PHAR-BF-5/100FEU, PHAR-BF-10/100FEU, PHAR-BF-15/100FEU, PHAR-BF-20/100FEU, PHAR-BF-25/100FEU, PHAR-BF-3/200FEU, PHAR-BF-6/200FEU, PHAR-BF-9/200FEU, PHAR-BF-25/100FEU, PHAR-BF-35/100FEU, PHAR-BF-50/100FEU, PHAR-BF-R50/100FEU, PHAR-BF-R45/150FEU, PHAR-BF-R15/200FEU, PHAR-BF-R35/20
