Elmo Motion Control: Gold Line Servo Drives (Gold Solo Guitar)
High Power, Stand-alone Network-based Servo Drive,Up to 50A/100V and up to 20A/200V

The Gold Solo Guitar is an advanced high power density servo drive. It provides top servo performance, advanced networking and built in safety, all in a small PCB mountable package.

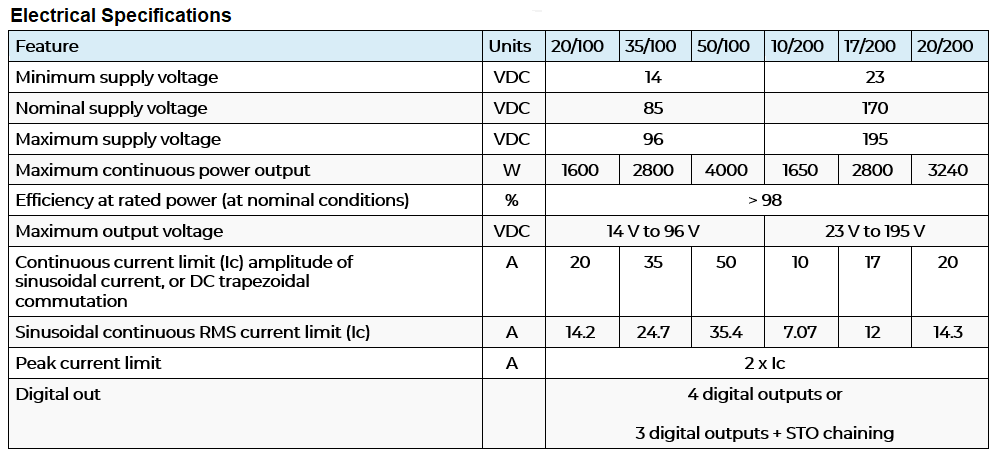

Gold Solo Guitar has a fully featured motion controller and local intelligence and delivers up to 4.1 kW of continuous power or 8.2 kW of peak power in a compact package 51.8 (H) x 80 (L) x 61 (W) mm (2.039″ x 3.15″ x 2.402″).

The Gold Solo Guitar is an integrated solution designed to be simply and efficiently connected directly to the application. The solution consists of the Gold Solo Guitar together with a convenient connection interface which either eliminates or reduces development time and resources when designing an application’s PCB board. The Gold Solo Guitar drive is easily set up and tuned using Elmo Application Studio (EAS) software tools. As part of the Gold product line, it is fully programmable with the Elmo motion control language.

The Gold Solo Guitar is available in a variety of options. There are multiple power rating options, three different communications options – Standard (S suffix in the part number), EtherCAT (E suffix in the part number), or EtherCAT with switches (Option F in the part number), a variety of feedback selections and I/O configuration possibilities.

Gold Solo Guitar Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient, high bandwidth performance

Multiple communication options: EtherCAT, CANopen, USB, Ethernet, RS-232

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

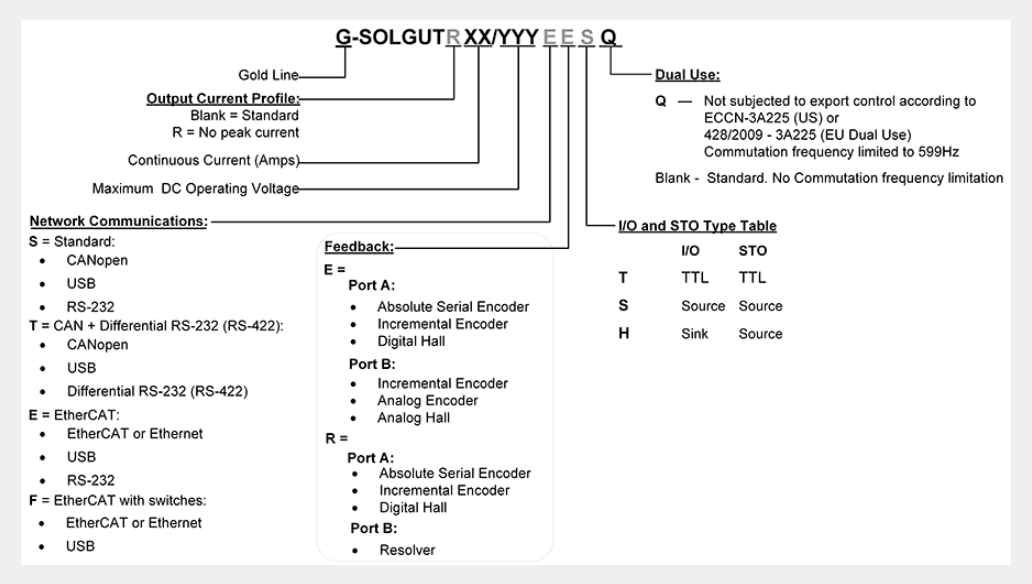

Catalog Number: G-SOLGUT20/100EES, G-SOLGUT35/100EES, G-SOLGUT50/100EES, G-SOLGUT10/200EES, 17/200, G-SOLGUT20/200EES
