Elmo Motion Control: EXTRIQ GOLD, HARSH ENVIRONMENT SERVO SOLUTIONS (Gold Jaguar)

Ultra Small, High Voltage Servo Drive-Up to 7A, 400VDC, Up to 2300W of Qualitative Power

Operating at -40°C to+70°C, Vibrations up to 14GRMS

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

The Gold Jaguar – Gold Line intelligent servo drives – is designed to operate “Direct to Mains” from a high voltage DC power supply of up to 400 VDC, without the need for a transformer.

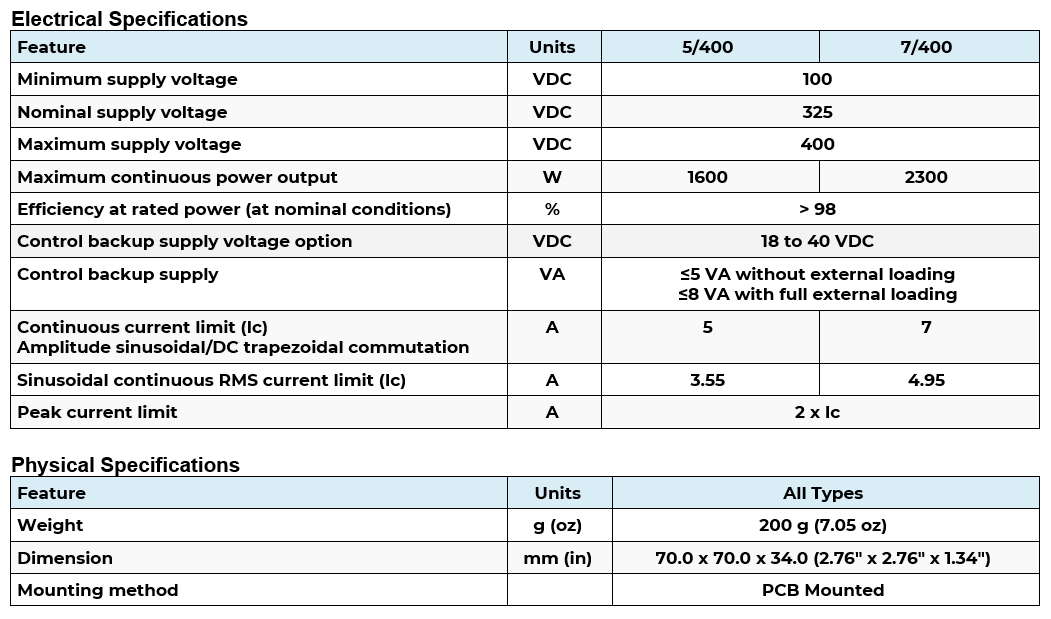

The Gold Jaguar, is a PCB-mounted durable servo drive enabling efficient and cost-effective implementation, which is designed to deliver up to 2300 W of continuous power or 4600 W of peak power, and intelligence, in a compact package.

The Gold Jaguar meets the highest level of motion control application at extreme environmental conditions, providing top servo performance, advanced networking, built-in safety and high power density, combined with a fully featured motion controller and local intelligence and built-in safety, all in a very small very efficient package.

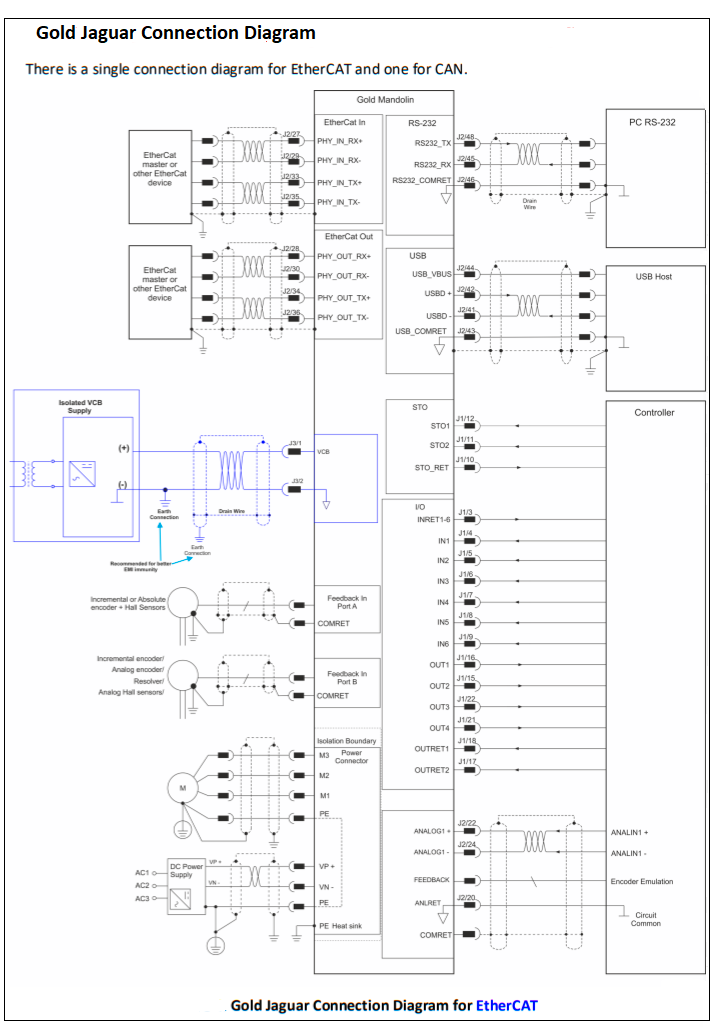

The Gold Jaguar operates from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. It is designed for use with any type of sinusoidal and trapezoidal commutation, with vector control.

Power to the Gold Jaguar is provided by a 100 to 400V Direct to Main DC source.

Like all Gold Line products, it is easily configured and tuned using the Elmo Application Studio (EAS) software environment and is fully programmable with the Elmo motion control language.

The Gold Jaguar is available in a variety of models with multiple power rating options, multiple communication options, feedback options and I/O configuration possibilities.

Mating Power Supply ELP-30.

Gold Jaguar Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient, high bandwidth performance

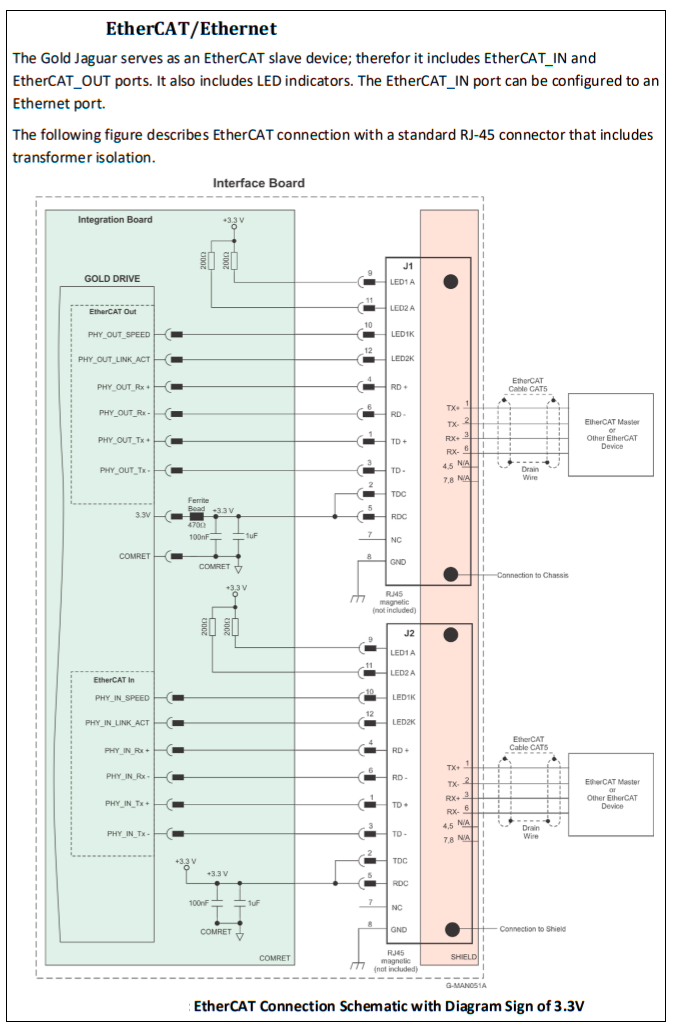

Multiple communication options: EtherCAT, CANopen, USB, Ethernet, RS-232

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

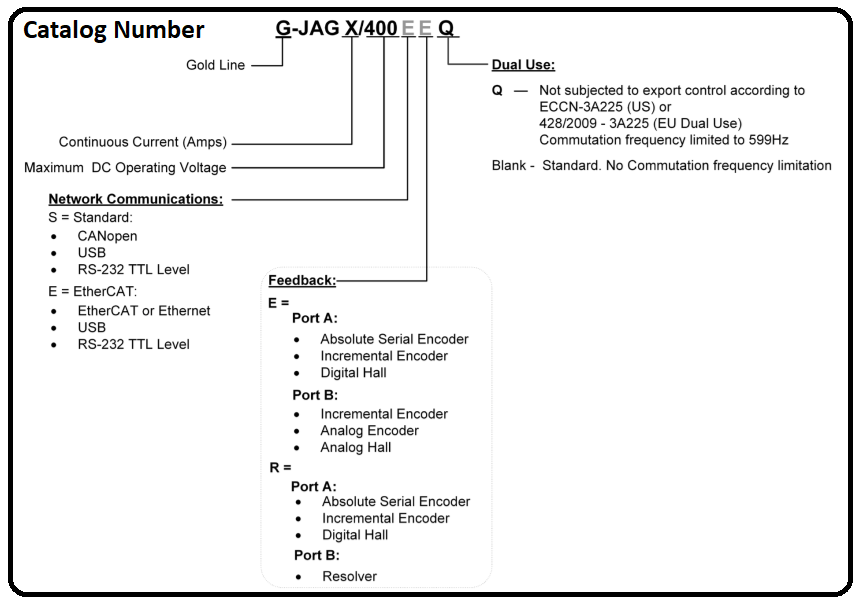

Catalog Number: G-JAG 5/400 SE, G-JAG 7/400 SE

Downloads:
