Daincube: Teach Pendant (DTP10 Series)
Daincube: Teach Pendant (DTP10)



Alternate View


833-9MOTION inquiry@e-motionsupply.com.
Price : $1,800.00

Price with Selected Options: $1,800.00

Quantity in Stock:1

Availability: DTP10-P-10M (Qty:2) in stock, lead time 2-4 weeks for other options.
Order #: DTP10


Options:


Qty:
Description Ordering Information Specifications and Drawings


Daincube: Teach Pendant (DTP10 Series)


Teach Pendant for industrial robots based on industrial safety regulations

  • MADE IN KOREA
  • It is a Mobile (Handy) Touch Panel Type & Embedded Type which supports various operating systems. (Supported operating systems: Windows 10 IoT Enterprise, Ubuntu 14.04, Windows Embedded Compact 7, Linux)

  • Designed ergonomically.

  • CE & KC & RoHS certifications.

Common Technical info

  • 10” 1280 * 800 TFT LCD & Touch

  • Emergency switch * 1

  • 3 Level enabling switch * 1

  • Select switch * 1

  • Motor ON switch * 1

  • Error clear switch * 1

  • Jog (+,-) key : 16

  • Function key : 2

  • Function LED : 3

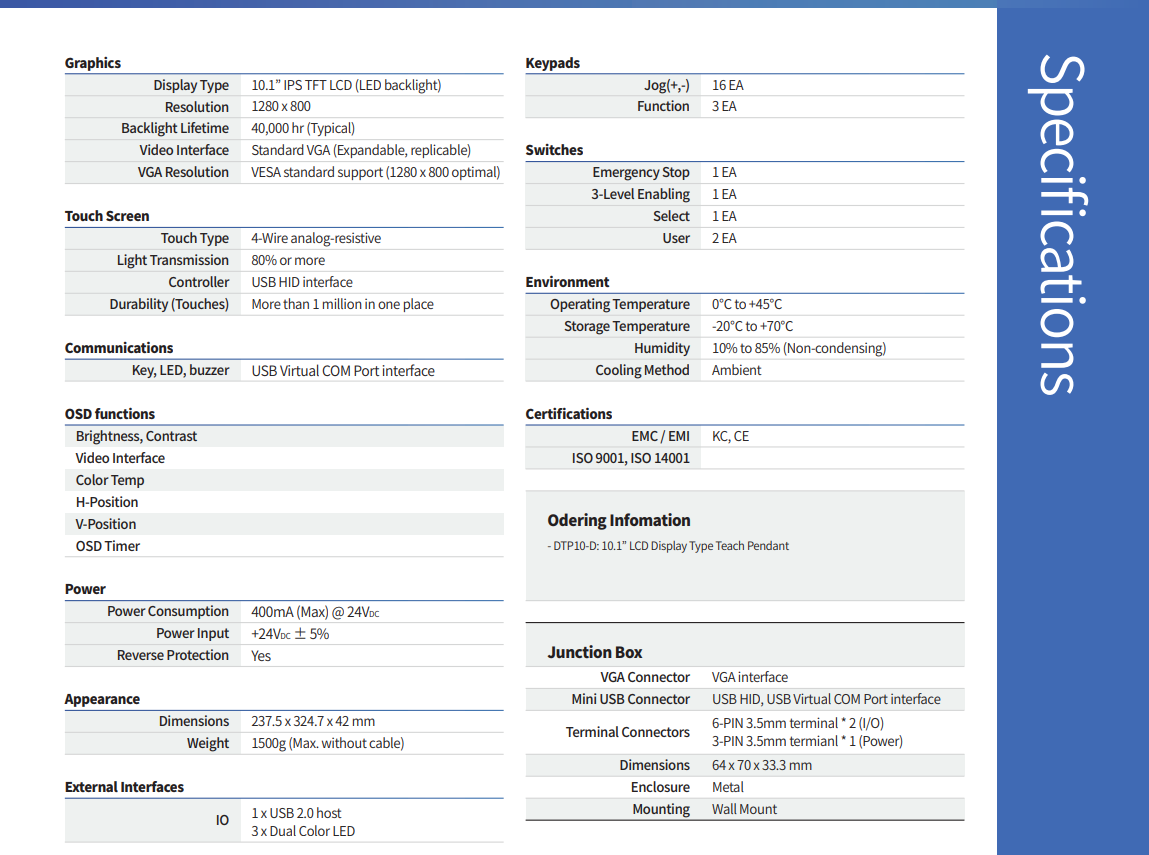

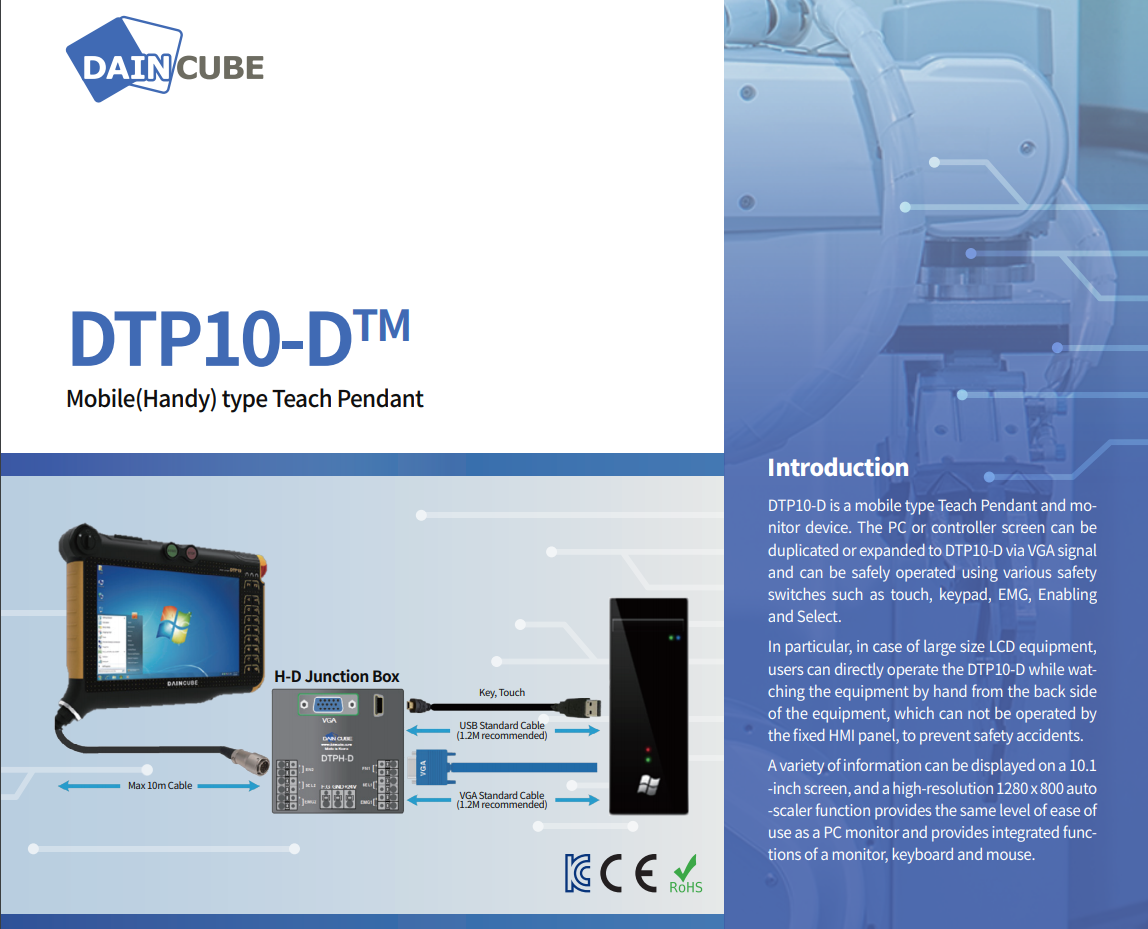

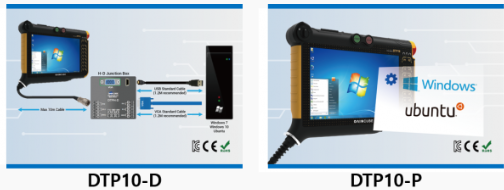

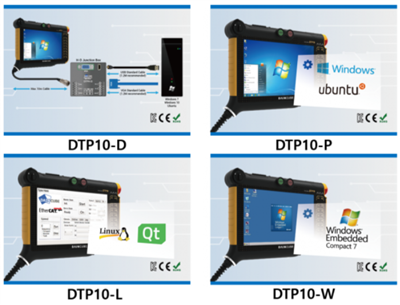

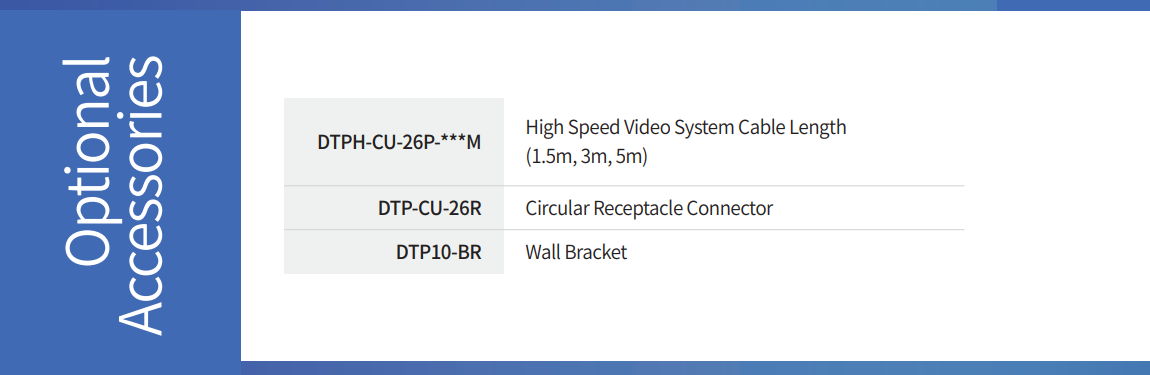

DTP10-D: Teach Pendant

Mobile (Handy) Touch Panel Type

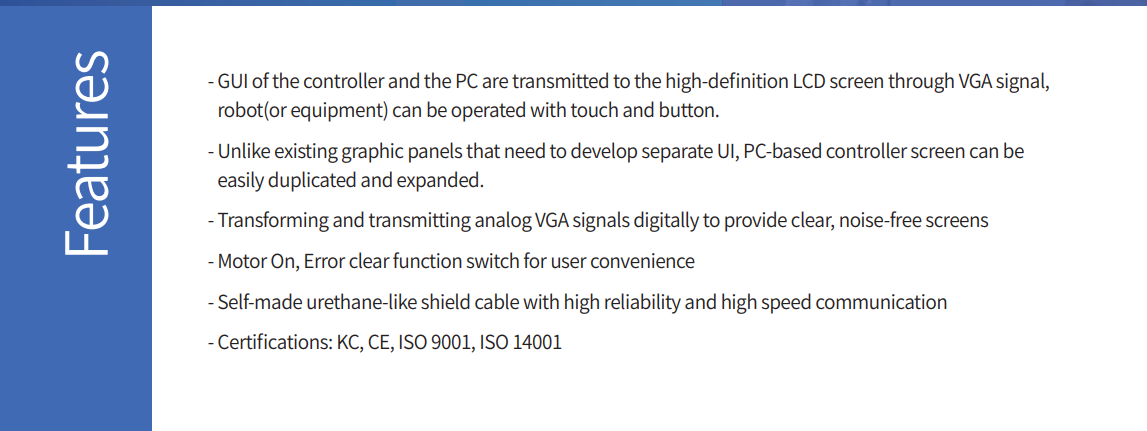

  • GUI of the controller and the PC are transmitted to the high-definition LCD screen through VGA signal, robot(or equipment) can be operated with touch and button.

  • Unlike existing graphic panels that need to develop separate UI, PC-based controller screen can be easily duplicated and expanded.

  • Transforming and transmitting analog VGA signals digitally to provide clear, noise-free screens

  • Motor On, Error clear function switch for user convenience

  • Self-made urethane-like shield cable with high reliability and high speed communication

  • Certifications: KC, CE, ISO 9001, ISO 14001

Technical info

  • 1280 x 800 resolution

  • Touch, keypad interface: USB Virtual COM Port support

  • Provide clear screen with no noises by transforming and transferring analog VGA signal.

  • Use a special cable shielded by each communication, power, VGA and safety signal.

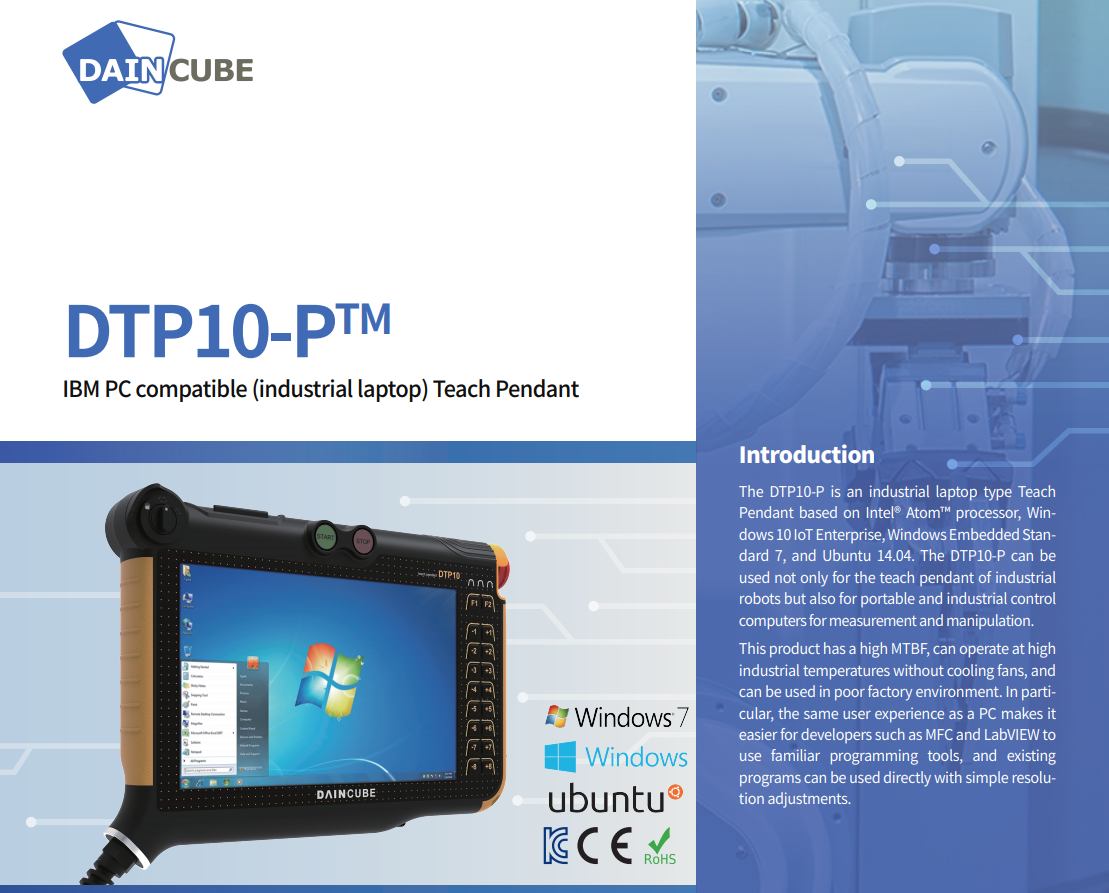

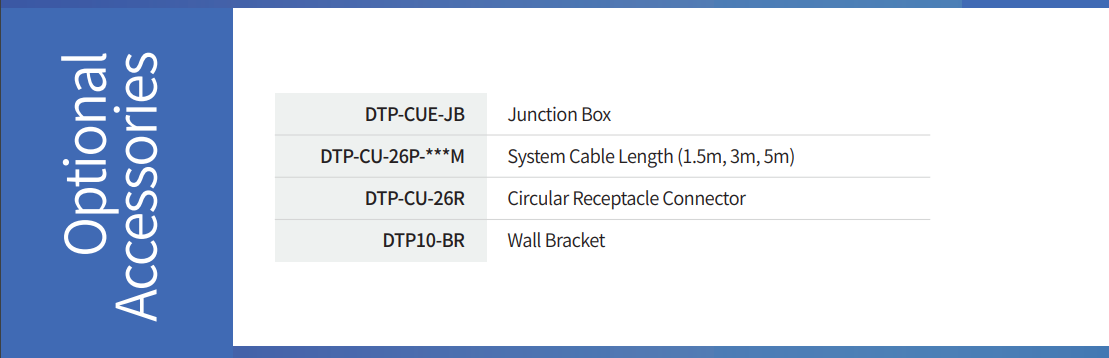

DTP10-P: Teach Pendant

IBM PC Compatible Type for Industrial Notebook.

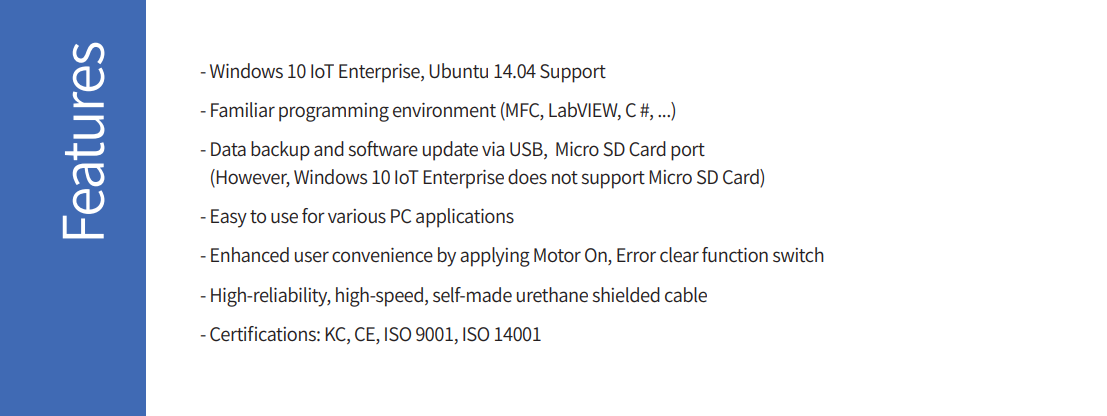

  • Windows 10 IoT Enterprise,32bits, Ubuntu 14.04 Support

  • Familiar programming environment (MFC, LabVIEW, C #, …)

  • Data backup and software update via USB, SD Card port (However, Windows 10 IoT Enterprise does not support SD Card)

  • Easy to use for various PC applications

  • Enhanced user convenience by applying Motor On, Error clear function switch

  • High-reliability, high-speed, self-made urethane shielded cable

  • Certifications: KC, CE, ISO 9001, ISO 14001

Technical info

  • Intel ATOM E3800 Series – 1.6GHz

  • DDR3 4GB

  • SSD storage (64GB), additional storage

  • Communicates with controller: RS-232, RS-485, Ethernet

DTP10-P700: Teach Pendant

IBM PC Compatible Type for Industrial Notebook.

  • Windows 10 IoT Enterprise,64bits, Ubuntu 14.04 Support

  • Familiar programming environment (MFC, LabVIEW, C #, …)

  • Data backup and software update via USB, SD Card port (However, Windows 10 IoT Enterprise does not support SD Card)

  • Easy to use for various PC applications

  • Enhanced user convenience by applying Motor On, Error clear function switch

  • High-reliability, high-speed, self-made urethane shielded cable

  • Certifications: KC, CE, ISO 9001, ISO 14001

Technical info

  • Intel® Pentium® Processor N4200, Quad Core 2.5GHz

  • DDR3 4GB

  • SSD storage (64GB), additional storage

  • Communicates with controller: RS-232, RS-485, Ethernet

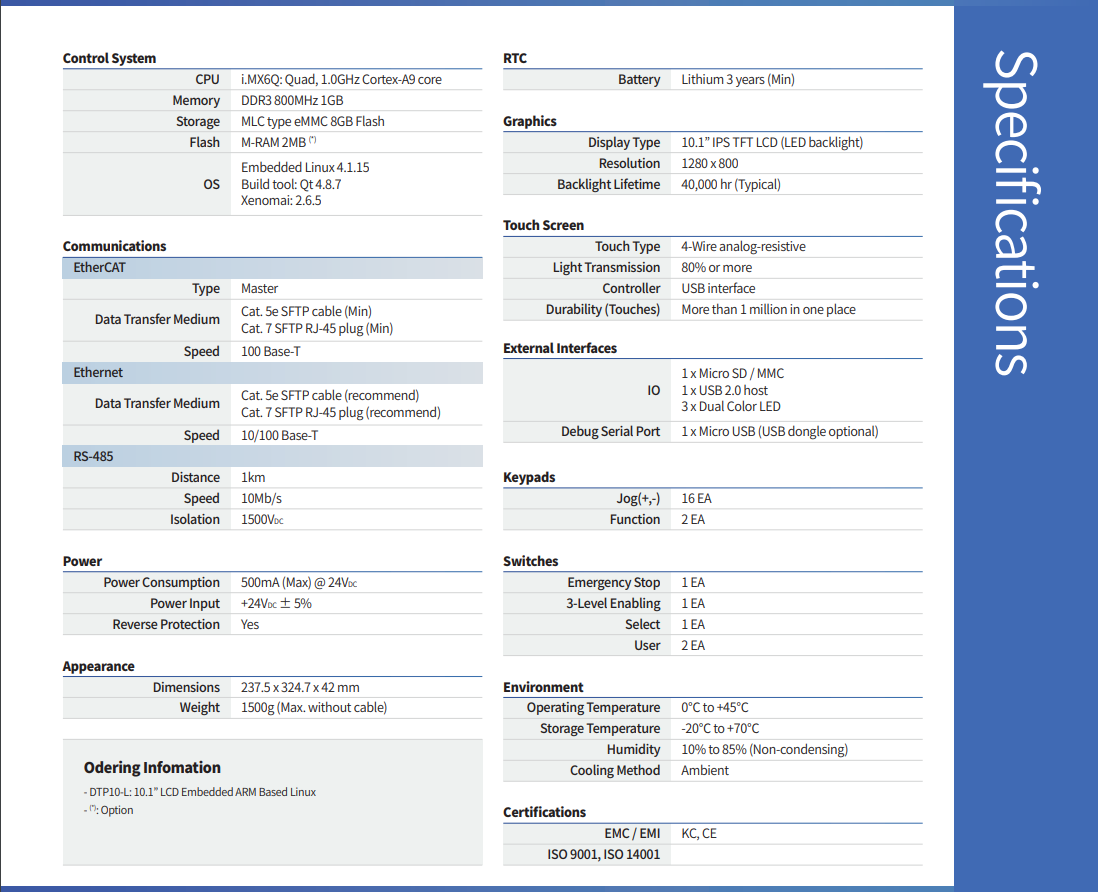

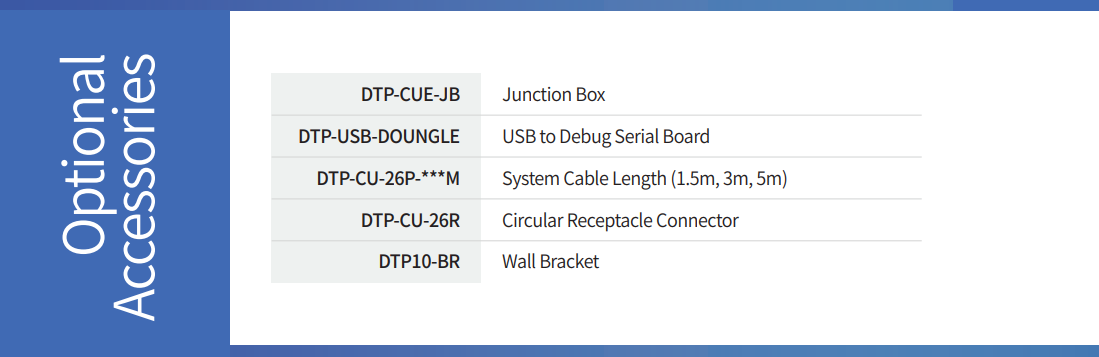

DTP10-L: Teach Pendant

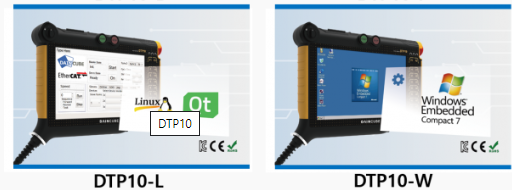

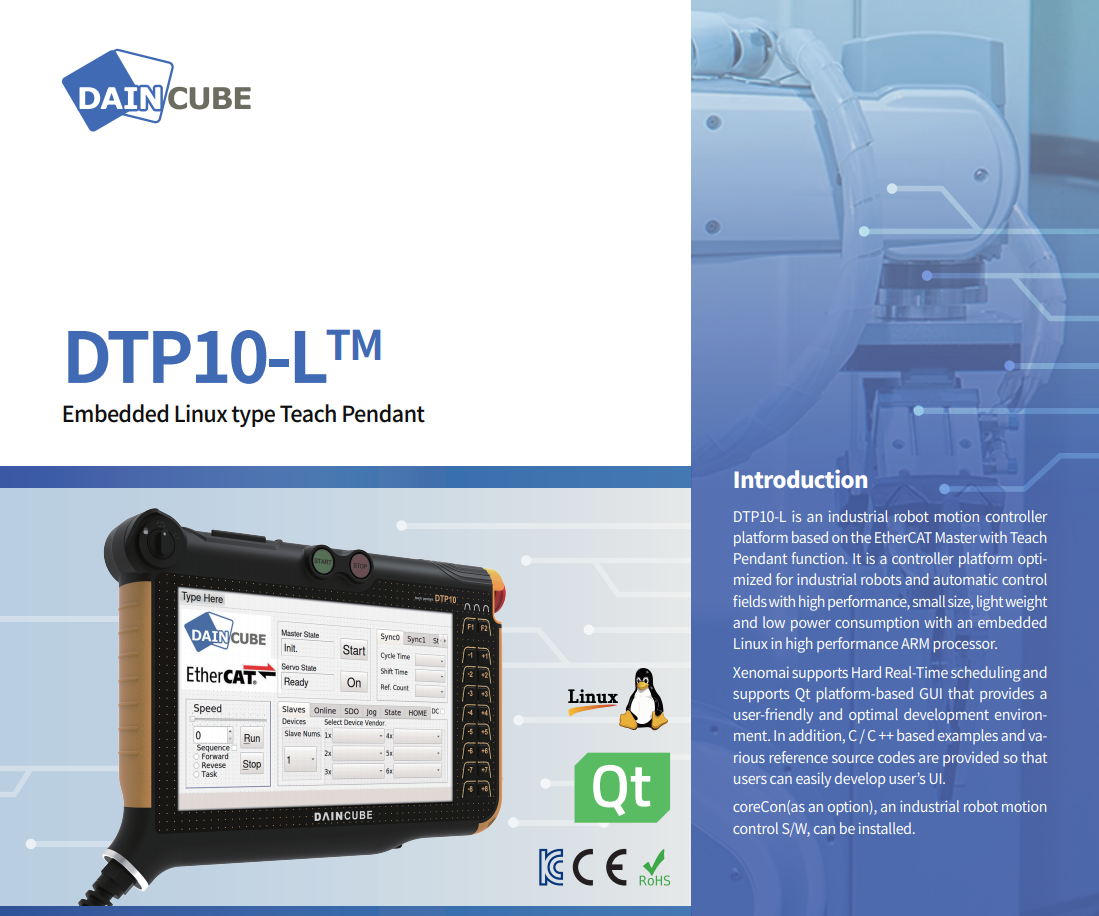

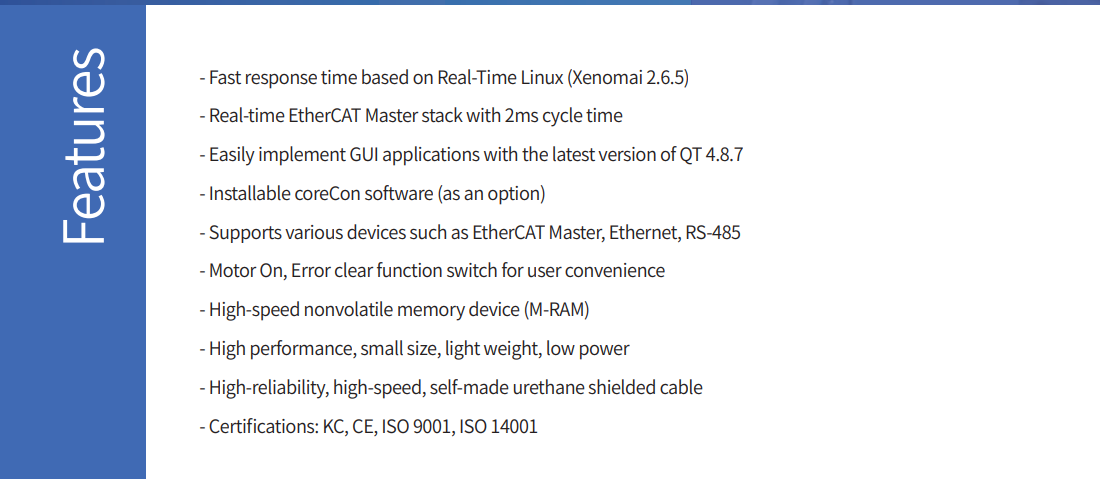

Embedded Linux Type

  • Fast response time based on Real-Time Linux (Xenomai 2.6.5)

  • Real-Time EtherCAT Master stack with 2ms cycle time

  • Easily implement GUI applications with the latest version of QT 4.8.7

  • Installable coreCon software (as an option)

  • Supports various devices such as EtherCAT Master, Ethernet, RS-485; Motor On, Error clear function switch for user convenience

  • High-speed nonvolatile memory device (M-RAM)

  • High performance, small size, light weight, low power

  • High-reliability, high-speed, self-made urethane shielded cable

  • Certifications: KC, CE, ISO 9001, ISO 14001

Technical info

  • ARM Cortex-A9 – 1GHz x 4(11500 DMIPS)

  • DDR3 1GB

  • USB Host, USB Device, Micro SD Card

  • Communicates with controller : RS-485, Ethernet x 2

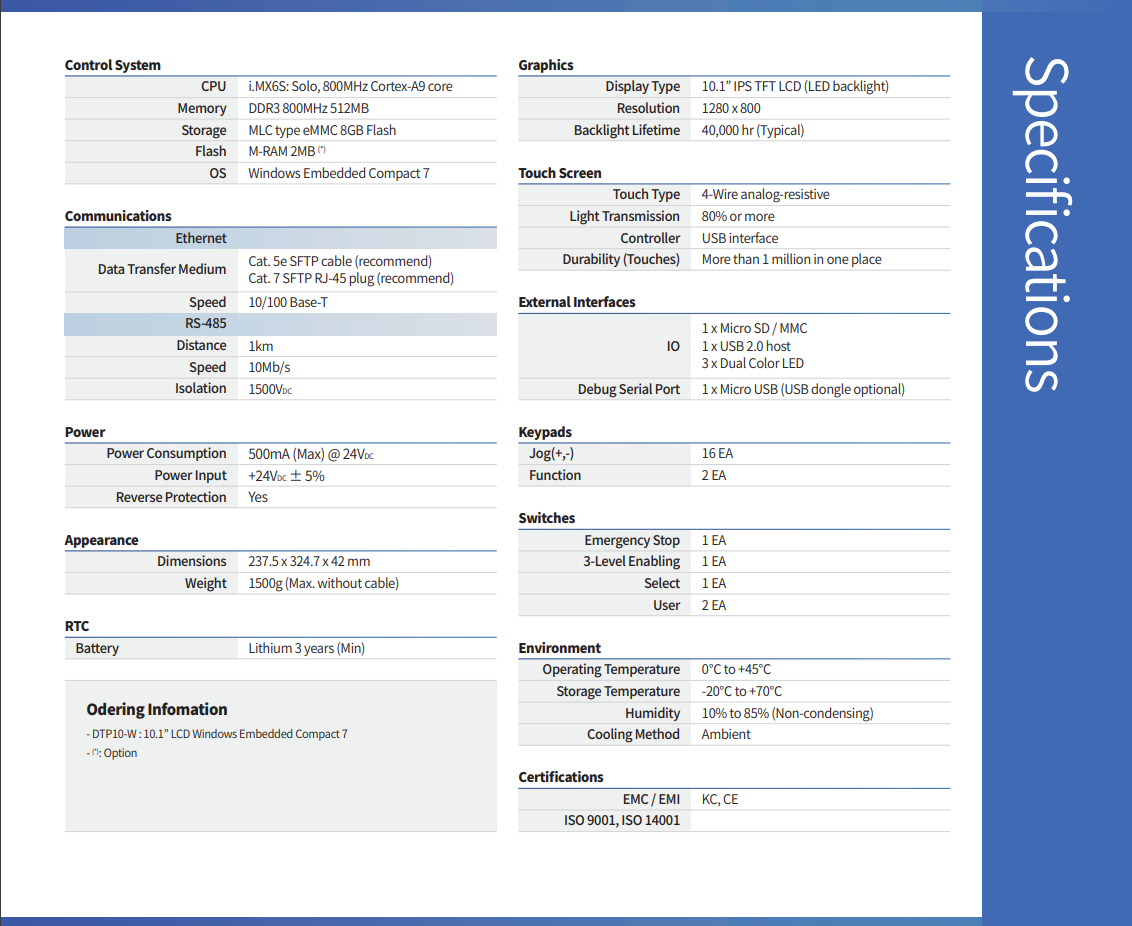

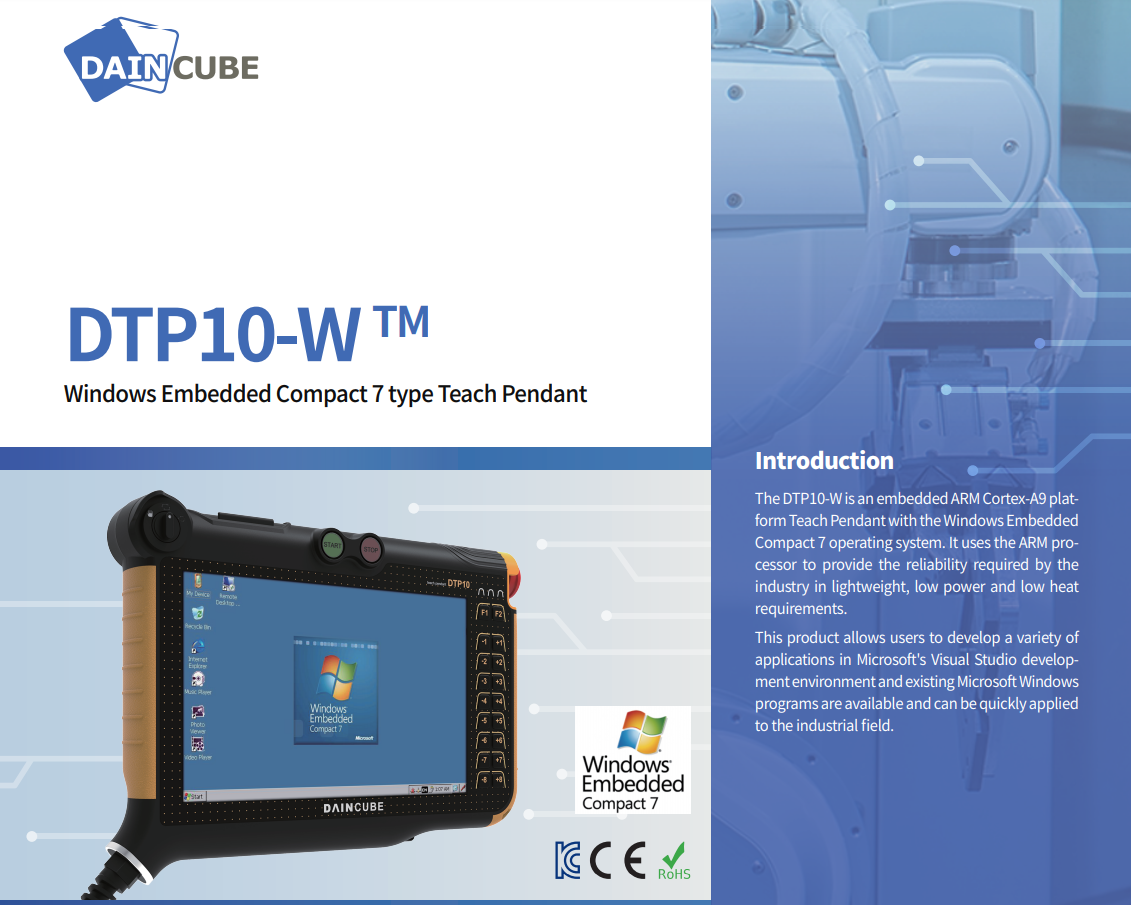

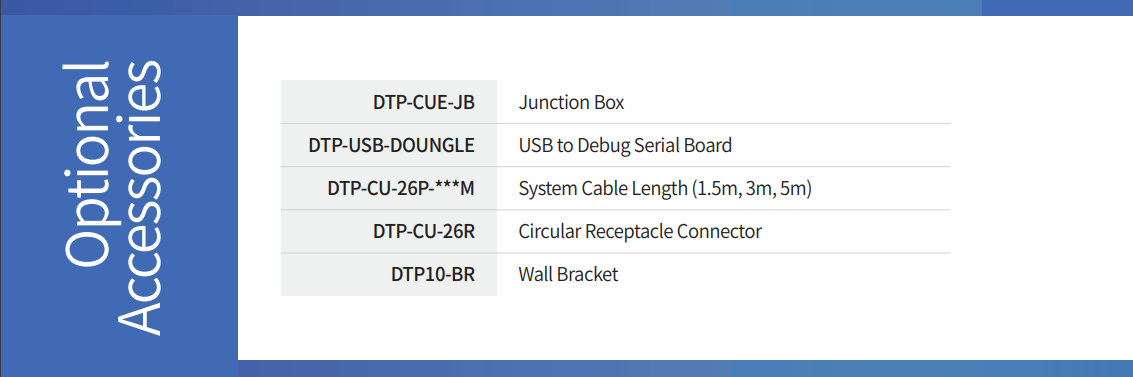

DTP10-W:Teach Pendant

Windows CE Type

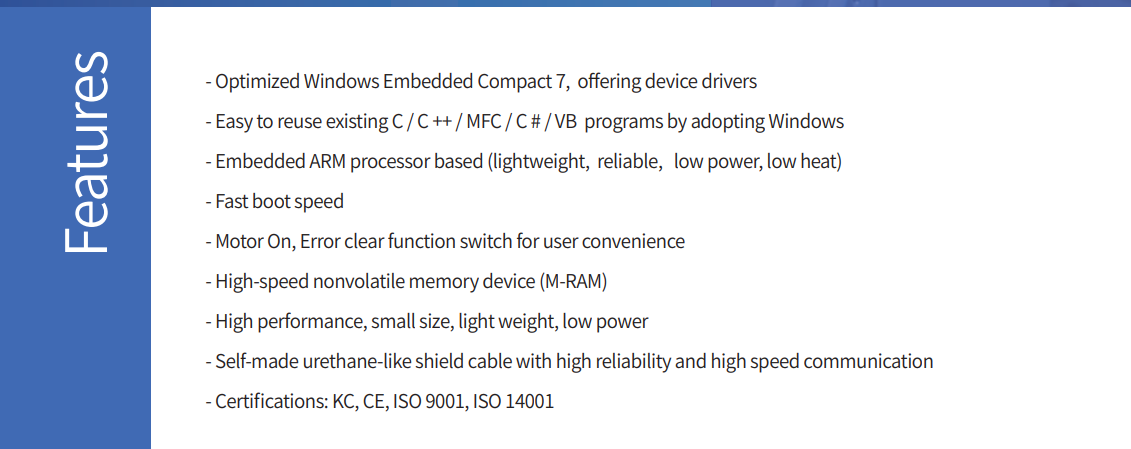

  • Optimized Windows Embedded Compact 7, offering device drivers

  • Easy to reuse existing C / C ++ / MFC / C # / VB programs by adopting Windows

  • Embedded ARM processor based (lightweight, reliable, low power, low heat)

  • Fast boot speed

  • Motor On, Error clear function switch for user convenience

  • High-speed nonvolatile memory device (M-RAM)

  • High performance, small size, light weight, low power

  • Self-made urethane-like shield cable with high reliability and high speed communication

  • Certifications: KC, CE, ISO 9001, ISO 14001

Technical info

  • Windows Embedded Compact 7

  • ARM Cortex-A9 1GHz

  • DDR3 1GB

  • USB, Micro SD Card

  • Communicates with controller : RS-232, RS-485, Ethernet

_______
Options:
DTP10-D-10M: with 10M cable-26p and junction box,
DTP10-D-5M: with 5M cable-26p and junction box,
DTP10-D-7M: with 7M cable-26p and junction box,
DTP10-L-10M: with 10M cable-26p and junction box,
DTP10-L-5M: with 5M cable-26p and junction box,
DTP10-L-7M: with 7M cable-26p and junction box,
DTP10-P-10M: with 10M cable-26p and junction box,
DTP10-P-5M: with 5M cable-26p and junction box,
DTP10-P-7M: with 7M cable-26p and junction box,
DTP10-W-10M: with 10M cable-26p and junction box,
DTP10-W-5M: with 5M cable-26p and junction box,
DTP10-W-7M: with 7M cable-26p and junction box
