WAGO: Fieldbus Coupler CANopen (750-337)
WAGO: Fieldbus Coupler CANopen (750-337)




Fieldbus Coupler CANopen, MCS, 10kBd...1MBd, max. 110 Fieldbus Nodes, DIN-rail,
Price : $713.60

Quantity in Stock:34

Availability: Usually Ships in 3 to 5 Business Days
Order #: 750-337
Qty:

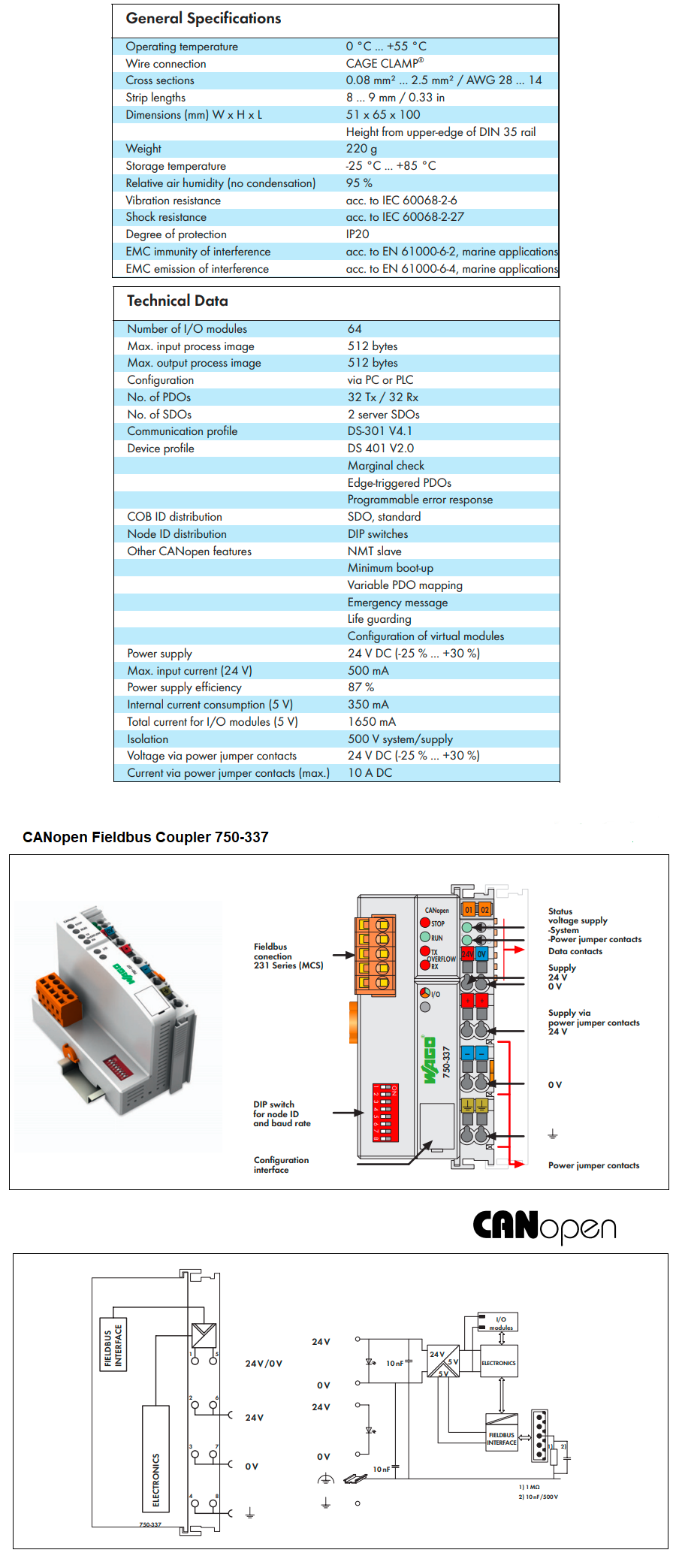

Description Specifications and Drawings


Fieldbus Coupler CANopen 750-337

This fieldbus coupler connects the WAGO I/O System as a slave to the CANopen fieldbus. Data is transmitted via PDOs and SDOs. The fieldbus coupler detects all connected I/O modules and creates a local process image. Analog and specialty module data is sent via words and/or bytes, digital data is sent bit by bit.

The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the CANopen bus to a control system for further processing. The process output data is sent via the CANopen bus.

The data of the analog modules is stored in the PDOs according to the order in which the modules are connected to the coupler. The bits from the digital modules are sent byte by byte and also mapped in the PDOs. If the amount of digital I/O information exceeds eight bits, the coupler automatically starts with a new byte. All entries of the object directory can be mapped as required in the 32 Rx PDOs and 32 Tx PDOs. The complete input and output process image can be transmitted using SDOs. Spacer modules can be set via software.
Technical data

Communication

CANopen

Number of fieldbus nodes on master (max.)

110

Baud rate

10 kBd … 1 MBd

Bus segment length (max.)

1000 m

Transmission medium

Shielded Cu cable 3 x 0.25 mm²

Number of modules per node (max.)

64

Other CANopen features

NMT slave
Minimum boot-up
Variable PDO mapping
Emergency message
Life guarding
Virtual module configuration

Number of PDOs

32 Tx / 32 Rx

Number of SDOs

2 SDO servers

COB ID distribution

SDO, standard

Node ID distribution

DIP switch

Communication profile

DS-301 V4.1

Device profile

DS-401 V2.0
Limit value monitoring
Edge-triggered PDOs
Configurable response in the event of an error

Input and output process image (fieldbus) max.

512 bytes/512 bytes

Supply voltage (system)

24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)

Current consumption (5 V system supply)

350mA

Total current (system supply)

1,650mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts

Input current (typ.) at nominal load (24 V)

500mA

Power supply efficiency (typ.) at nominal load (24 V)

87%

Isolation

500 V system/field

Number of outgoing power jumper contacts

3

Current carrying capacity (power jumper contacts)

10A
