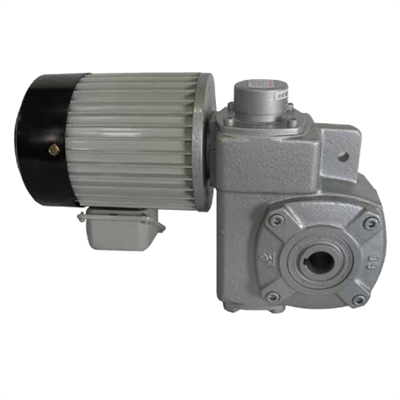

LIMING: Shaft-Mounted Worm Reducers (COHM series) COHM60-200-1/2
LIMING: Shaft-Mounted Worm Reducers COHM series COHM60-200-1/2

Price : $1,525.00


Availability: 1-3 weeks
Order #: COHM60-200-2
Qty:

Description Ordering Information Specifications and Drawings


LIMING: Shaft-Mounted Worm Reducers (COHM series) COHM60-200-1/2

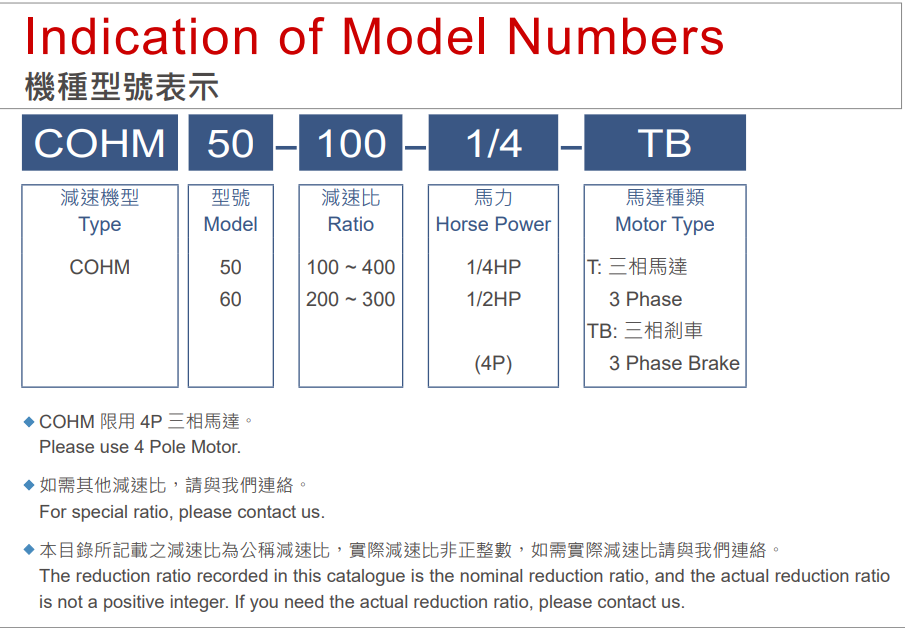

COHM60-200-1/2 refers to a Liming brand worm gear speed reducer with a 60mm center distance, a 1:200 reduction ratio, and designed for use with a 1/2 horsepower motor.

Liming (Li-Ming) Industrial Co., a known manufacturer of gear reducers.

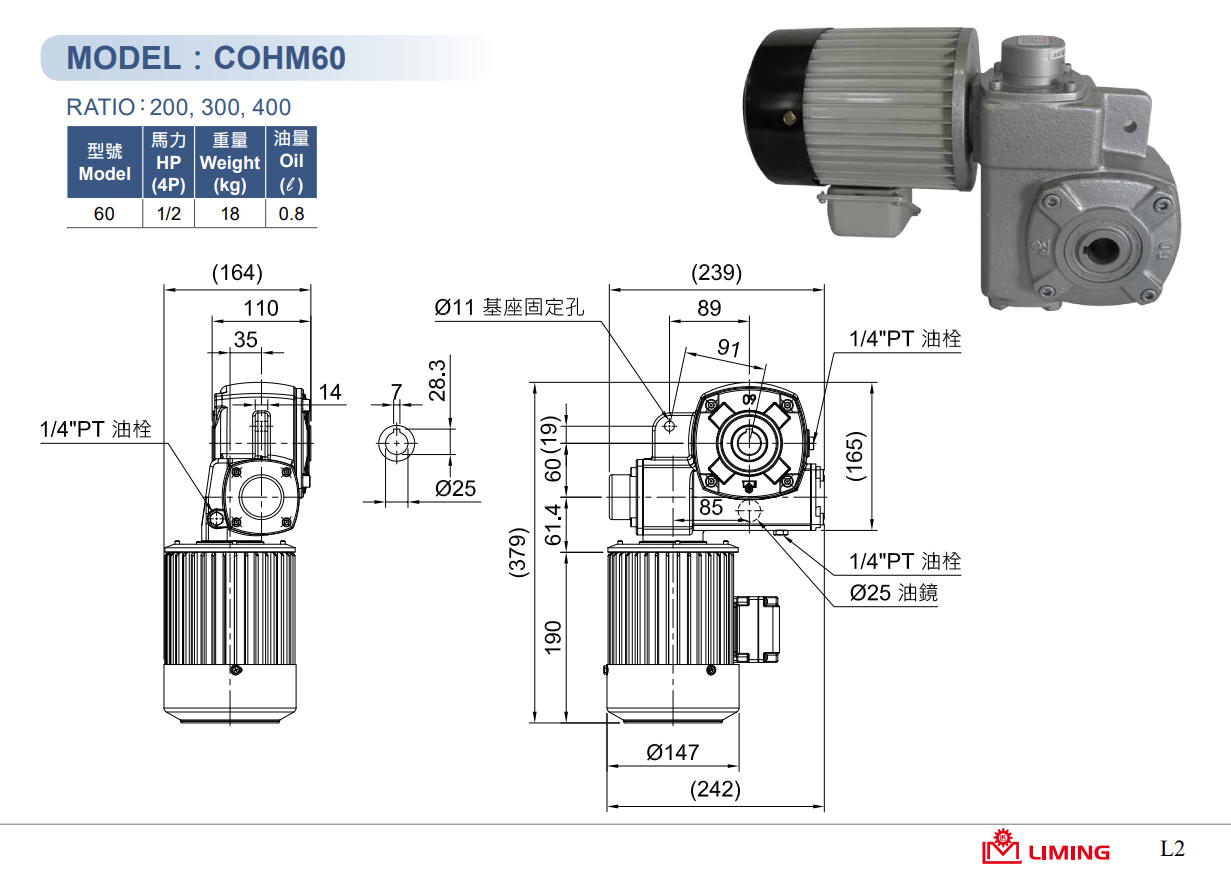

COHM60: Refers to the specific model or series of the worm gear reducer, likely indicating an aluminum case (HM) with a 60mm center distance (60).
200: Specifies the gear reduction ratio, meaning the output shaft rotates once for every 200 rotations of the input shaft.
1/2HP: Indicates the power rating of the motor the reducer is designed to pair with, specifically 1/2 horsepower.

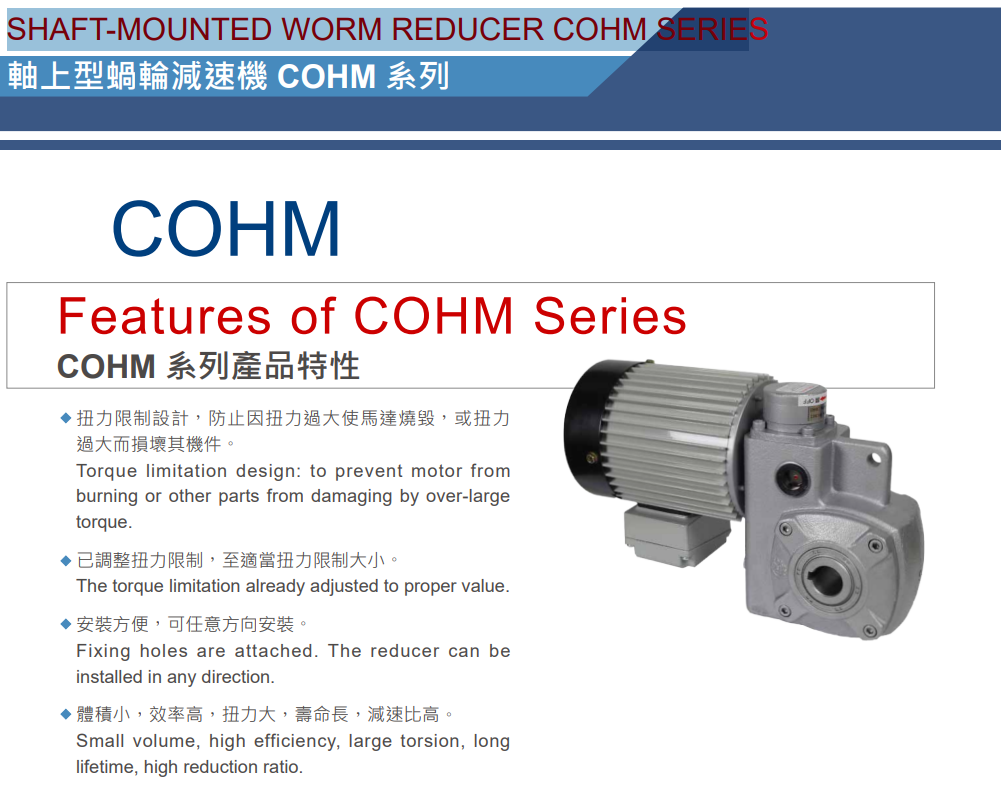

These types of gear reducers are generally used to reduce speed, increase torque, and minimize torsional inertia in various industrial automation and transmission systems.

Ordering:
LM-COHM60-1/200-1/2HP(0.4 KW) W/ MOTOR 50/60HZ 200/400V
