Renishaw: ATOM™ incremental encoder system linear scale A-9404-2100
Renishaw: ATOM Scales, Model: A-9404-2100



Renishaw
Price : $150.00


Availability: 16 to 20 Weeks
Order #: A-9404-2100
Qty:

Description Ordering Information Specifications and Drawings


Renishaw: ATOM™ incremental encoder system linear scale A-9404-2100ATOM™ encoder series

ATOM is Renishaw's miniature non-contact optical incremental linear and rotary encoder system. Its innovative design combines miniaturisation with leading-edge signal stability, dirt immunity and reliability. This combination is unique in the market place and represents a significant advance in the performance and reliability of miniature encoders.

ATOM systems are simple to install with integrated LED for signal integrity indication.

A range of interfaces is available including high-performance Ti, Ri and the compact PCB ACi interface.

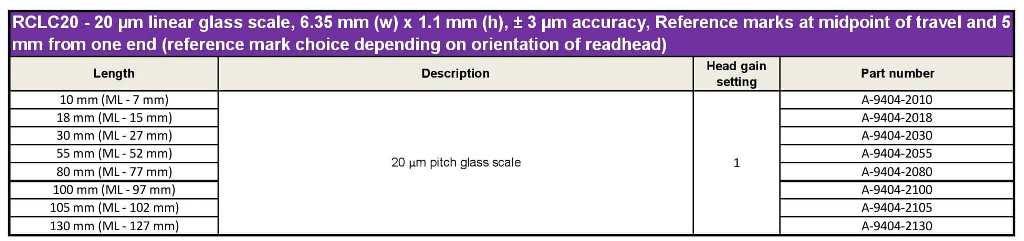

RCLC20 - 20 µm linear glass scale, 6.35 mm (w) x 1.1 mm (h), ± 3 µm accuracy, Reference marks at midpoint of travel and 5 mm from one end (reference mark choice depending on orientation of readhead)

Length

Description

Head gain setting

Part number

Price US$

10 mm (ML - 7 mm)

20 µm pitch glass scale

1

A-9404-2010

79

18 mm (ML - 15 mm)

A-9404-2018

79

30 mm (ML - 27 mm)

A-9404-2030

83

55 mm (ML - 52 mm)

A-9404-2055

98

80 mm (ML - 77 mm)

A-9404-2080

121

100 mm (ML - 97 mm)

A-9404-2100

150

105 mm (ML - 102 mm)

A-9404-2105

150

130 mm (ML - 127 mm)

A-9404-2130

162
