Renishaw ; RGS20-S SCALE KIT 1500MM LONG (1.5 meters) A-9523-6150

Home > Renishaw >

Renishaw : RGS20-S SCALE KIT 1500MM LONG (1.5 meters) A-9523-6150

Renishaw ; RGS20-S SCALE KIT 1500MM LONG (1.5 meters) A-9523-6150

Alternate View

Price : $579.00

Availability: 1-3 weeks lead time
Order #: A-9523-6150

Qty:

Description

Ordering Information

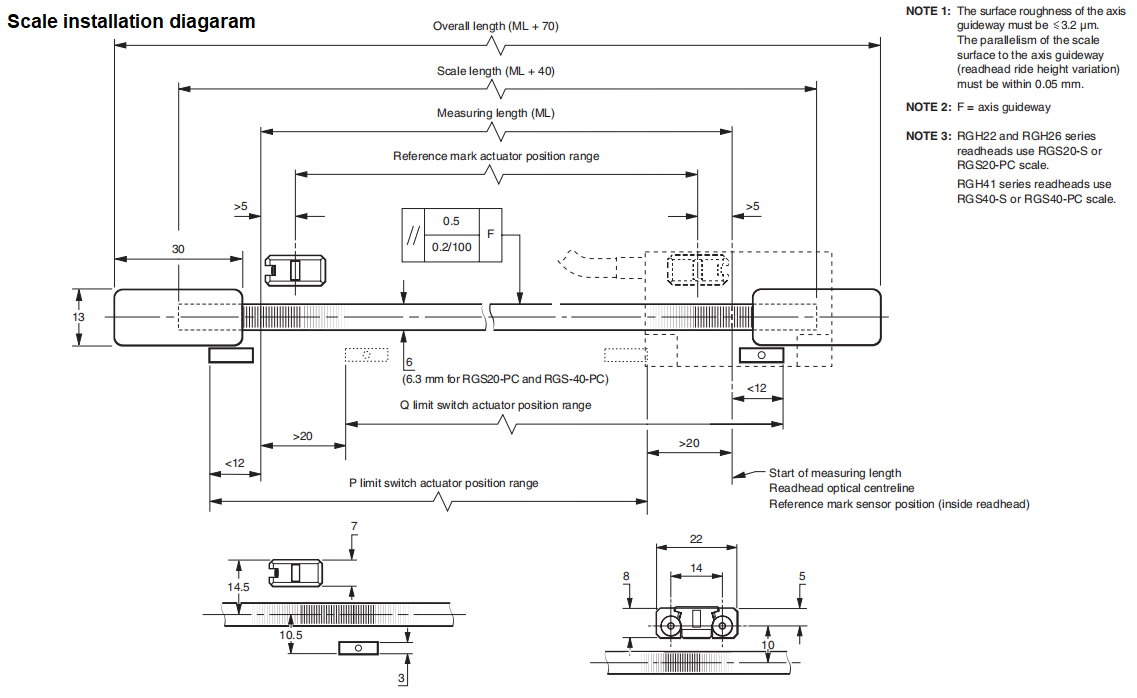

Specifications and Drawings

Renishaw: RGS20-S SCALE KIT 1500MM LONG (1.5 meters) A-9523-6150

RGS20-S is a robust, 6 mm wide stainless steel encoder tape scale with a thickness of 0.15 mm. This allows the scale, when rigidly fixed to a machine axis, to become 'mastered' to the machine substrate, matching its thermal expansion coefficient and behaviour.
