QuickSilver Control:Closed Loop Stepping Drive,QCI-D2-MG
QuickSilver Control:Closed Loop Stepping Drive,QCI-D2-MG



Price : $850.00


Order #: QCI-D2-MG
Qty:

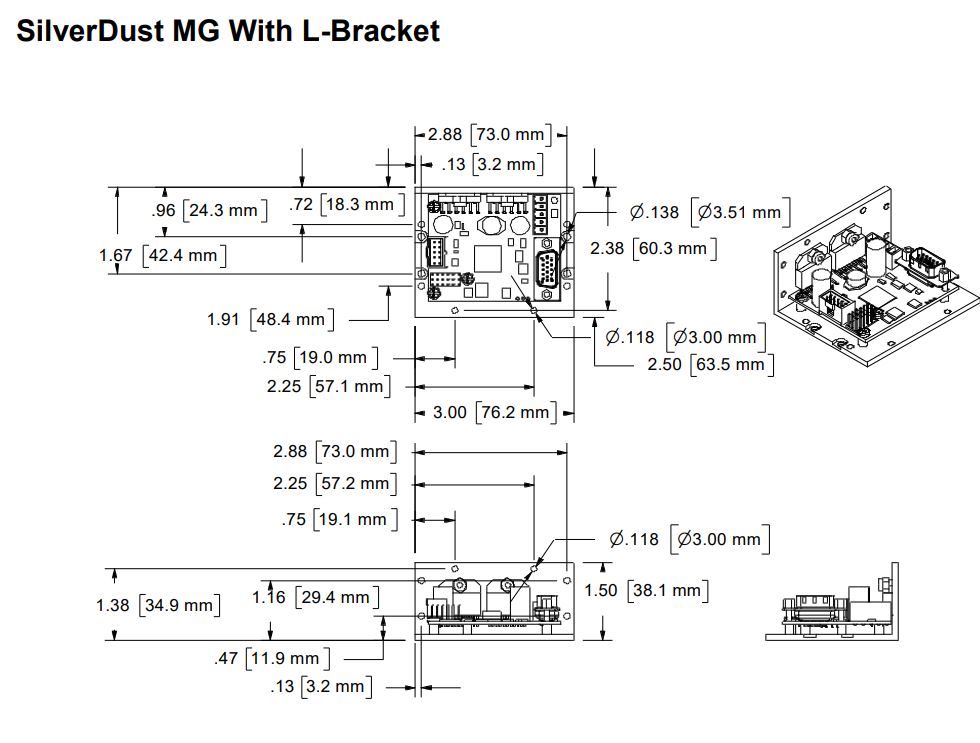

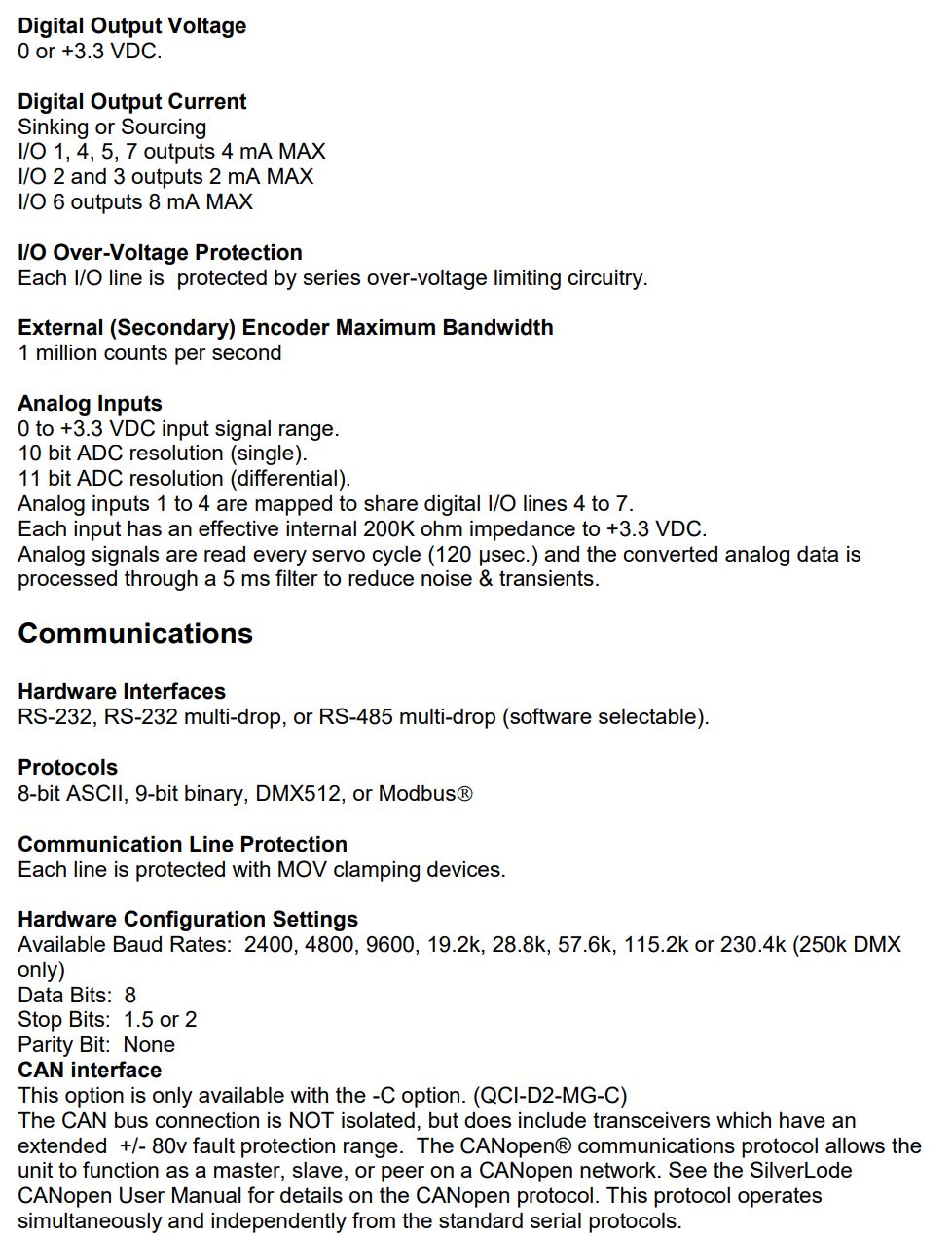

Description Specifications and Drawings

Introduction
The SilverDust D2-MG is QuickSilver Controls’ smallest servo controller. The SilverDust D2-MG is specifically designed to drive 100 poles, 1.8° step motors. To best utilize the capabilities of the D2-MG, select a motor that has been optimized for micro stepping. Its open frame design and motor winding breakout is ideal for OEMs driving a 3rd party stepper motors in either open loop (no encoder) or closed loop. The D2-MG comes standard with an SMI port, including 7 TTL IO, RS-232/RS-485, and system power input.

D2-MG Features

  • Open-Frame
  • DIN Mountable
  • CANopen Factory Option
  • Popular with OEM’s
COMPATIBLE MOTORS

Support 3rd Party Stepper Motors (open-loop or closed-loop)

POWER

Input Voltage: +12 VDC to +48VDC, regulated

Input Current: 4A Max

Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink

COMMUNICATIONS

RS232/RS-485 (software configurable)

8-Bit ASCII

9-Bit Binary

Modbus® RTU

DMX-512® Factory Option

CANopen® Factory Option

INPUTS/OUTPUTS

7 Digital LVTTL Inputs or Outputs (0 to 3.3v)

I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)

I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)

I/O#1: Capture PWM Signal for RC Control

SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)

Supports Single-ended and Differential Encoders

PRIMARY ENCODER RESOLUTION

500lines = 2000 counts/revolution (minimum recommended resolution)

1000 Lines = 4000 counts/revolution

2000 Lines = 8000 counts/revolution

4000 Lines = 16000 counts/revolution
