ESI Motion: Ultra-Low Weight & Compact Sized Dual-Axis Servo Drive Module AXXXA80VX (Atom)
ESI Motion: Dual Axis Servo Drive Module -Atom



Request for Quantity and Price

ESI Motion’s Atom leads the industry with its extremely small size and low weight. The Atom is a high-performance digital servo controller that can source 100 Amps with an 80 VDC bus to drive the most demanding applications.


Availability: Subject to availability
Order #: AXXXA80VX


Accessories*:

Model*:

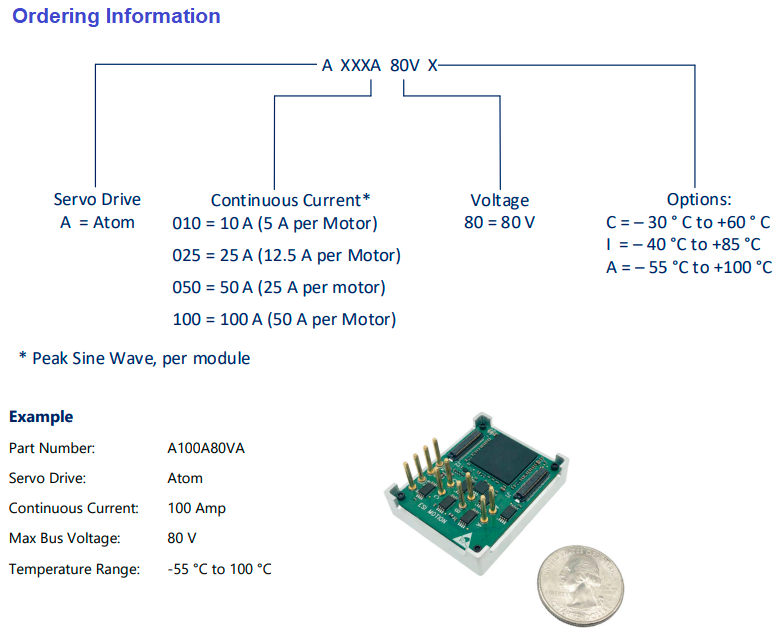

Option Example: A = Atom. 10 = 10 A Continuous Current. 80 = 80 V. Options: I= – 40 °C to +85 °C. A= – 55 °C to +100 °C. C= – 30 ° C to +60 ° C.

.

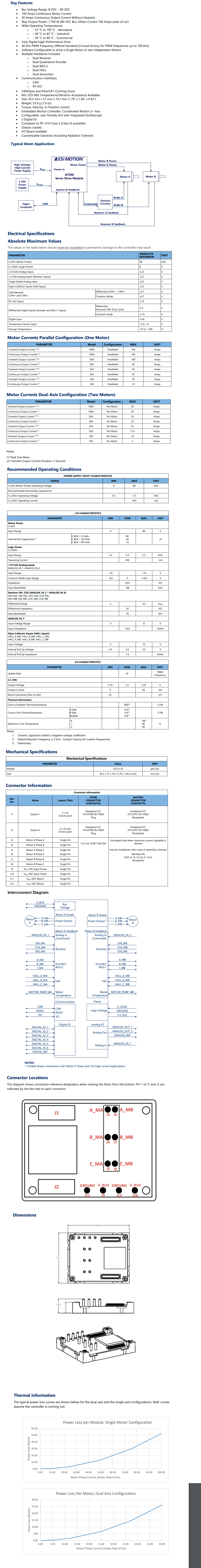

Description Ordering Information Specifications and Drawings


Ultra-Low Weight & Compact Sized Dual-Axis Servo Drive Module AXXXA80VX(Atom)

ESI Motion’s servo drive systems are designed for precision military, aviation, automotive, robotics, and specialized industrial applications where size and weight are critical. ESI Motion’s dual-axis Atom incorporates field proven rugged controller and high efficiency wide-bandgap semiconductor-based power driver modules and offers multiple configurations. It is designed and manufactured in ESI Motion’s USA facility and complies with a wide range of military and industry standards. Options include a selection of input voltages, output current amplitudes, and feedback devices. It comes with an industry benchmark user interface allowing the most flexible and precise system integration and control. With 100A packed into a very small package, the Atom is a powerful solution for your application. These tiny drives have a high-power density and proven field reliability.

Specifications:

Bus Voltage Range:

8VDC – 80VDC

Continuous Motor Current:

100 Amps

Continuous Output Current without Heatsink:

30 Amps

Max Output Power:

7700W (80 VDC Bus, Motor Current 100 Amps peak-of-sin)

Wide Operating Temperatures:

Aerospace -55°C to 100°C , Industrial -40°C to 85°C , Commercial -30°C to 60°C

WEIGHT

1.9 oz (53.9g)

SIZE

45.5mm x 37mm x 10.7mm (1.8” L x 1.3” W x 0.3” H)


ESI Motion Servo Drive Module
