ESI Motion: Extreme High-Power Density Servo Drive Module (Scorpion)
ESI Motion: Extreme High-Power Density Module - Scorpion



Request for Quantity and Price


ESI Motion's Scorpion is an extreme high power density servo drive module Supports DC brushless, brushed and induction. Bus Voltage (DC) 24V to 610V, Peak Current 80A, Output Power 24kW



Availability: Subject to availability

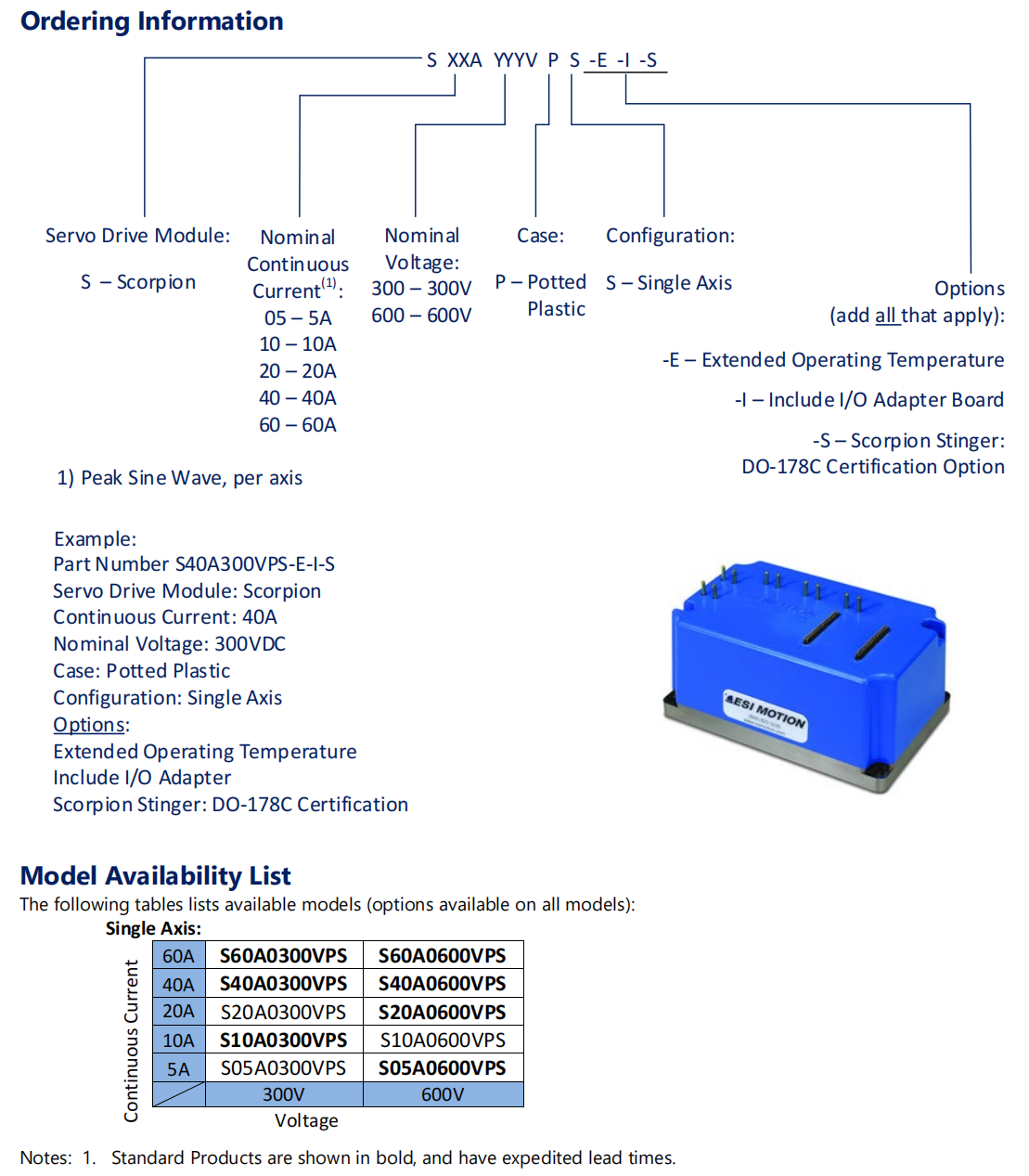

Order #: SXXAYYYVPS


Options*:


Model*:


.

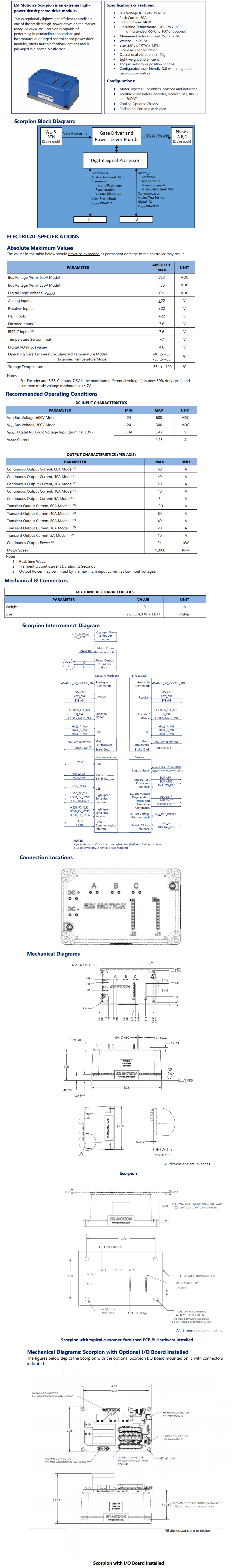

Description Ordering Information Specifications and Drawings


Extreme High-Power Density Servo Drive Module (Scorpion)

This exceptionally lightweight efficient controller is one of the smallest high power drives on the market today. At 24kW the Scorpion is capable of performing in demanding applications and incorporates our rugged controller and power driver modules, offers multiple feedback options and is packaged in a potted plastic case.

The Scorpion is as powerful as it is easy to use. This servo drive module evolved from our long running Dragon series 24V to 610V, the core of ESI Motion’s integrated “plug-and-play” control solutions. It provides unprecedented power in a lightweight compact size
Specifications

BUS VOLTAGE (DC)

24V-610V

PEAK MOTOR CURRENT

Up to 80A

OUTPUT POWER

24kW

TEMPERATURE

-40ºC to 71ºC

ELECTRICAL SPEED

Up to 75,000 RPM

WEIGHT

1 lb. (453g)

SIZE

2.6” L x 4.0” W x 1.8” H
