ESI Motion: Incredibly high-powered, fully integrated Servo Drive (Hyperion)
ESI Motion: Incredibly high-powered, fully integrated Servo Drive (Hyperion)



Alternate View
Request for Quantity and Price


Hyperion offers unrivaled power density ratings of up to 100 Kilowatts and can handle up to 800 volt systems and motors up to 240,000 RPM.



Availability: Subject to availability

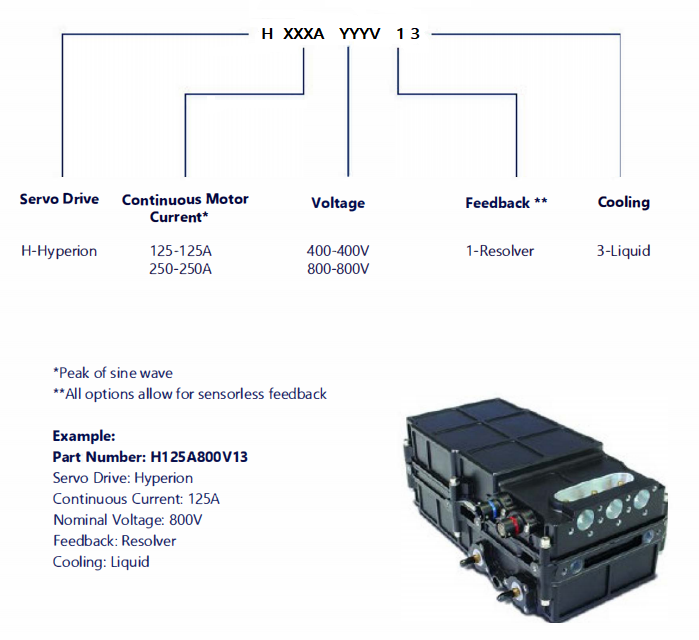

Order #: HXXXAVYYV13


Model*:

.

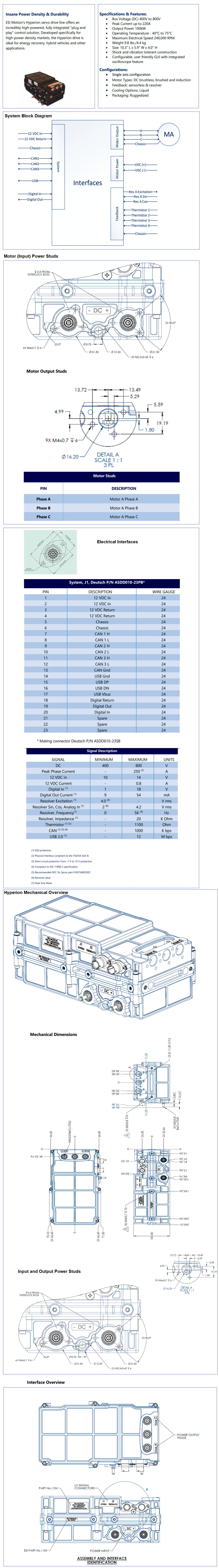

Description Ordering Information Specifications and Drawings


ESI Motion: Incredibly high-powered, fully integrated Servo Drive (Hyperion)

ESI Motion's Hyperion servo drive line offers an incredibly high-powered, fully integrated "plug and play" control solution. Developed specifically for high-power density markets, the Hyperion drive is ideal for energy recovery, hybrid vehicles and other applications.

The Hyperion servo drive offers an incredibly high-powered, fully integrated “plug-and-play” control solution. Developed specifically for high-power density markets, the Hyperion drive is ideal for energy recovery, hybrid vehicles and other applications. As with all our drives, they can be modified to suit your application or off-the-shelf

Specifications:

BUS VOLTAGE (DC)

400V-800V

PEAK MOTOR CURRENT

125A & 250A

OUTPUT POWER MAX

100kW

TEMPERATURE

-40ºC to 75ºC

ELECTRICAL SPEED MAX

Up to 240,000 RPM

WEIGHT

9.8 lbs (4.4 kg)

MOTOR TYPES

DC Brushless, Brushed and Induction

FEEDBACK OPTIONS

Sensorless and Resolver

COOLING OPTIONS

Liquid

PACKAGING

Ruggedized

SIZE

10.3” L x 5.9” W x 4.0” H
