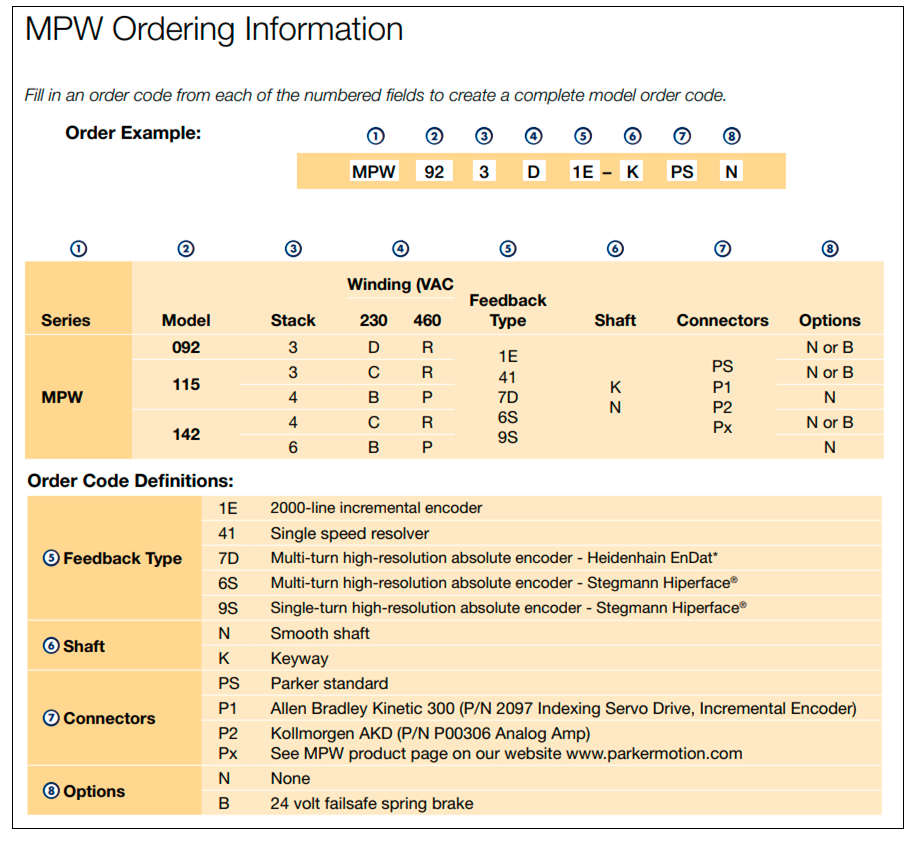

Parker: MPW Series Stainless Steel Servo Motors - MPW923D1E-KPSN

Parker's MPW Series extends the MPP motor family to meet the needs of those applications exposed to high pressure, highly caustic, washdown environments. Specific applications can be found in such markets as Food and Beverage, Pharmaceutical, Packaging, and any other application that may be exposed to a harsh environment (salt, fog and humidity).
Parker’s powerful, yet compact stainless steel motor design enables smaller frame sizes to meet application needs. Extra sealing and venting also provides an easy way for the user to extend the life of the motor (up to 2X longer than other motors found in the market today).

Stainless Steel Servo Motor

Parker’s MPW stainless steel servo motor is available in 9 models covering three frame sizes. Sealed to IP69K for 1200 psi washdown requirements, the MPW is also potted stator design for high torque density, and options include high-resolution encoders, resolvers, and 24V brake. The motor’s cable options and motor files, meanwhile, allow it to operate with a wide variety of drives.

MPW Series motors enable smaller frame sizes to meet application needs.

What makes the MPW, Parker’s new stainless steel servo motor series, special? Here are just 8 examples:

· IP69K anti-microbial seal with slinger. Prevents intrusion of high-temperature solutions used for washdown up to pressures of 1200 psi.

· Single-piece front flange. Front flange is single-piece construction with main housing body. No seam that could allow intrusion of liquids.

· Potted stator. Stator is potted directly into the steel housing, creating a very power-dense solution.

· 300 Series stainless steel housing. The 300 series material withstands the harshest washdown environments. Micro polished round housing allows for quick and easy cleaning.

· Segmented laminations. Creates a very high torque to inertia ratio, which supports rapid rates of acceleration.

· Double O-ring seal. Used to seal rear motor plate to main housing. Double the protection vs. the use of a single o-ring design.

· Breather vent. During washdown, pressure differentiation can cause a vacuum effect that can suck moisture into the motor housing. Our breather vent allows the user to run a hose to a dry air location to prevent this common cause of failure.

· Cables. Cables run directly from the housing via IP69K sealed fittings. Cables are terminated with connectors to allow easy plug and play to the most popular Parker drives. Connector options are also available to plug and play with drive solutions offered by other manufacturers. Parker stainless steel motors are designed to work with the most popular Parker drives, as well as other drives offered in the market today,

Features:

• 10 models covering three frame sizes

• Sealed to IP69K for 1200 psi washdown requirements

• Potted stator design for improved thermal efficiency

• 35 to 227 in-lbs continuous torque (230 and 460 VAC supply)

• Options include high resolution encoders, resolvers, and 24 V brake

• Cable options available to plug and play with a wide variety of drives

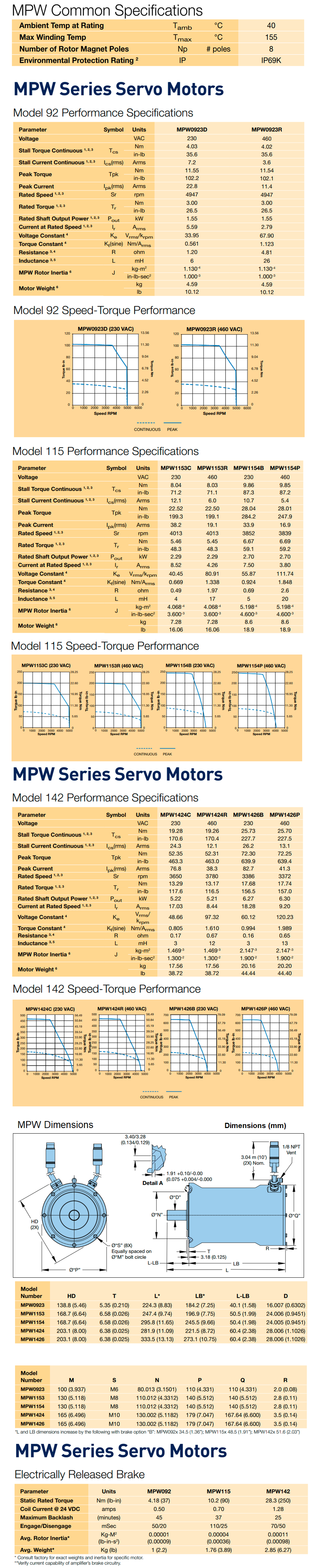

Catalog and Specifications
		MPW 2 Page Flyer
		MPW Brochure
User Guides
		FAQ: Crossover of Allen-Bradley MPS to MPW
Software
		Motor Files for Non Parker Drives
Video
		How to Create a Motor File for AB Kinetix 300 and MPW with 1E Feedback
		How to creat a Motor File for AB Kinetix 6500 and MPW with Endat 2.2 Feedback
		MPW Product Overview
Download - Drawings and CAD files
		MPW Drawings - DXF
		MPW Drawings - PDF
		MPW Drawings - STP
