Heidenhain: Incremental sealed linear encoder 572249-06 (LS 487C series)
Heidenhain: Incremental Sealed Linear Encoder with small cross section #572249-06 (LS 487C series)

Heidenhain
Price : $1,312.00


Availability: 14 weeks ARO
Order #: 572249-06
Qty:

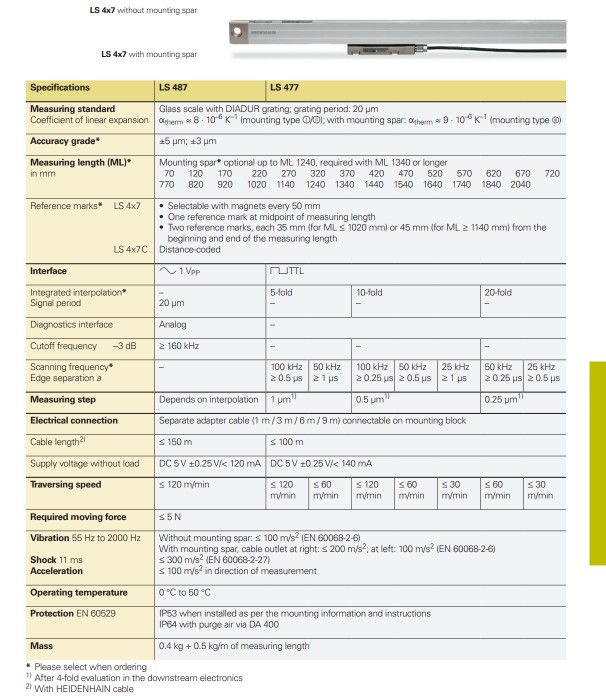

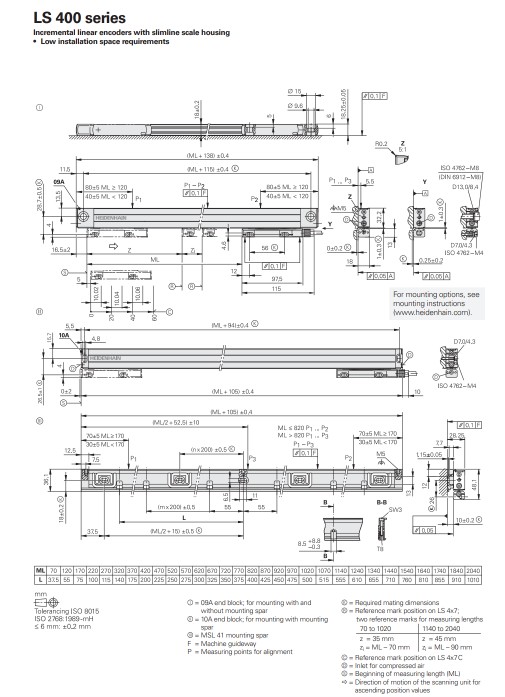

Description Ordering Information Specifications and Drawings

Heidenhain: Incremental Sealed Linear Encoder with small cross section #572249-06 (LS 487C series)
Incremental linear encoders with slimline scale housing
  • For linear axes up to 2040 mm long
  • Compact design for limited installation space
  • Particularly easy installation with mounting rail
  • Interfaces: 1 VPP and TTL
Features:
High contamination tolerance
A proven seal design optimally protects the LS 400 encoders from contamination. Their wide scanning field further reduces contamination sensitivity. Localized impurities on the measuring standard have very little influence on signal quality or measurement accuracy.
Easy installation
Linear encoders from HEIDENHAIN are very installer-friendly. As guided systems, they provide wide mounting tolerances for fast and easy installation.
Compact design
The LS 400 linear encoders deliver high accuracy and a rugged design with a small footprint. Their compact dimensions also make them ideal for very limited installation space.
