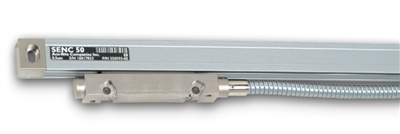

Acu-Rite Solutions: Incremental Sealed Linear Encoder #550981-01 (SENC 50 Series)

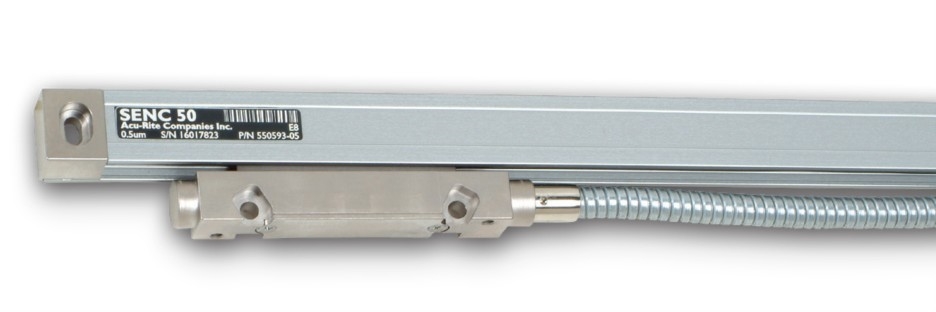

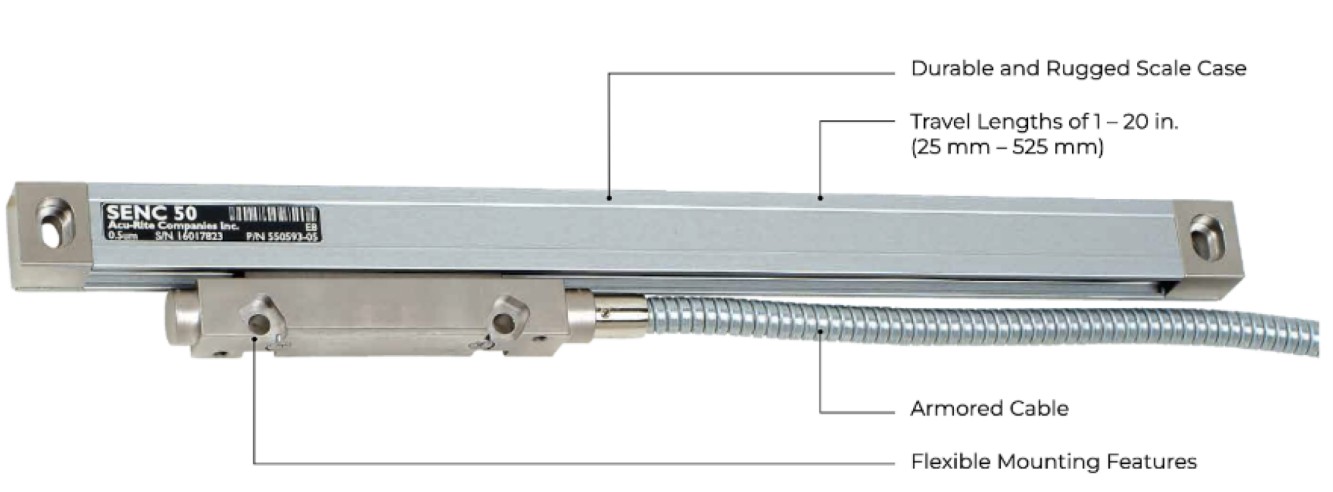

SENC 50 Incremental sealed linear encoder with small cross section

SENC 50 Linear Encoder - Maximize machining accuracy in tight spaces

The SENC 50 is a compact linear encoder providing high-accuracy feedback in limited and restricted spaces. The precision glass scale resists size, shape, and density changes regardless of temperature and humidity variations, thanks to advanced optical technology developed by HEIDENHAIN.

SENC 50 (550981-01)
Incremental sealed linear encoder with small
cross section
Measuring length:       275 mm
                        279.40 mm (max)
                        10.0 inch
                        11.00 inch (max)
Accuracy:               ± 5 µm
Grating pitch:          20 µm

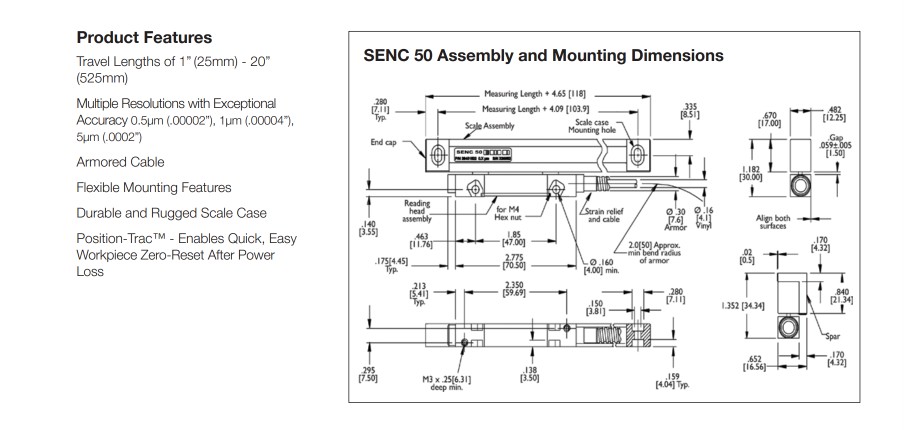

Fastening type:         End block + mounting spar

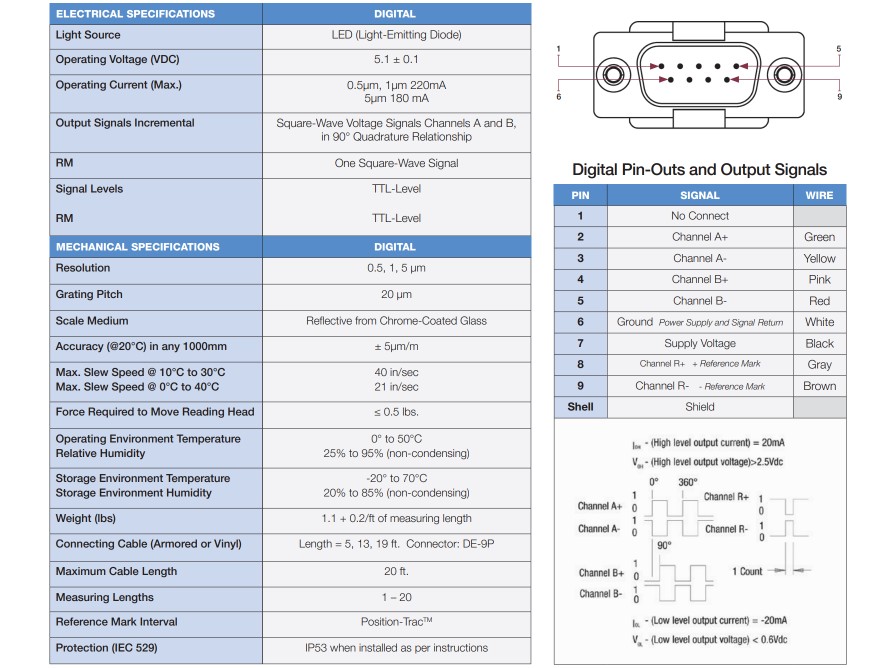

Output signal:          Differential TTL output
Resolution:             5 µm at 4-fold evaluation
Reference mark position:Distance-coded reference
                        marks with nominal
                        increment 1000 x grating
                        period
Power supply:           +5V +-5%
Electrical connection:  D-sub connector, metal
                        housing, 2-row, with
                        locking screws, male,
                        9-pin
Cable type:             PUR with armor Ø 7.3 mm
Cable length:           4.00 m
                        13.0 foot
Company identification: Acu-Rite
