Heidenhain: Interpolation and Digitizing Electronics (EXE 660B)
Heidenhain: Interpolation and Digitizing Electronics (EXE 660B)



Heidenhain
Price : $2,881.00


Availability: Subject to availability
Order #: 331926-01
Qty:

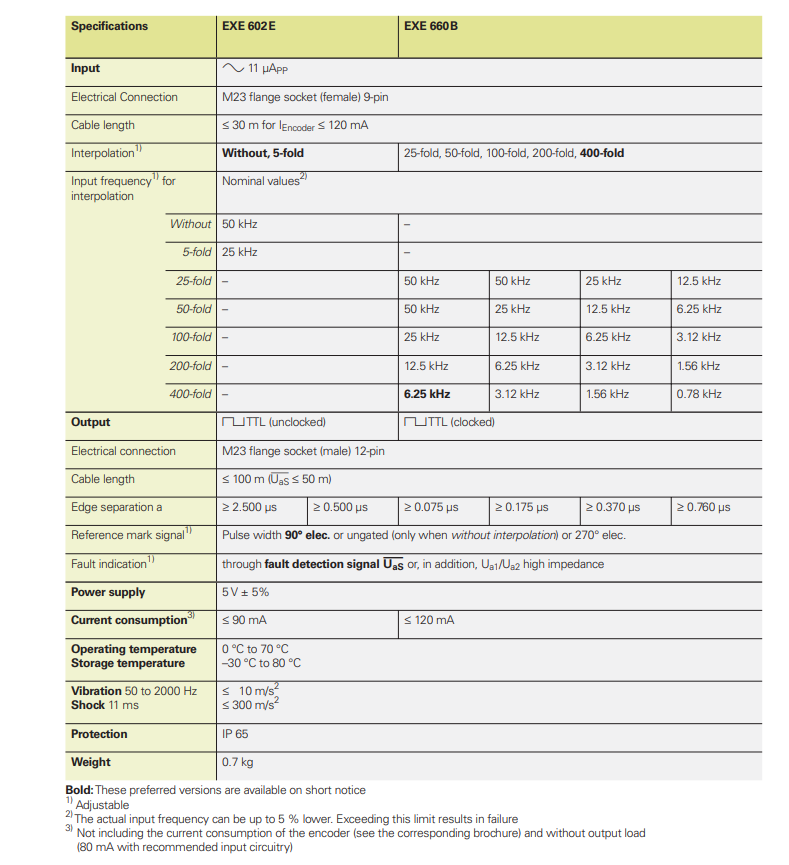

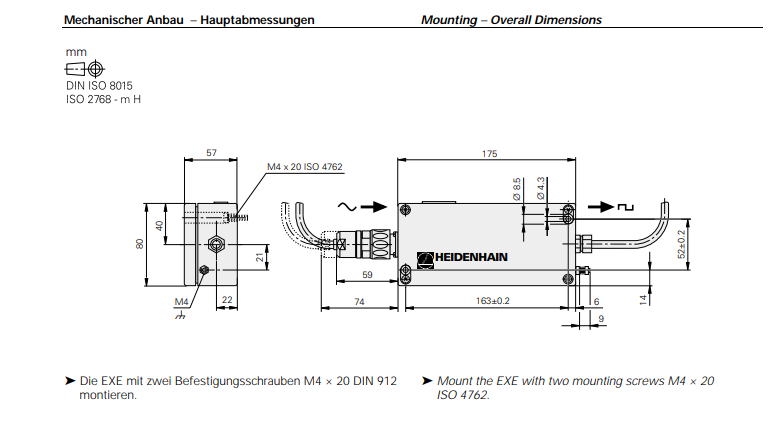

Description Specifications and Drawings


Heidenhain: Interpolation and Digitizing Electronics (EXE 660B)

Interpolation and digitizing electronics from HEIDENHAIN, 400-fold interpolation of measuring signal.

The EXE 660 B is an interpolation and digitizing electronics unit in a sturdy cast-metal housing.

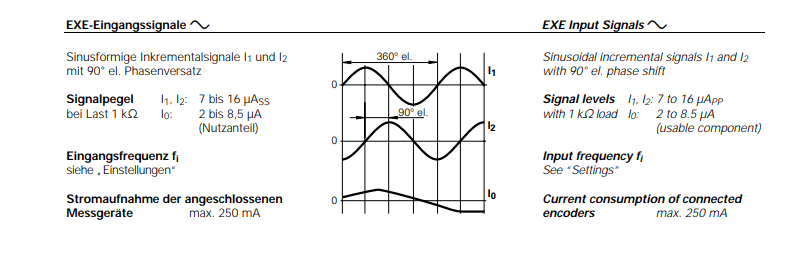

It is suited for use with HEIDENHAIN linear and angle encoders that provide sinusoidal current signals
(7 µAPP to 16 µAPP). Depending on the settings, the EXE interpolates and digitizes the encoder signals
25-, 50-, 100-, 200- or 400-fold. The output signals of the EXE have TTL levels.


Interpolation and Digitizing Electronics:

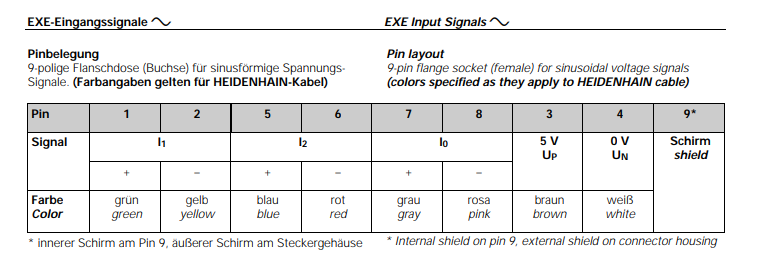

  • Input Signals: ~ 11 µAPP
  • Output Signals: EXE 660 B [TTL (Clocked)]
  • With flange socket, without cable
