Leine & Linde: Ruggedized Incremental Hollow shaft encoder RHI 503 (ID:531275-11)
Leine & Linde: Ruggedized Incremental Hollow shaft encoder RHI 503 (ID: 531275-11)

Price : $648.00


Availability: 4-5 weeks lead time
Order #: 531275-11
Qty:

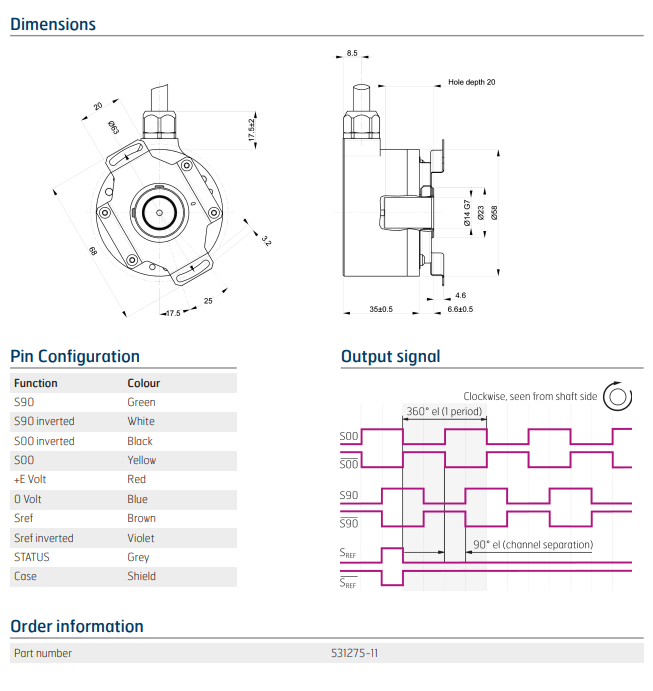

Description Specifications and Drawings

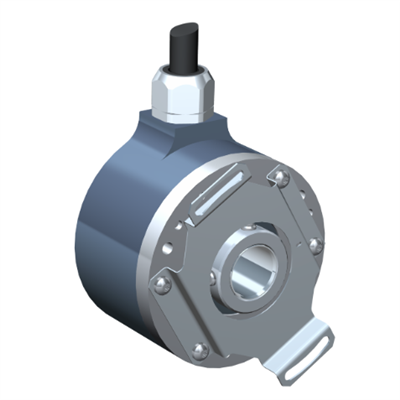

Leine & Linde: Ruggedized Incremental Hollow shaft encoder RHI 503 (ID: 531275-11)

RHI 503

Ruggedized Hollow Shaft encoder, Incremental

  • Robust Ø58 mm encoder with hollow shaft
  • Short-circuited protected outputs
  • IP67 at housing, IP66 at shaft inlet

Product data

TypeRHI
Model503 Standard
Shaft typeØ14 mm blind hollow shaft
Flange type58/59-flange with stator coupling
Resolution1024 ppr
Power supply9-30 Vdc
Output signalHTL
Connection typeCable
Connecting directionRadial
Cable length2.00 m
Number of channels6 (S00, S00\, S90, S90\, Sref, Sref\)
