Leine & Linde: Inductive Hollow Shaft Absolute Encoder 881323-01 (IHA 608)
Leine & Linde: Inductive Hollow Shaft Absolute Encoder 881323-01 (IHA 608)

Price : $1,561.00


Availability: 4-6 weeks lead time
Order #: 881323-01
Qty:

Description Specifications and Drawings

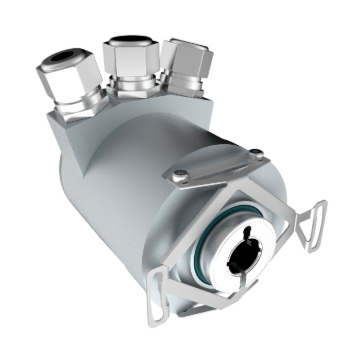

Leine & Linde: Inductive Hollow Shaft Absolute Encoder 881323-01 (IHA 608)
IHA 608
Part number: 881323-01

Inductive Hollow shaft encoder, Absolute

  • 58mm diameter
  • Extremely robust design
  • Shock and vibration protected
  • Inductive scanning

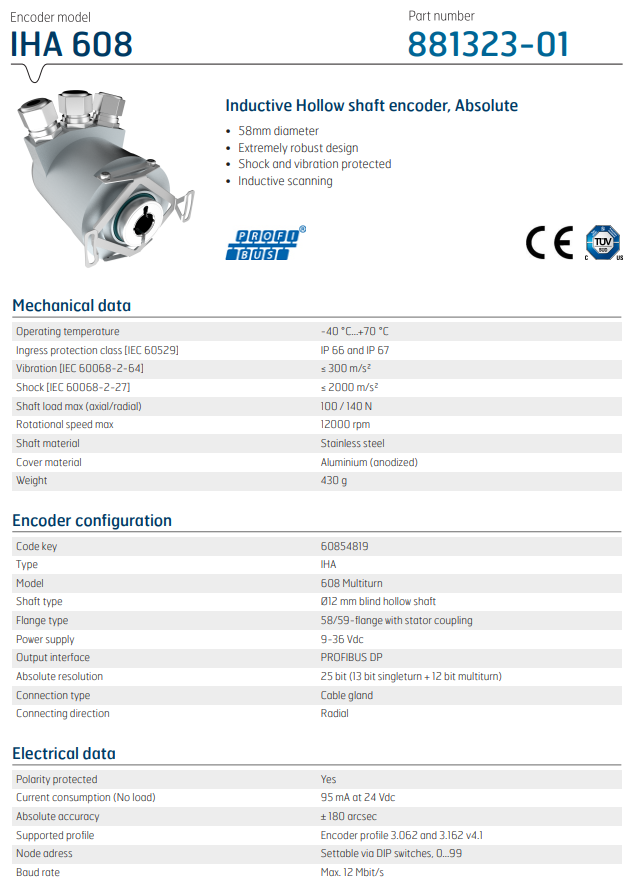

Product data

Code key60854819
TypeIHA
Model608 Multiturn
Shaft typeØ12 mm blind hollow shaft
Flange type58/59-flange with stator coupling
Power supply9-36 Vdc
Output interfacePROFIBUS DP
Absolute resolution25 bit (13 bit singleturn + 12 bit multiturn)
Connection typeCable gland
Connecting directionRadial
