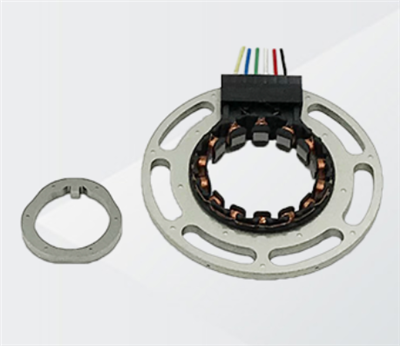

Extremely Thin Shaped: Singlsyn has achieved smallest mounting space because of its thiness as a built-in structure.

Wide Temperature Range: -40∼ +150°C (Large diameter type : -30 ∼ +150°C)

Robust for harsh Environments:
Vibration : 196 m/sec2 (20G)
Shock : 980 m/sec2 (100G)
Humidity : 90% RH over

High Rotational Speed: 30,000 min-1 (rpm) (Large diameter type : 12,000 min-1) Min.

High Reliability: Singlsyn has a similar structure to electric motors but has high reliability because of no winding coil on its rotor.

Sensing Absolute Position and Velocity: According to connection to a R/D converter or Smartcoder,it is capable of converting analog output signals of Singlsyn to digital position (angle) signals. The position signals are transmitted as the absolute position within a range of electrical one cycle.

Low Cost: Especially low cost is realized by reducing the number of parts to 1/10 compared with conventional resolvers.
