Daincube: IBM PC compatible (industrial laptop) Teach Pendant DTP10-P700
Daincube: IBM PC compatible (industrial laptop) Teach Pendant DTP10-P700



833-9MOTION inquiry@e-motionsupply.com.
Price : $2,800.00

Price with Selected Options: $2,800.00


Order #: DTP10-P700


Accessory1:
Holder [Add $89.00]

Accessory2:
Wall Bracket [Add $35.00]

Qty:

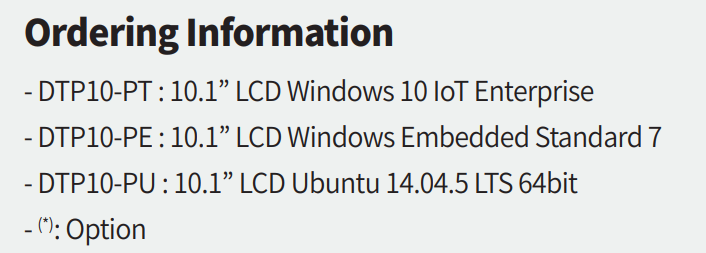

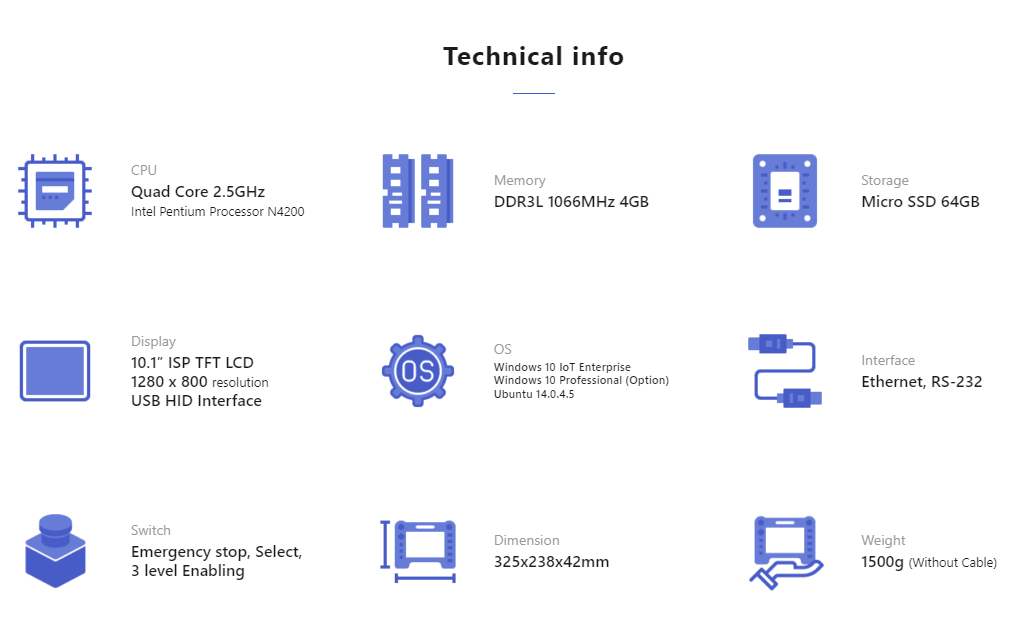

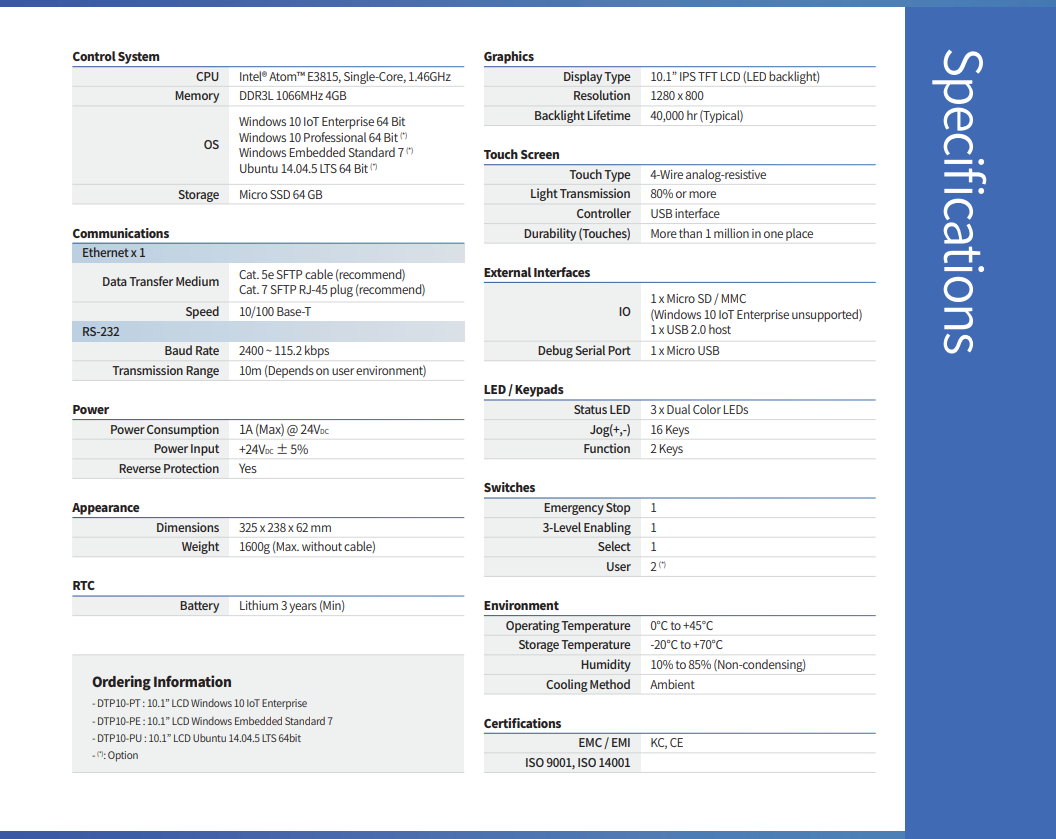

Description Ordering Information Specifications and Drawings

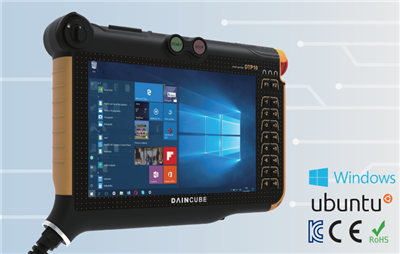

Daincube: IBM PC compatible (industrial laptop) Teach Pendant DTP10-P700

The DTP10-P700 is an industrial laptop-type Teach Pendant based on the Intel® Pentium® processor with Windows 10 Professional. The DTP10-P700 can be used not only the Teach Pendant of industrial robots but also the portable and industrial control computer for measurement and manipulation. This product has a high MTBF, can operate at high industrial temperatures without cooling fans, and can be used even in harsh factory environments. Because it is the same user environment as the PC,developer-friendly programming tools such as MFC and LabVIEW can be easily used, and existing programs can be used directly with a simple resolution adjustment.

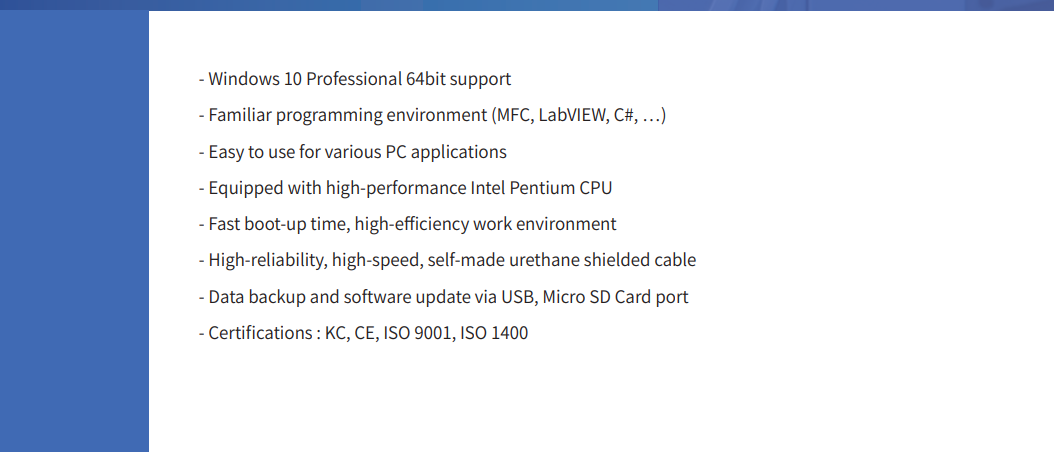

Features

- Windows 10 Professional 64bit support

- Familiar programming environment (MFC, LabVIEW, C#, …)

- Easy to use for various PC applications

- Equipped with high-performance Intel Pentium CPU

- Fast boot-up time, high-efficiency work environment

- High-reliability, high-speed, self-made urethane shielded cable

- Data backup and software update via USB, Micro SD Card port

- Certifications: KC, CE, ISO 9001, ISO 1400

Note:

  • DTP10-P cannot use 64 bits.
  • DTP10-P700 can use 64 bits.

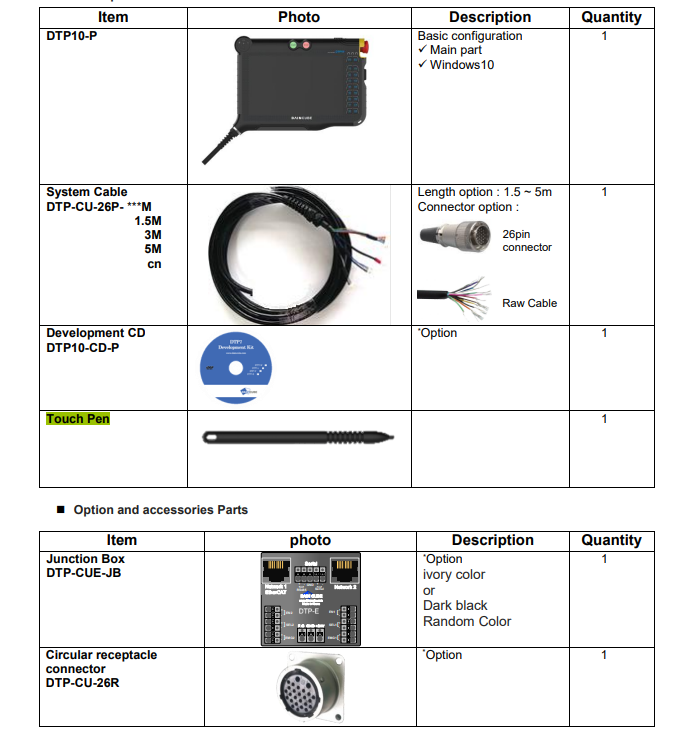

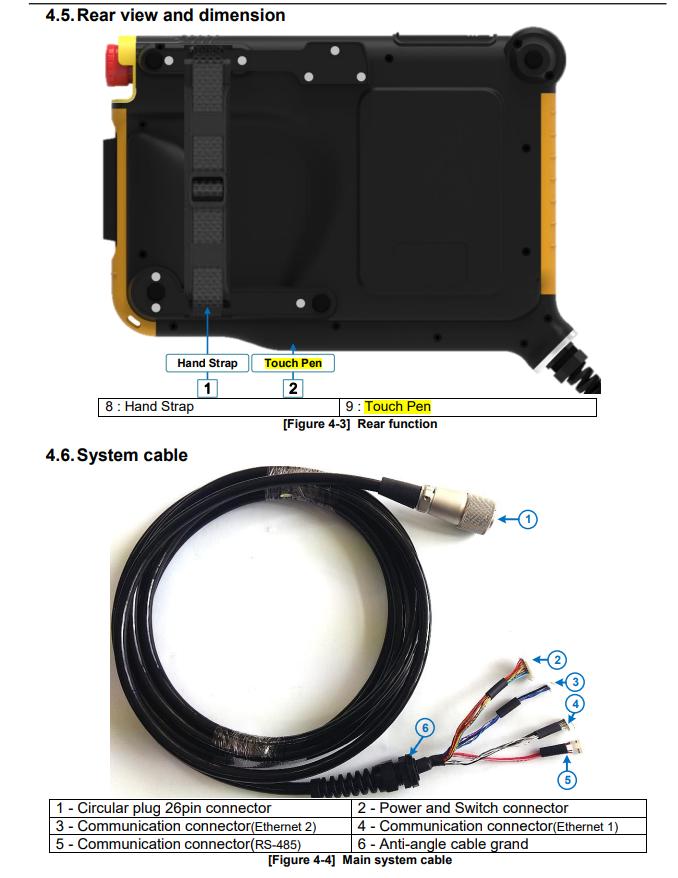

  • DTP10-P700 Includes 1pc DTP-E (Junction Box), 1pc Touch Pen, and a 5M cable.

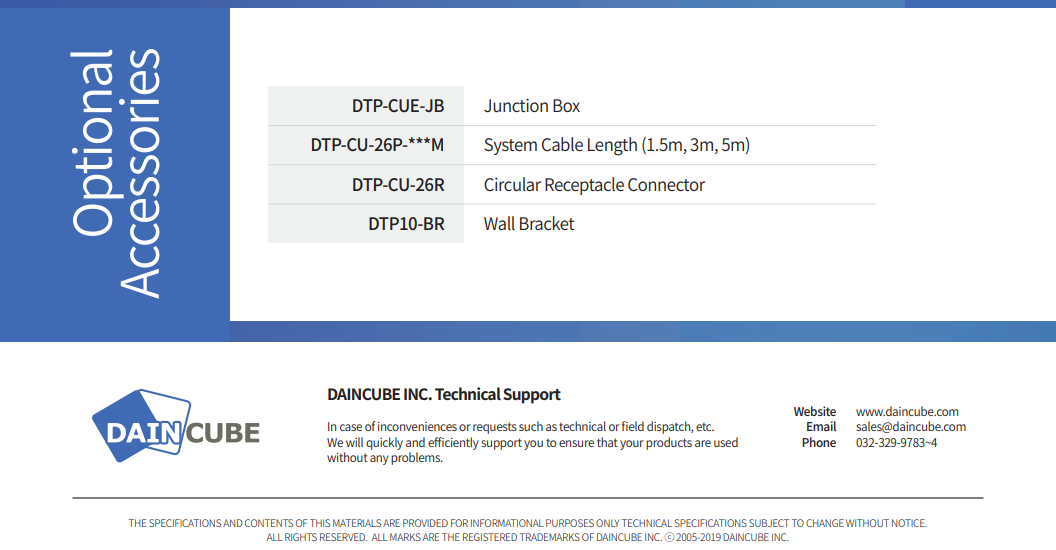

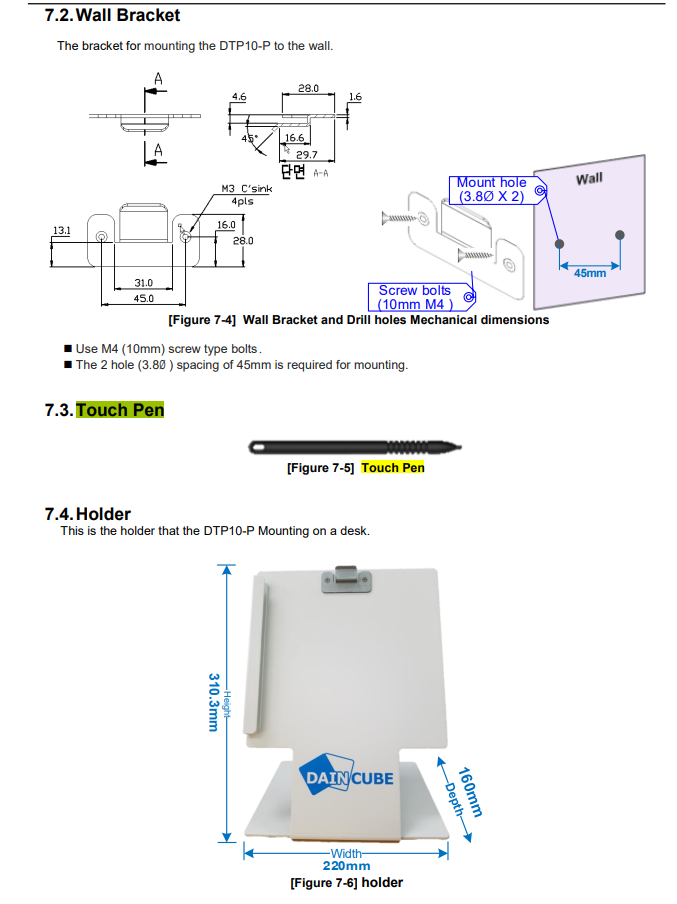

Options:

  • Wall Bracket
  • Holder
