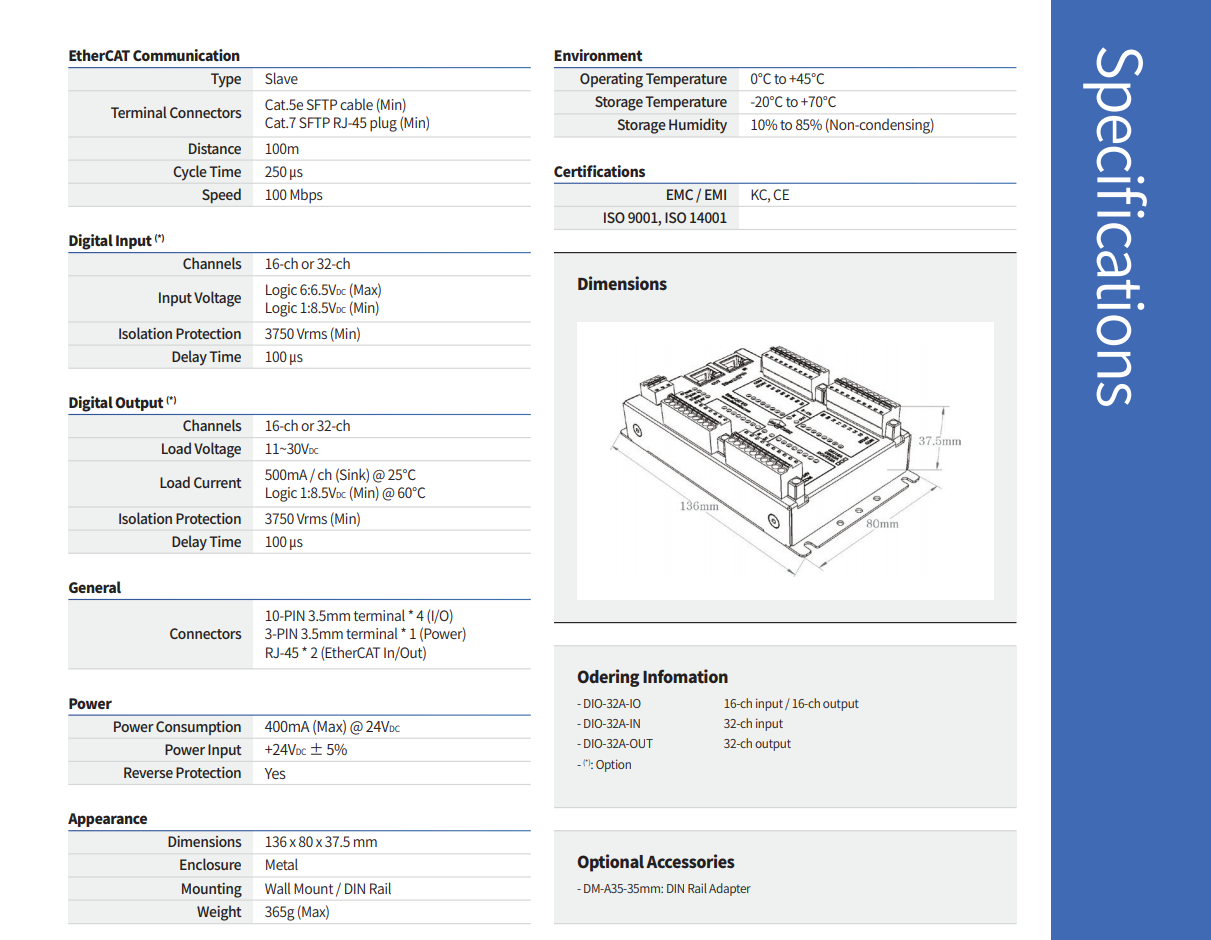

Description Specifications and Drawings


Daincube: EtherCAT Slave I/O Units (DIO-32A)


EtherCAT Slave I/O Module Optimized for Industrial Robot


The DIO-32A is an industrial slave input / output product that supports EtherCAT, providing flexible mounting and efficient daisy-chain connectivity for I/O channel configurations.

Input/Output 16 channels maximize convenience in selecting and using freely according to the customer's needs, and each module is designed to be insulated to ensure optimal reliability even in harsh working conditions.

It provides easy installation and detachment by adopting Euro type detachable terminal block and also provides status monitoring function through LED, which helps users to maintain the system. Especially, compact size and DIN rail mount kit make it easy to work on the electricity field.

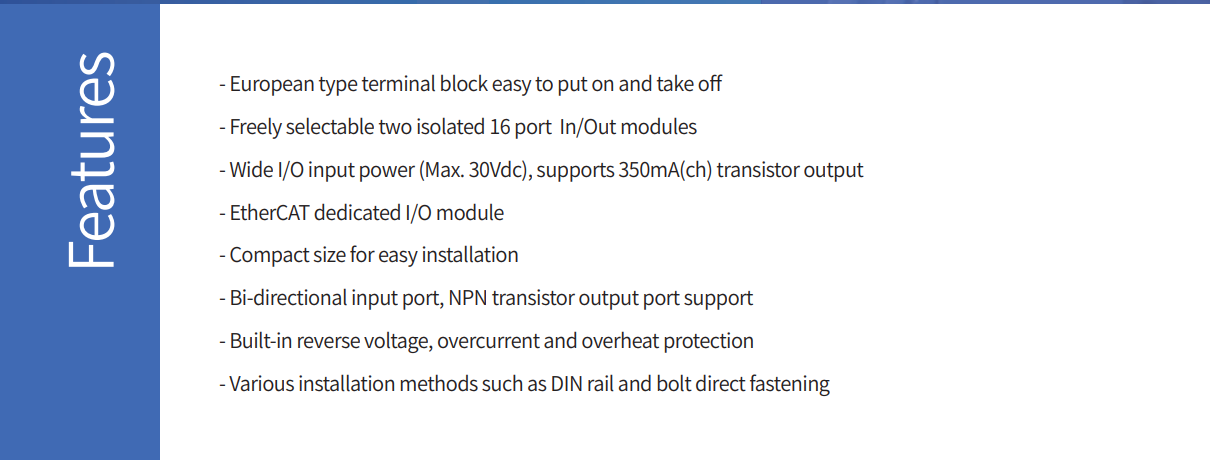

Features:

  • European type terminal block easy to put on and take off

  • Freely selectable two isolated 16 port In/Out modules

  • Wide I/O input power (Max. 30Vdc), supports 350mA(ch) transistor output

  • EtherCAT dedicated I/O module

  • Compact size for easy installation

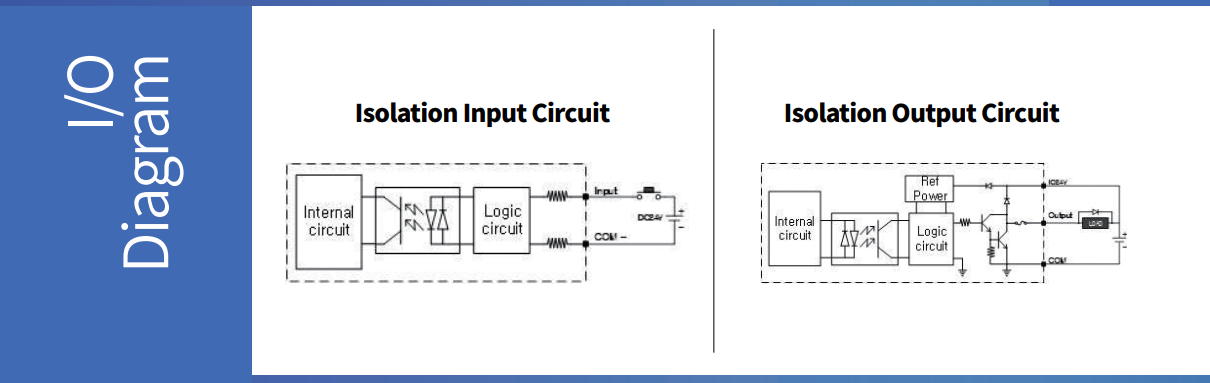

  • Bi-directional input port, NPN transistor output port support

  • Built-in reverse voltage, overcurrent and overheat protection

  • Various installation methods such as DIN rail and bolt direct fastening

Technical info

  • DMC-DIN32A – Input: 32 Channels

  • DMC-DOUT32A – Output: 32 Channels

  • DMC-DIO32A – Input: 16 Channels & Output: 16 Channels

  • Communicate with controllor: EtherCAT Input, EtherCAT Output
