GLENTEK : GMB4500 SERIES DC BRUSHLESS SERVO MOTORS GMB45X-X-X-XXXXXXXX-X
Glentek GMB4500 series DC brushless servo motor GMB45X-X-X-XXXXXXXX-X



Alternate View


Request for quantity, price, delivery and model information


Continuous Torque Range: 55 Lb-in (6.21 Nm) to 116.0 Lb-in (13.11 Nm)
Peak Torque Range: 165.0 Lb-in (18.63 Nm) to 348.0 Lb-in (39.33 Nm)

24 VDC holding brake. Storage Temperature: -20°C to 70°C



Availability: Lead time 10 - 12 weeks
Order #: GMB45X-X-X-XXXXXXXX-X

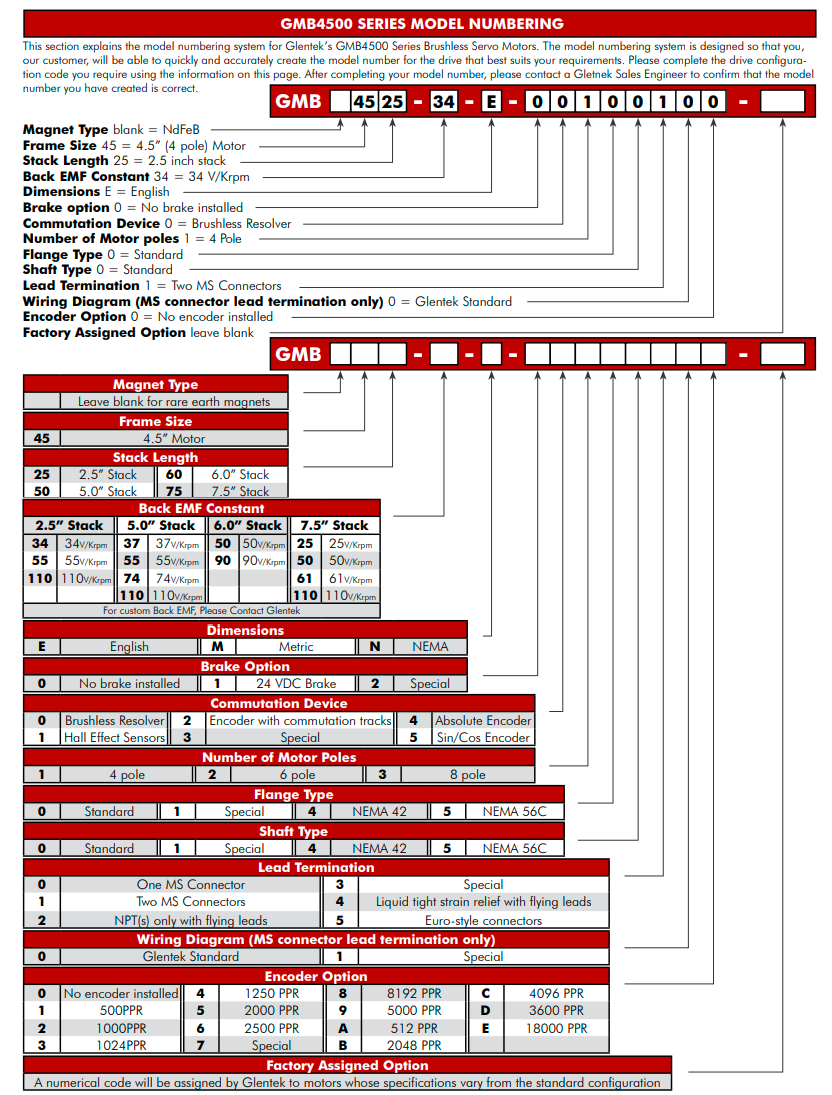

Model Number/Code*:


Dimensions*:


Brake Option*:


Commutation Device*:


No of Poles*:


Flange Type.*:


Shaft Type*:


Lead Termination*:


Wiring Diagram*:


Encoder Option*:


.
Description Ordering Information Specifications and Drawings


GLENTEK:GMB4500 series DC brushless servo motors GMB45X-X-X-XXXXXXXX-X
The GMB series utilizes high-energy Neodymium-Iron-Boron (NdFeB) magnets which when combined with low inertia rotors, provide high dynamic performance. Due to the high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics. In addition, all frame sizes incorporate skewed stators which provide ultra smooth operation (i.e. low cogging torque) at all speeds. They range in continuous torques from 2.8 lbin (0.32 Nm) to 1,092 lb-in (123.4 Nm) and peak torques from 8.4 lb-in. (0.95 Nm) to 3,276 lb-in. (370.2 Nm). Typical applications include factory automation machinery, fitness equipment (i.e. treadmills), labeling machinery, machine tools, material handling machinery, medical equipment (i.e. CAT scanners and PET scanners), packaging machinery, printing machinery, robotics, semiconductor machinery, surface mount pick and place machines, x-y tables, textile machinery, applications which have low to medium reflected load inertias and require a high dynamic response, applications which require smooth operation and/or applications which require a lot of torque in a small mechanical form factor.

Glentek’s GMB4500 series of high performance, permanent magnet Brushless servo motors utilize high-energy Neodymium-Iron- Boron (NdFeB) magnets, which provide more torque in a smaller package with higher dynamic performance than traditional ferrite magnet designs. In addition, due to high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics or where the physical size of the motor is a major concern.
• Continuous Torque Range: 55 Lb-in (6.21 Nm) to 116.0 Lb-in (13.11 Nm)
• Peak Torque Range: 165.0 Lb-in (18.63 Nm) to 348.0 Lb-in (39.33 Nm)

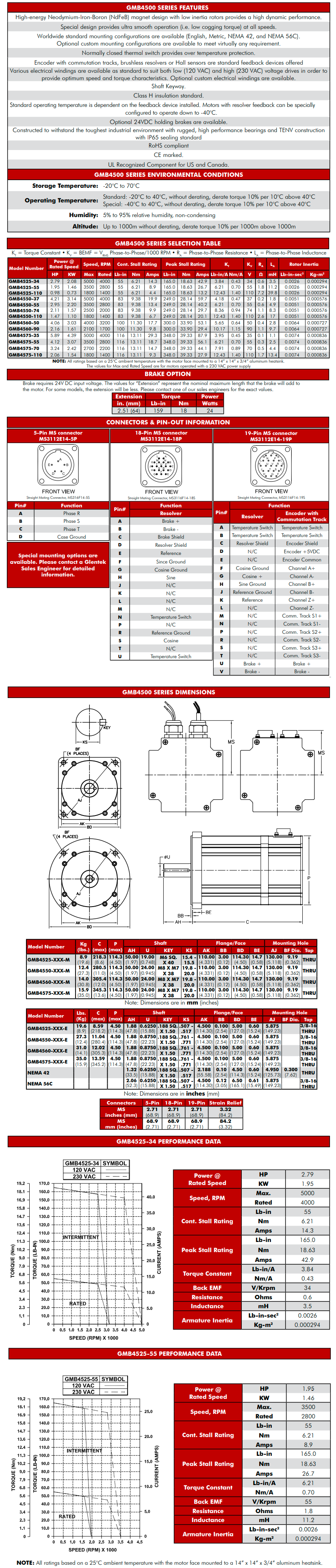

GMB4500 Series Servo Motor Specifications & Selection Table

MODEL NUMBER

POWER @ RATED SPEED

RPM

CONT. STALL RATING

PEAK STALL RATING

HP

KW

MAX

LB-IN

NM

AMPS

LB-IN

NM

AMPS

GMB4550-37

4.21

3.14

5000

83

9.4

19.9

249

28.1

59.7

GMB4550-55

2.95

2.2

3500

83

9.4

13.4

249

28.1

40.2

GMB4550-74

2.11

1.57

2500

83

9.4

9.9

249

28.1

29.7

GMB4550-110

1.47

1.1

1800

83

9.4

6.7

249

28.1

20.1

GMB4560-50

4.06

3.03

4000

100

11.3

17.7

300

33.9

53.1

GMB4560-90

2.16

1.61

2100

100

11.3

9.8

300

33.9

29.4

GMB4575-35

5.89

4.39

5000

116

13.1

29.3

348

39.3

87.9

GMB4575-55

4.12

3.07

3500

116

13.1

18.7

348

39.3

56.1

GMB4575-70

3.24

2.42

2700

116

13.1

14.7

348

39.3

44.1

GMB4575-110

2.06

1.54

1800

116

13.1

9.3

348

39.3

27.9

GMB4525-34

2.79

2.08

5000

55

6.2

14.3

165

18.63

42.9

GMB4525-55

1.95

1.46

3500

55

6.2

8.9

165

18.63

26.7

GMB4525-110

0.98

0.73

1800

55

6.2

4.4

165

18.63

13.2




Model No
.: GMB2005-17, GMB2005-8, GMB2010-17, GMB2010-28, GMB2010-8, GMB2015-17, GMB2015-8, GMB2020-17, GMB2020-28, GMB2020-8, GMB3515-23, GMB3515-38, GMB3515-75, GMB3530-24, GMB3530-37, GMB3530-48, GMB3530-73, GMB3545-110, GMB3545-25, GMB3545-50, GMB3545-55, GMB4525-110, GMB4525-34, GMB4525-55, GMB4550-110, GMB4550-37, GMB4550-55, GMB4550-74, GMB4560-50, GMB4560-90, GMB4575-110, GMB4575-35, GMB4575-55, GMB4575-70, GMB56108-115, GMB56108-93, GMB5627-115, GMB5627-34, GMB5627-70, GMB5654-115, GMB5654-33, GMB5654-70, GMB5681-115, GMB5681-70, GMB75120-158, GMB75120-79, GMB7530-158, GMB7530-79, GMB7560-158, GMB7560-79, GMB7590-158, GMB7590-79
