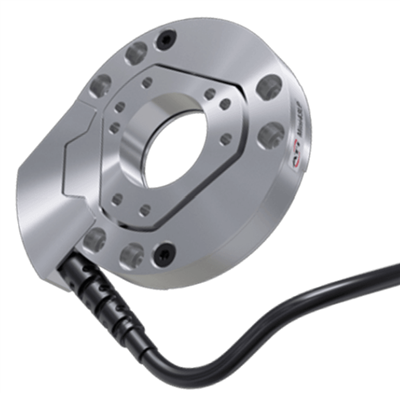

Mini43LP

The Mini43LP has a compact, extremely thin design with a large through-hole for passage of cables and other utilities.

Extremely-High Strength: EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values are 4.4 to 17.7 times rated capacities.

High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.

Industrial Strain Relief included as a standard option to reinforce the cable and withstand more than 10 lb of pull force.
