ATI: Low-Cost Force/Torque Sensor Axia90-M50

Description

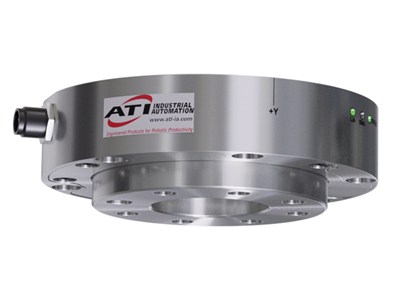

The Axia90 is a high-performance, low-cost, six-axis sensor. It offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application. With electronics packaged on-board, the sensor is extremely robust and has a minimal footprint. The Axia90 is available with Ethernet, EtherCAT, or Serial communication and features a high signal-to-noise ratio and high overload protection.

Product Features

A high-performance, easy-to-use sensor that offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application.

All electronics are built into the transducer body, which keeps the cost down and the footprint smaller. Like all of ATI's F/T products, the Axia90 features superior quality and robustness.

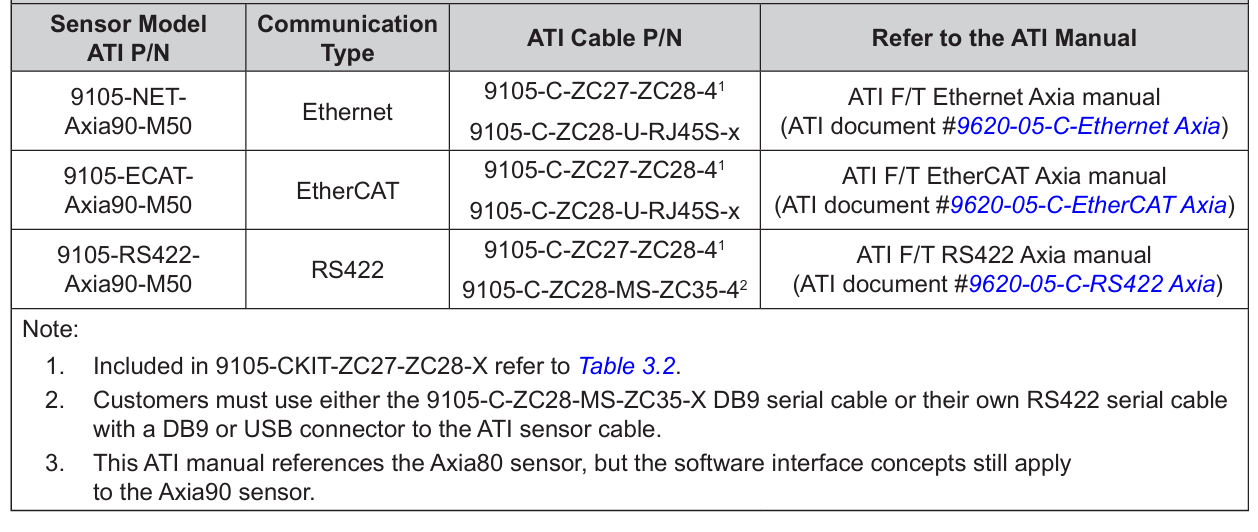

Available options for Ethernet, EtherCAT, and Serial communication.

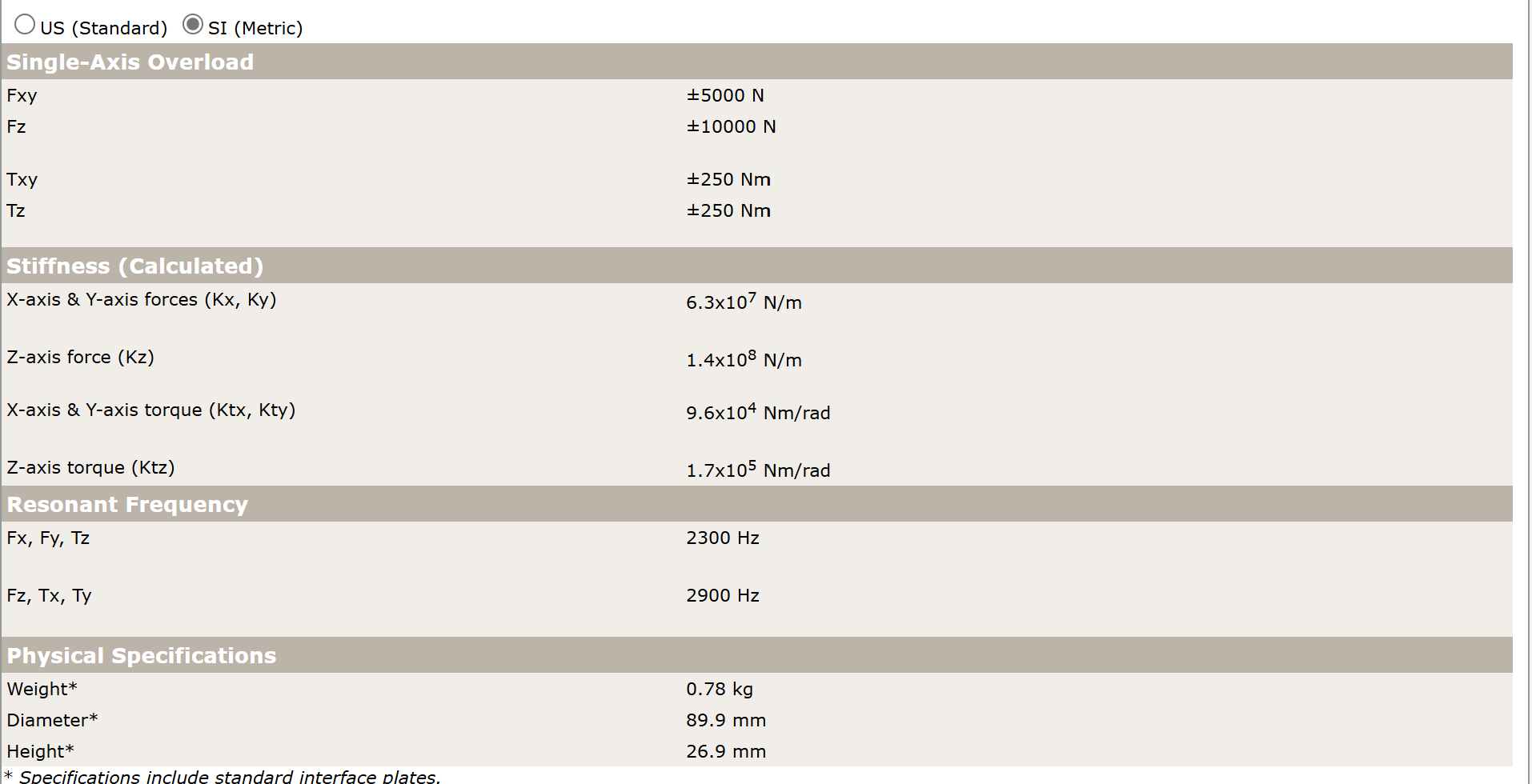

Extremely High-Strength: Precision-machined from high-strength stainless steel. Maximum allowable single-axis overload values of 5.0 to 12.5 times rated capacities.

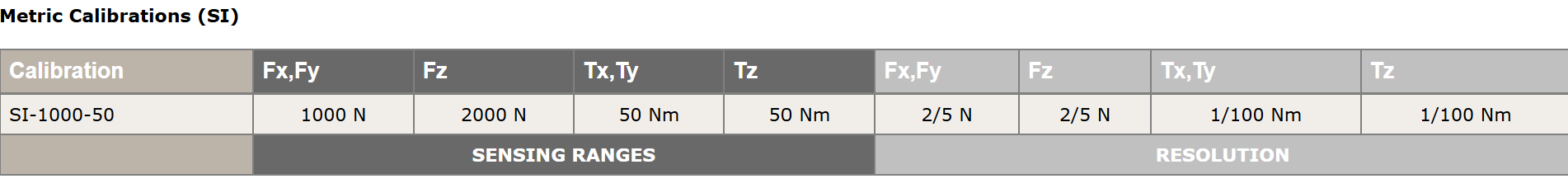

High Signal-to-Noise Ratio: Strain gages provide exceptional resolution and accuracies better than 2% full scale across all axes and calibrations.

IP67 Protection from dust, high pressure water spray, and submersion up to 1m for 30 minutes.

ISO 9409-1-50-7-M6 bolt pattern integrated directly into tool side of sensor.

Bolt-down interface design minimizes overall stack height.

Typical Applications:

• Electronic assembly
• Polishing
• Real-time force control
• Product testing
• Pick and place
• Collaborative robotics
