ATI: Low-Cost Force/Torque Sensor Axia130-M125

Description
A high-performance, easy-to-use sensor that offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application.

All of the electronics are built into the transducer body, which keeps the cost down and the footprint smaller. Like all of ATI's F/T products, the Axia130 features superior quality and robustness.

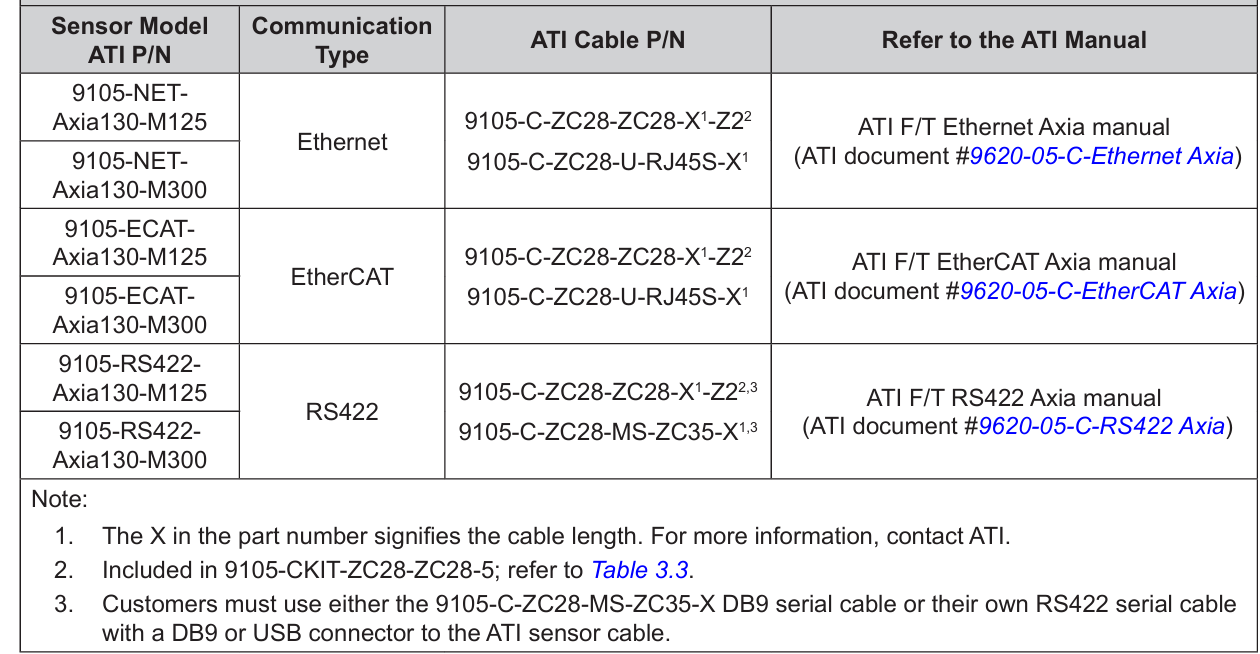

Available with Ethernet, EtherCAT, and Serial (RS422 and RS485) communication.

Large thru-hole allows routing cables through center of sensor.

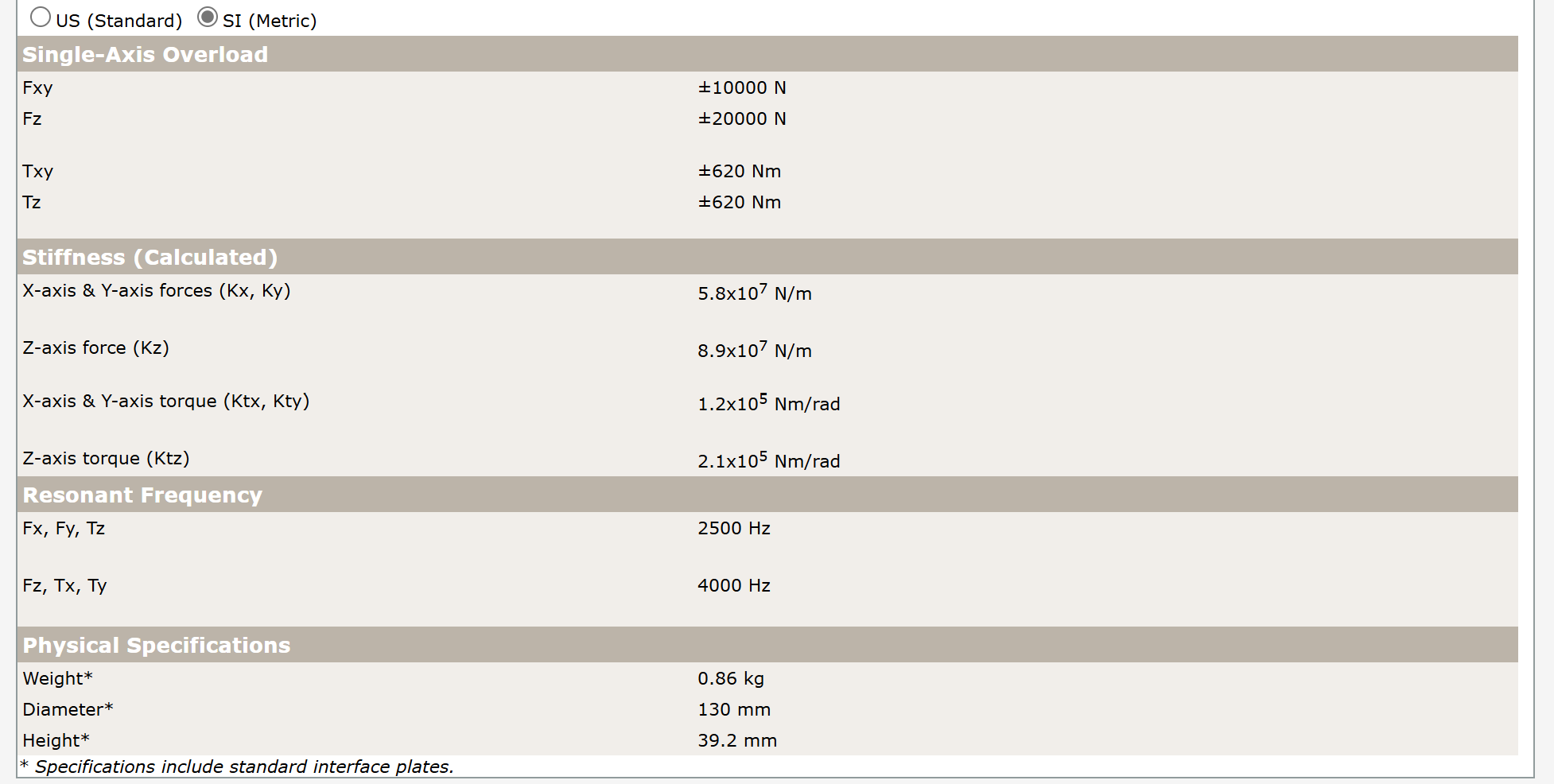

Extremely High-Strength: Precision-machined from high-strength stainless steel. Maximum allowable single-axis overload values of 5.0 to 10.5 times the maximum measurable loads.

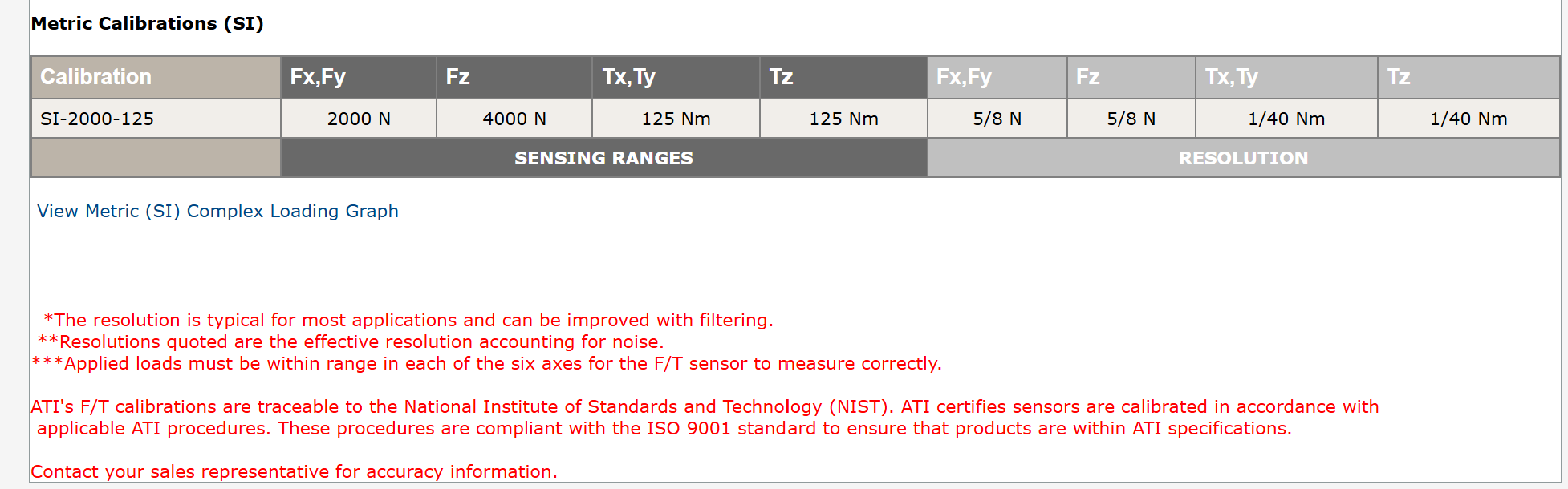

High Signal-to-Noise Ratio: Strain gages provide exceptional resolution and accuracies better than 2% full scale across all axes and calibrations.

IP67 Protection from dust, high pressure water spray, and submersion up to 1m for 30 minutes

Typical Applications

Rehabilitation research

Product testing

Robotic assembly

Telerobotics

Orthopedic research

Part placement and removal in precision fixtures
