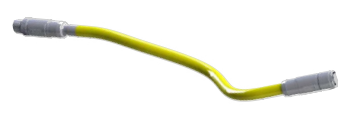

ATI: Transducer Cable 9105-C-MA12F1-MA12M1-01

Description

The 9105-C-MA12F1-MA12M1-01 is a 1~10 meters transducer cable designed for ATI Industrial Automation's 6-Axis Force/Torque sensor systems, specifically used with the Omega160 or similar NET F/T sensor series.

Key Specifications

Part Number: 9105-C-MA12F1-MA12M1-01

Connectors: M12 Female (12-pin) to M12 Male (12-pin)

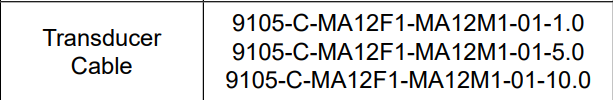

Length: 1.0 ~ 10.0 Meters

Application:
Connects the ATI F/T transducer (often with IP65/IP68 protection) to interface electronics (e.g., NET Box).

Characteristics: It is a flexible, straight, shielded cable designed for robotic or industrial automation environments.

Typical Applications

This cable is commonly used in ATI 6-axis force/torque sensing systems that require Ethernet or serial communication over an M12 connector interface, including:

• Robotic assembly and handling
• Material testing
• Industrial automation and force control
• NET F/T sensor systems
