ATI: R26 Electrical Module - Master side 9120-R26-M

Home > ATI >

ATI: R26 Electrical Module - Master side 9120-R26-M

ATI: R26 Electrical Module - Master side 9120-R26-M

Alternate View

26-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector

Price : $483.96

Availability: Usually Ships in 6 to 8 Weeks
Order #: 9120-R26-M

Qty:

Description

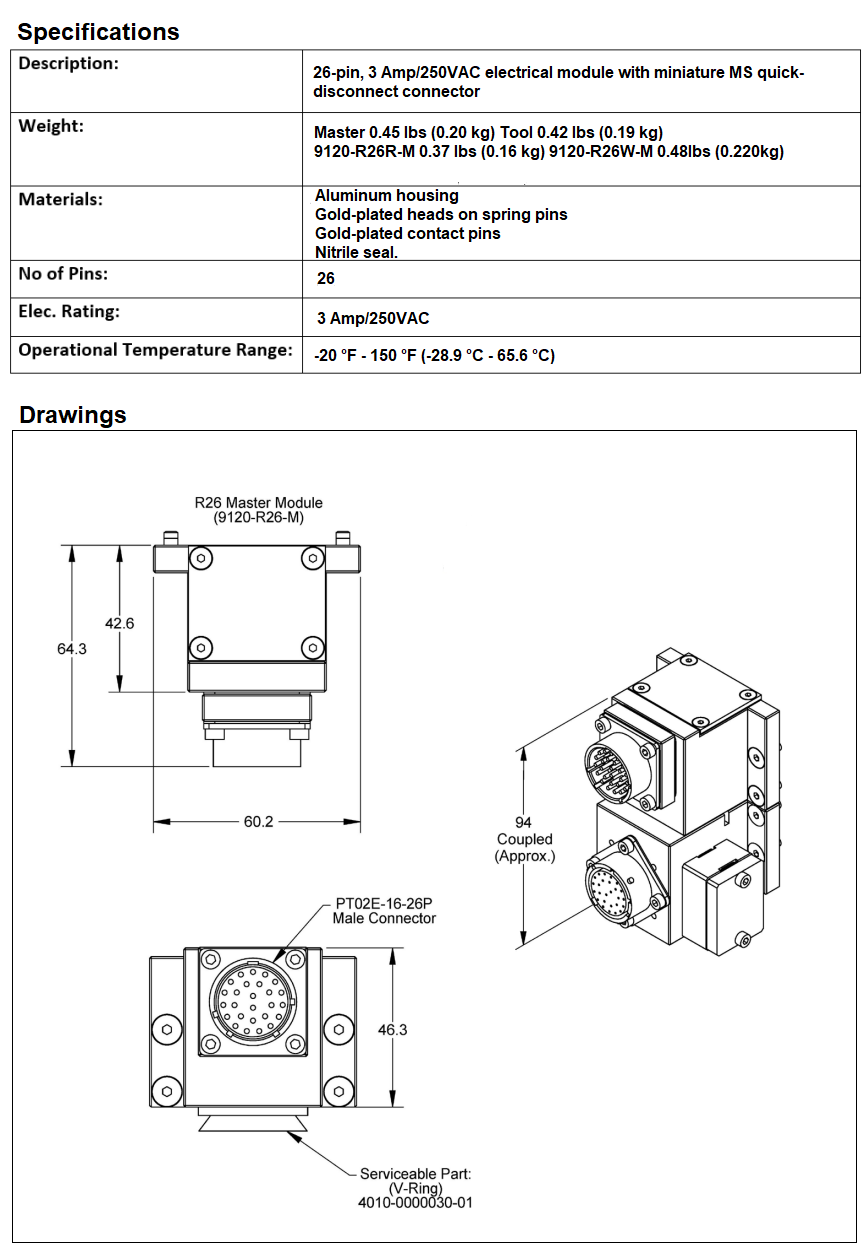

Specifications and Drawings

ATI: R26 Electrical Module - Master side 9120-R26-M

Product advantages
26 pins.
3 Amp/250VAC.
Easy-to-read Tool-ID display optional.
Small size with miniature MS quick-disconnect connectors.
No-Touch contacts on Master module.
Mates with G, R, S, and T Series modules.
Compatible QC Model

QC Model

Side

Notes

Adapter Plate Required

Flats B, C, D

No

No

Flats A, B, C

No

Flats A, B

No

Flats A, B, C, D

No

Flats A, B, C, D

No

Flats A, B

No

Flats A, B

No

Flats A, B

No

Flats A, B

No

Support Links
Drawing-R26-M.pdf
