Panasonic: AC Servo Motors (MDMA A4 Series)

MDMA-MINAS A4 Series (200V)


Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Power Supply Capacity (kVA): 1.8-11

  • Rated Output (W): 1000-7500

  • Rated Torque (N.m): 4.8-48

  • Momentary Max. Peak Torque (N.m): 14.4-119

  • Rated Current (Arms): 5.6-46.6

  • Max. Current (Ao-p): 24-165.0

  • Rated Rotational Speed (r/min): 1500-2000

  • Max. Rotational Speed (r/min): 3000

  • Static Friction Torque (N.m): 4.9-58.8

  • Engaging Time (ms): 80-150

  • Releasing Time (ms): 50-70

  • Exciting Current (DC) (A): 0.59-1.4

  • Releasing Voltage: DC2V or more

  • Exciting Voltage: DC 24 V± 10%

  • Mass without Break (kg): 6.8-41.0


Model No.: MDMA102P1, MDMA102S1, MDMA152P1, MDMA152S1, MDMA202P1, MDMA202S1, MDMA302P1, MDMA302S1, MDMA402P1, MDMA402S1, MDMA502P1, MDMA502S1, MDMA752P1, MDMA752S1


Catalog

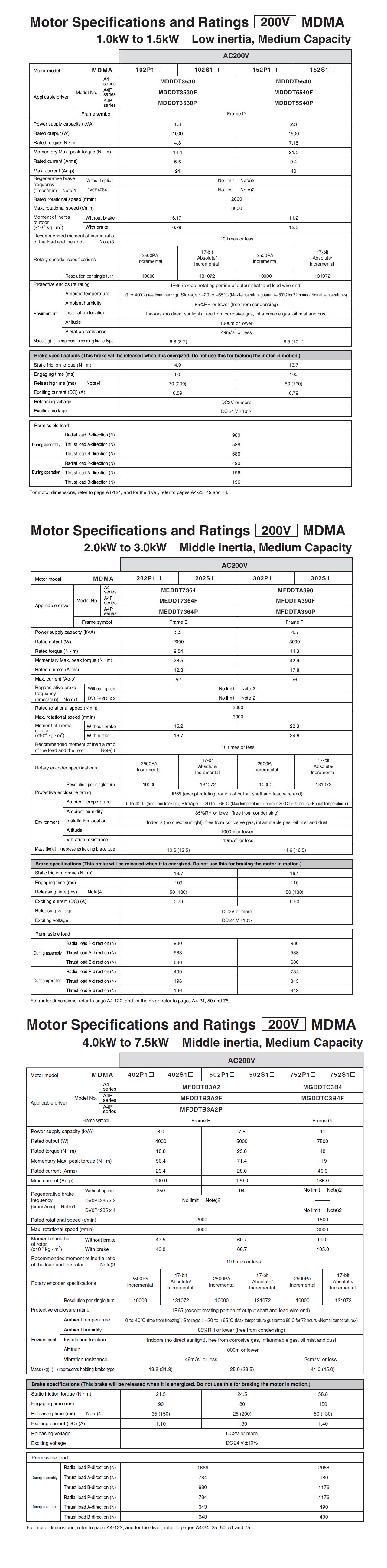

MDMA Specs

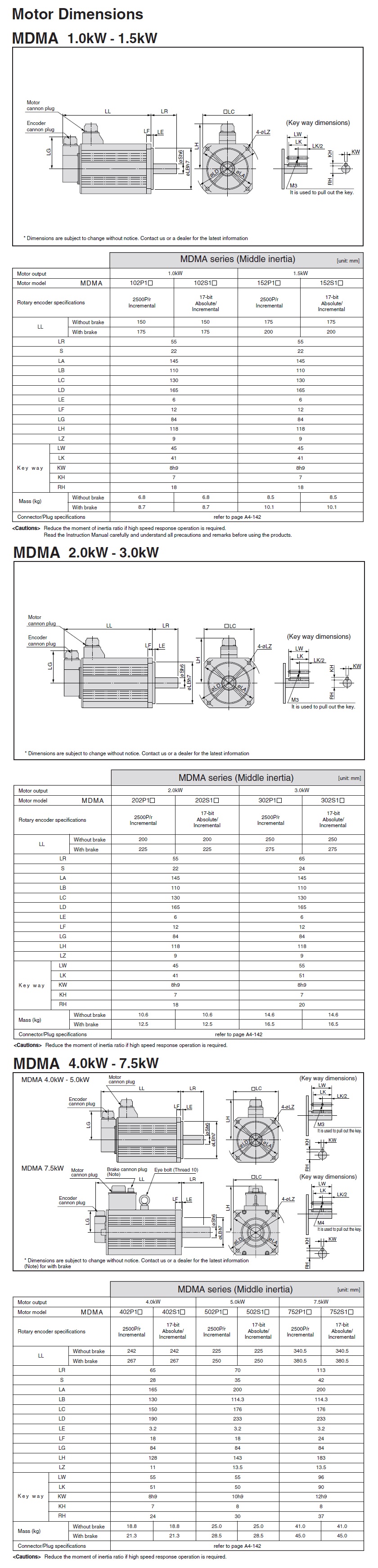

MDMA CAD

Wiring Diagram (1) (2)

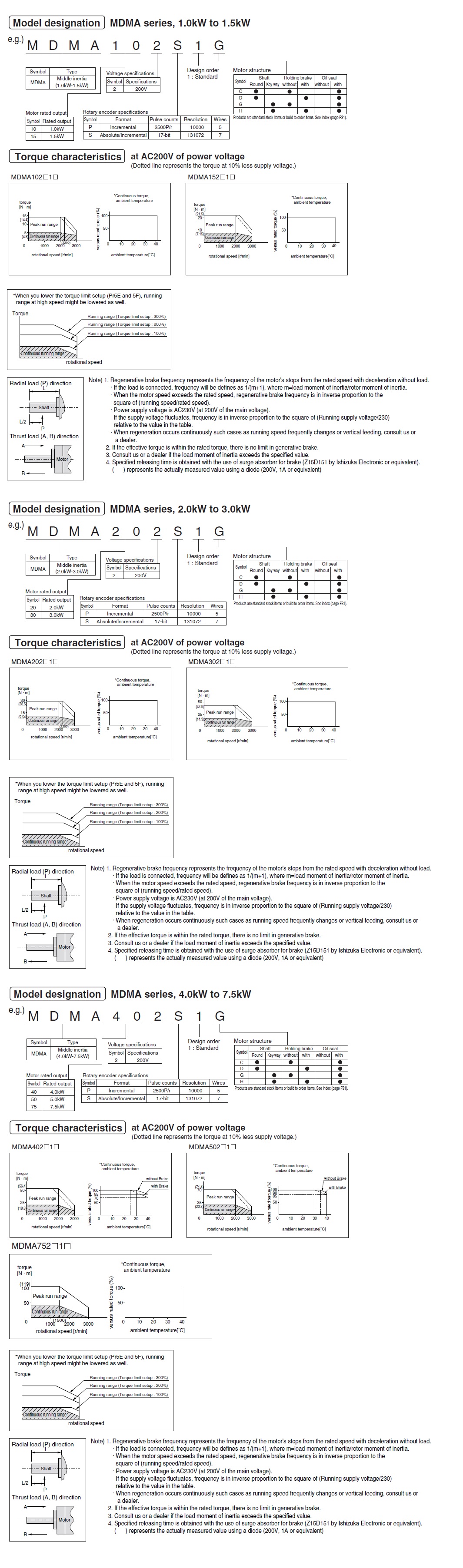

Buying Guide
