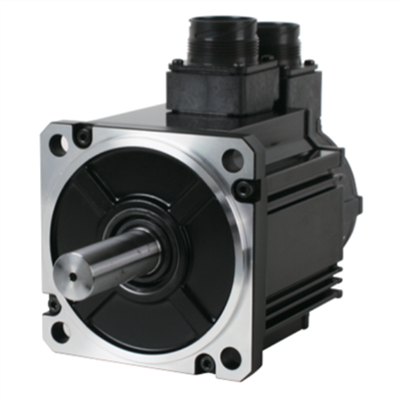

Panasonic: AC Servo Motors MINAS A6 Series MSMF302L1H6M - Low Inertia, 3.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MSMF302L1H6M - Low Inertia, 3.0 kW



Alternate View
Price : $1,398.70

Quantity in Stock:5

Availability: New stock in oversea warehouse
Order #: MSMF302L1H6M
Qty:

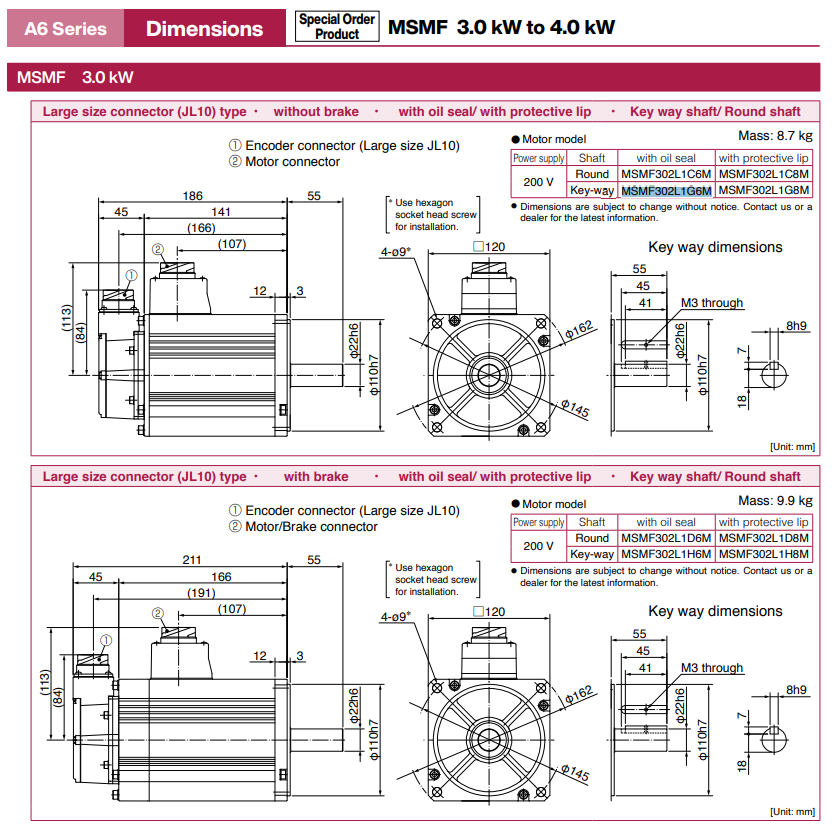

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MSMF302L1H6M - Low Inertia, 3.0 kW

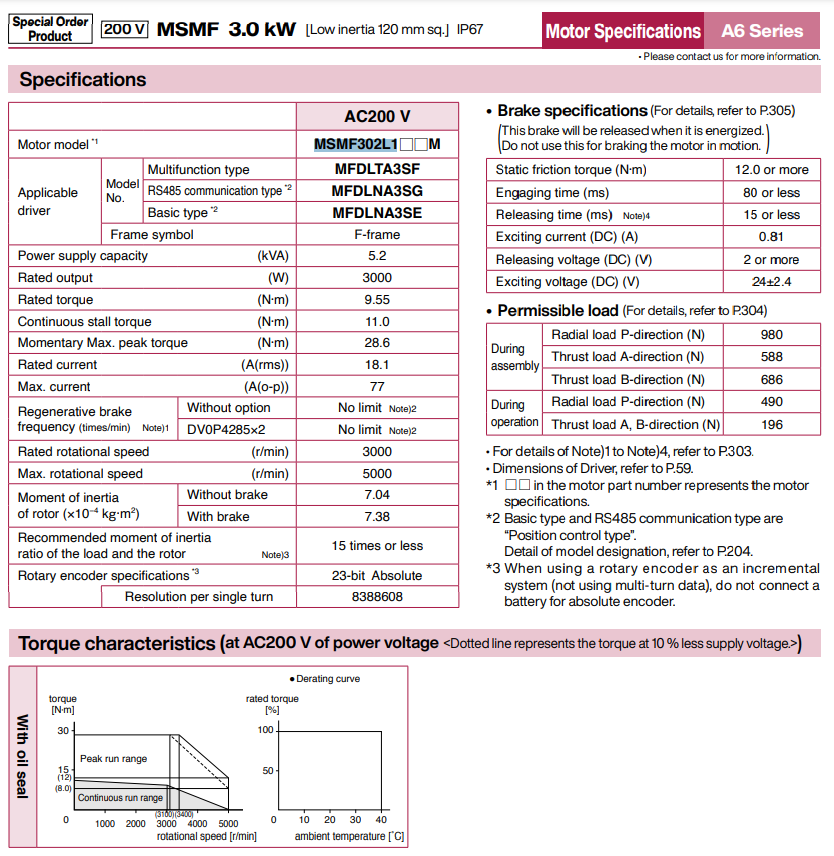

Motor Specifications:


Max. speed: 5000 r/min

Rated speed: 3000 r/min

Rated output: 3.0 kW

Rated torque: 9.55 Nm

Max. current: 77 A

Rated current: 18.1 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: with

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MFDLTA3SF

2) Basic Type: MFDLNA3SE

3) RS485 communication type: MFDLNA3SG
