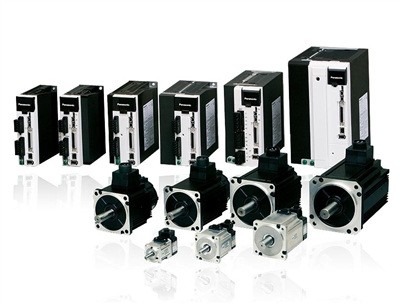

Panasonic: AC Servo Motors (MSME A5 Series)

MSME-MINAS A5 series (400V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-7.5

  • Rated Output (W): 1.0-5.0

  • Rated Torque (N.m): 3.18-15.9

  • Momentary Max. Peak Torque (N.m): 9.55-47.7

  • Rated Current (Arms): 3.3-12.0

  • Max. Current (Ao-p): 14-51

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 4500-5000

  • Static Friction Torque (N.m): 7.8-16.1 or more

  • Engaging Time (ms): 50-110 or less

  • Releasing Time (ms): 15-50 or less

  • Exciting Current (DC) (A): 0.81-0.90±10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Brake (kg): 3.5-1414


Model No.: MSME084GCC, MSME084GCD, MSME084GCG, MSME084GCH, MSME104GCC, MSME104GCD, MSME104GCG, MSME104GCH, MSME154GCC, MSME154GCD, MSME154GCG, MSME154GCH, MSME204G1G, MSME204GCC, MSME204GCD, MSME204GCG, MSME204GCH, MSME304GCC, MSME304GCD, MSME304GCG, MSME304GCH, MSME404GCC, MSME404GCD, MSME404GCG, MSME404GCH, MSME504GCC, MSME504GCD, MSME504GCG, MSME504GCH


Catalog

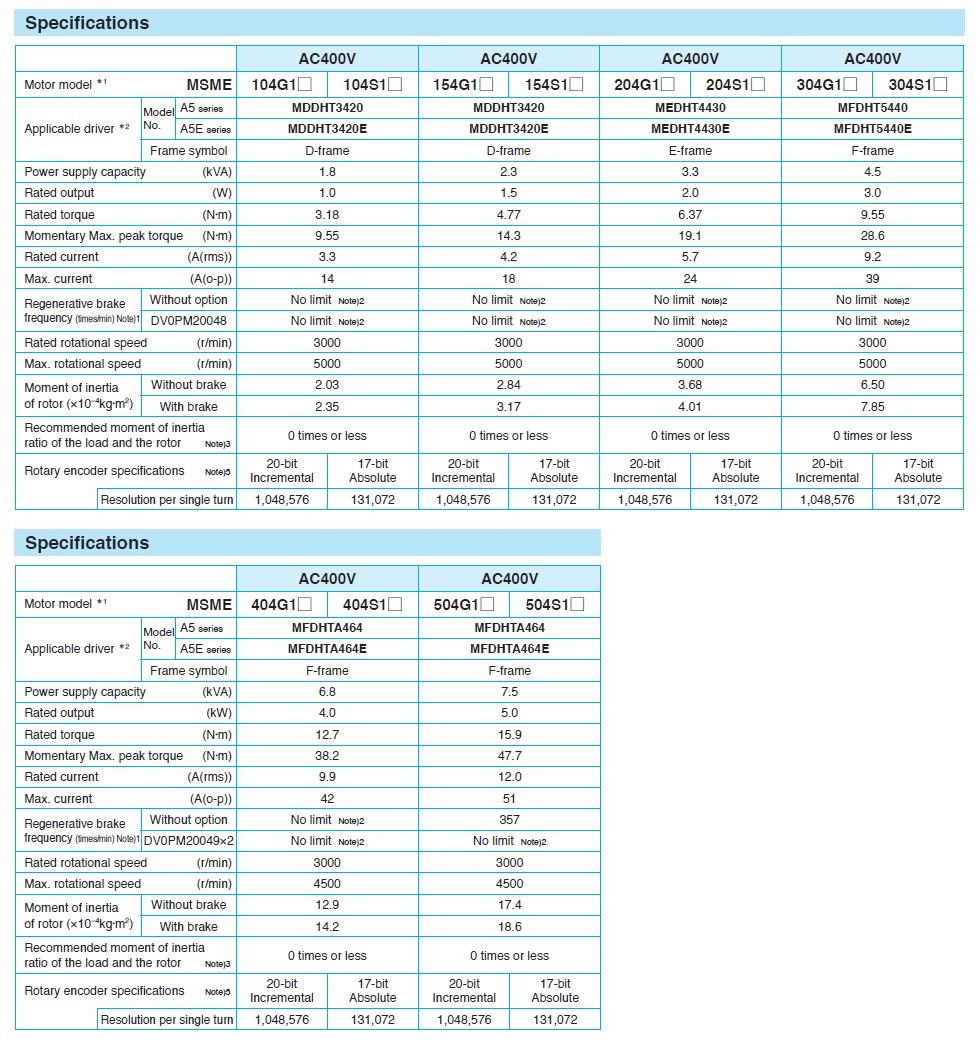

MSME Specs

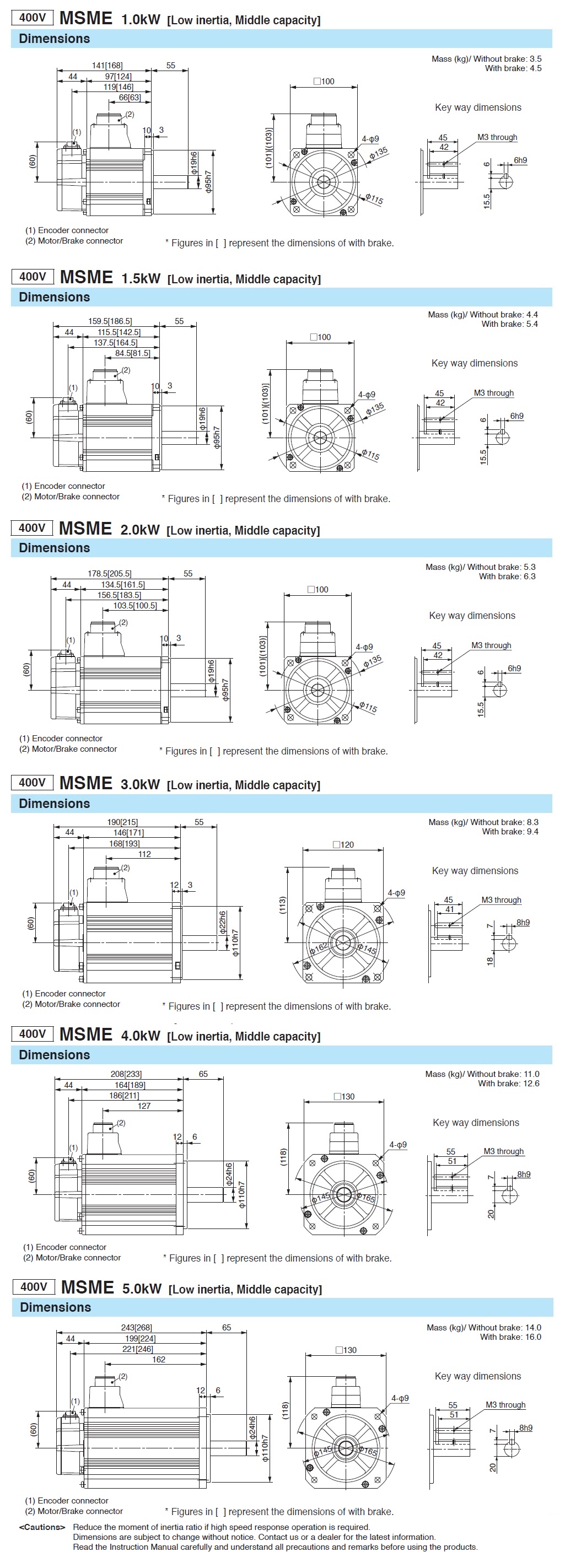

MSME CAD

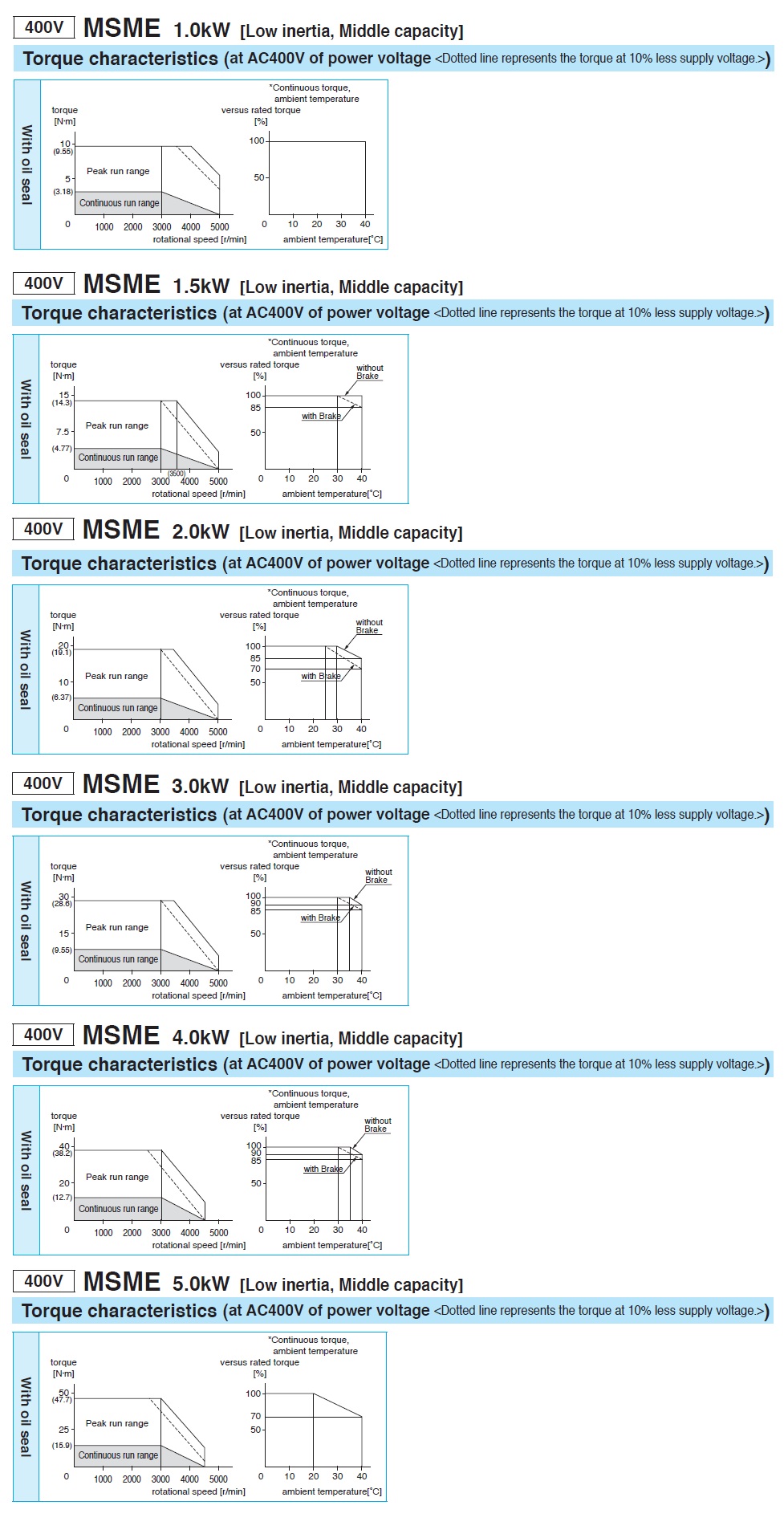

Torque Curves
