Panasonic: AC Servo Motors MINAS A6 Series MHMF102L1G6M - High Inertia, 1.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MHMF102L1G6M - High Inertia, 1.0kW



Alternate View
Price : $785.00

Quantity in Stock:50

Availability: New stock in oversea warehouse
Order #: MHMF102L1G6M
Qty:

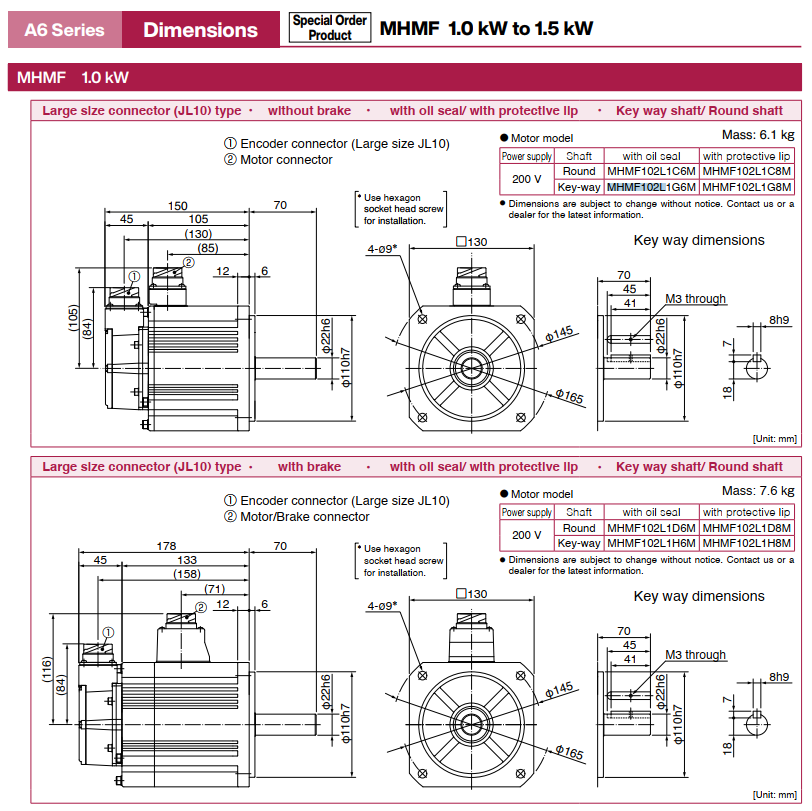

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MHMF102L1G6M - High Inertia, 1.0 kW

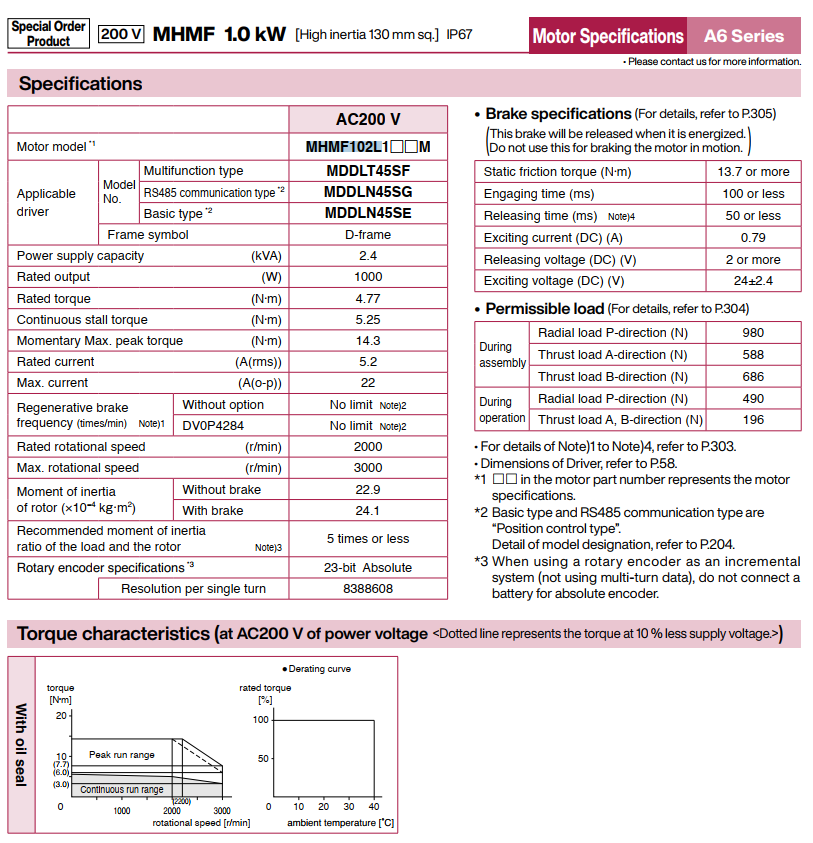

Motor Specifications:


Max. speed: 3000 r/min

Rated speed: 2000 r/min

Rated output: 1.0 kW

Rated torque: 4.77 Nm

Max. current: 22 A

Rated current: 5.2 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MDDLT45SF

2) Basic Type: MDDLN45SE

3) RS485 communication type: MDDLN45SG
