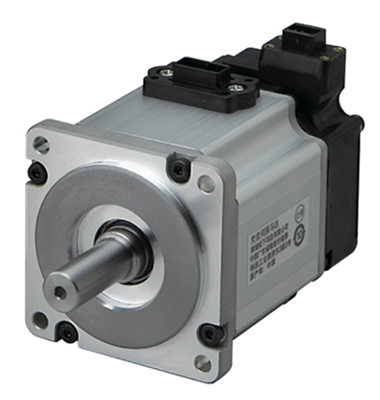

Panasonic: AC Servo Motors (MSME A5 Series) MSME042G1U
Panasonic: AC Servo Motors (MSME A5 Series) MSME042G1U


Price : $1,138.00


Availability: 1-3 weeks
Order #: MSME042G1U
Qty:

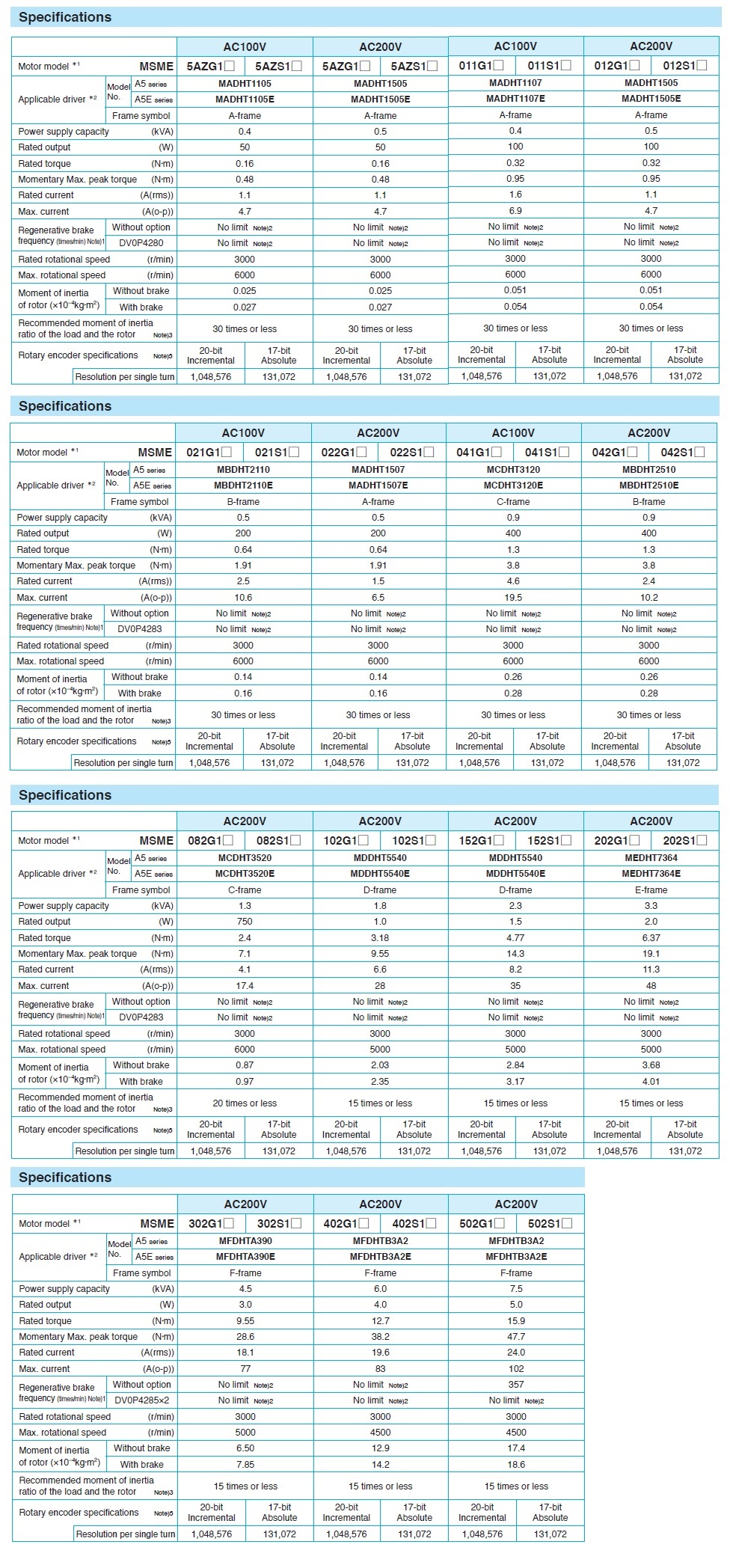

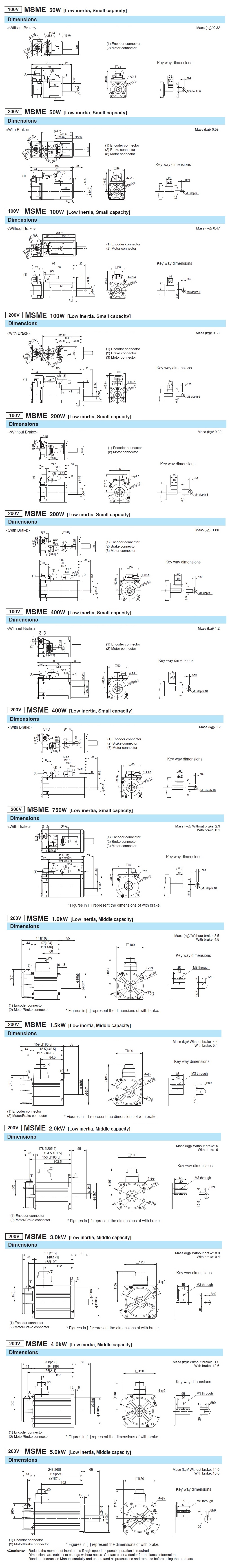

Description Specifications and Drawings


Panasonic: AC Servo Motors (MSME A5 Series) MSME042G1U

MSME-MINAS A5 series (100-200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 0.4-7.5

  • Rated Output (W): 1.5-750

  • Rated Torque (N.m): 0.16-15.9

  • Momentary Max. Peak Torque (N.m): 0.48-47.7

  • Rated Current (Arms): 1.1-24.0

  • Max. Current (Ao-p): 4.7-102

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 6000

  • Static Friction Torque (N.m): 0.29-16.1 or more

  • Engaging Time (ms): 35-110 or less

  • Releasing Time (ms): 20-50 or less

  • Exciting Current (DC) (A): 0.3-0.90± 10%

  • Releasing Voltage (DC) (V): 1-2 or more

  • Exciting Voltage (DC) (V): 24 ± 1.2-2.4%

  • Mass without Brake (kg): 0.32-14

Part Number

MSME042G1U

Product

Servo Motor

Details

Low inertia, Connector type, IP67

Product Name

MINAS A5 Family Servo Motor (Discontinued)

Features

10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz
