ENGEL: High Power PMDC Motors (GNM 5440E Series)

The GNM series stands for ENGEL DC servo motors with a permanent magnetic field. As voltage variants for the standard version ENGEL offers 12V, 24V and 42V. The nominal torque ranges in continuous operation S1 reach up to 1.6 Nm without gear box. Depending on the application, the motors can be designed with protection class IP21, IP41 or IP54. This series is particularly service-friendly due to carbon brush windows.

PMDC Motors are robustly engineered with a brushed 2-pole DC motors and permanent magnetic fields. Their industrial design, high variability and magnetic field allows for maximum efficiency.

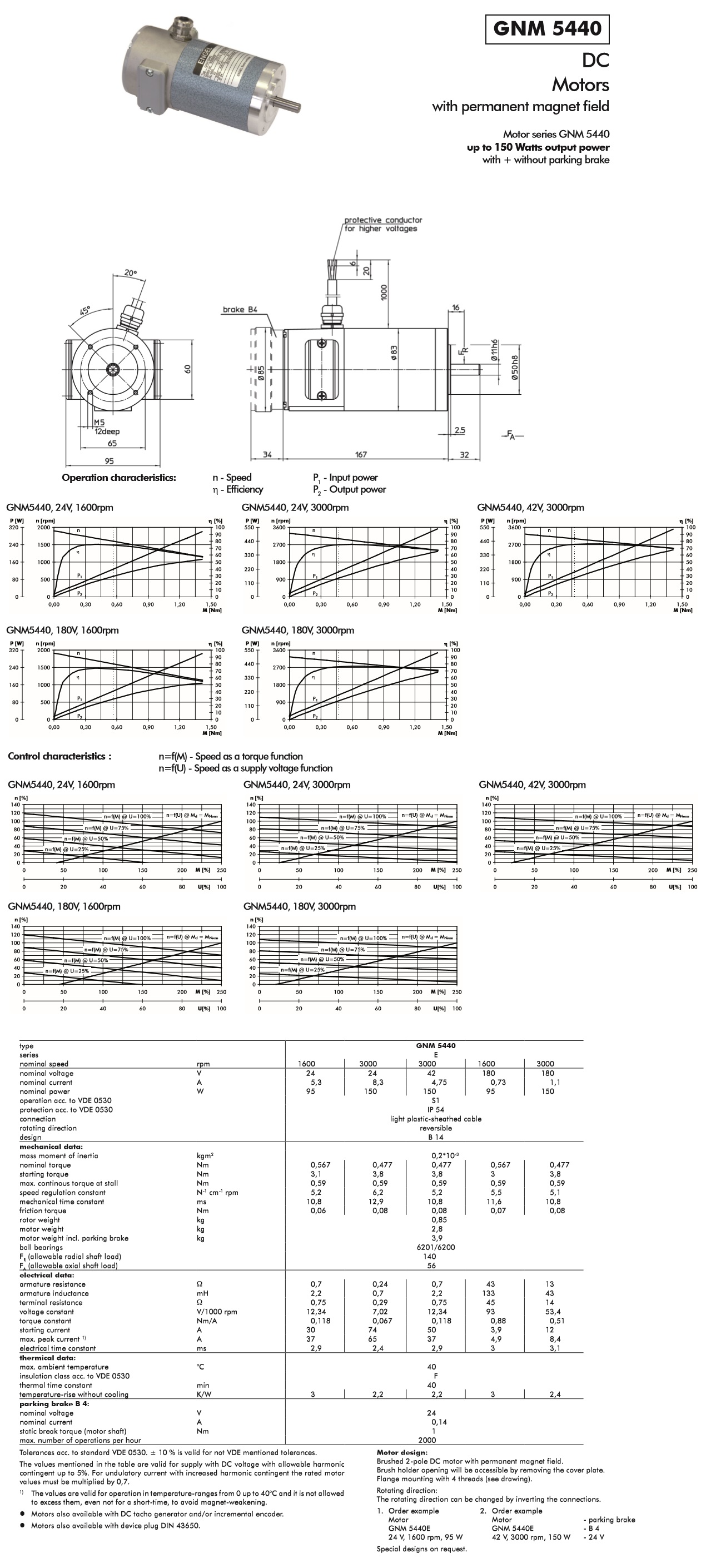

Specifications:
